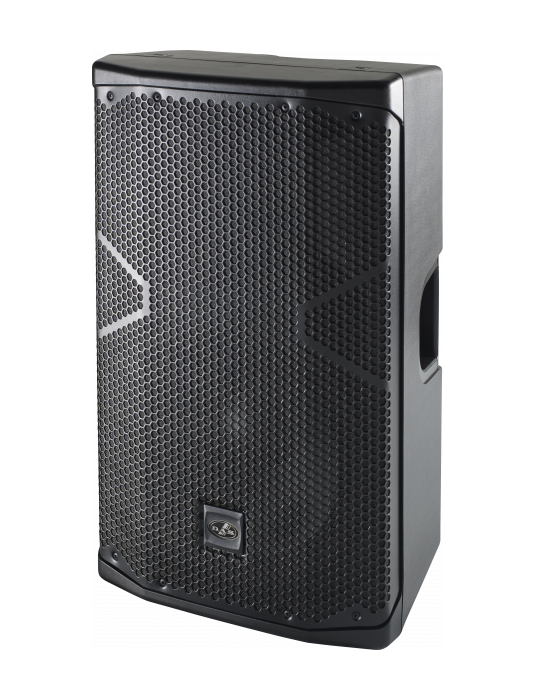

The ALTEA-712 passive system allows users to choose the powering option they prefer and is designed for use with external amplification and outboard DSP. This system benefits from the high-performance transducers include the DAS 12F loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass.
High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1″ exit providing exceptional performance and smooth reproduction.
| Performance | |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500 W |
| Peak Power Handling | 2000 W |
| On-axis Sensitivity 1W/1 m | 98 dB SPL |
| Maximum Peak SPL at 1 m | 131 dB |
| Recommended Amplifier | PA-1500 |
| Recommended Processor | DSP-226 |
| Connectors | |

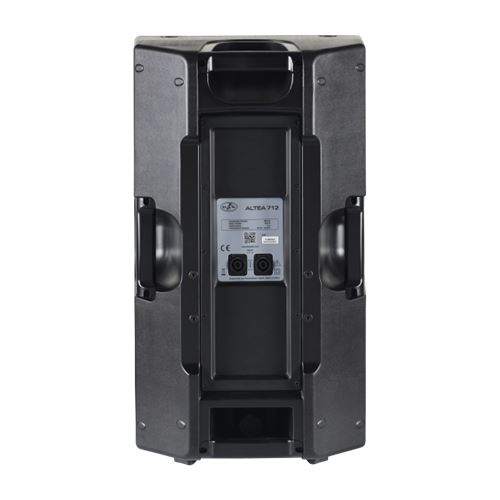

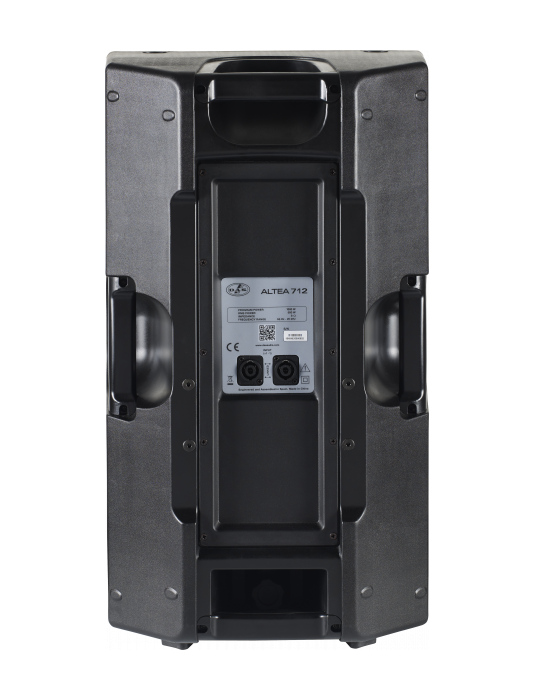

| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Depth | 350 mm (13,8 in) |
| Dimensions ( H x W x D ) | 655 x 380 x 350 mm |
| 25,8 x 15,0 x 13,8 in | |
| Net Weight | 16,5 kg ( 36,4 lb ) |
| Components | |
| LF Driver | 12F |
| HF Driver | M-28 |
