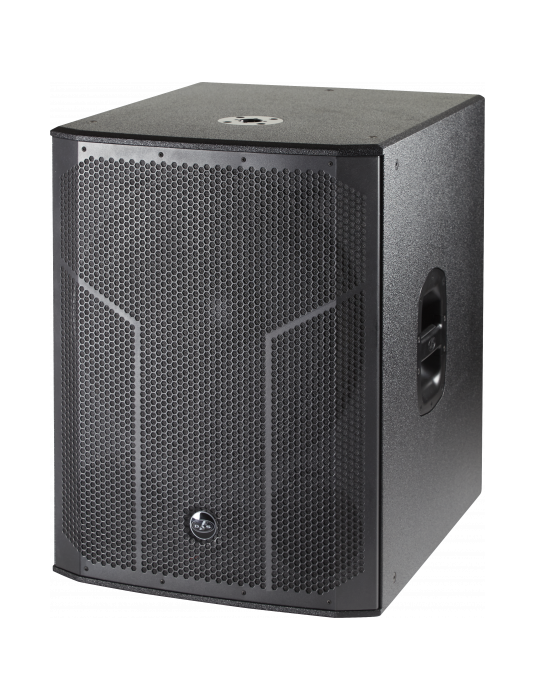

ACTION-S18A is a high-power active subwoofer system that incorporates a 1500 Wpeak amplifier and single 18FW4 speaker with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that that works to reduce the effects of voice coil heating.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
| Performance | |
| Frequency Range (-10 dB) | 35 Hz -125 Hz (variable LPF) |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 750 W |
| Nominal Amplifier Power (peak) | 1500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrol™ |
| Current Draw 230 V / 115 V | 1.4 A/2.8 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 720 x 545 x 660 mm |
| 28,3 x 21,5 x 26,0 in | |
| Net Weight | 42,5 kg ( 93,7 lb ) |
| Components | |
| LF Driver | 18FW4 |
