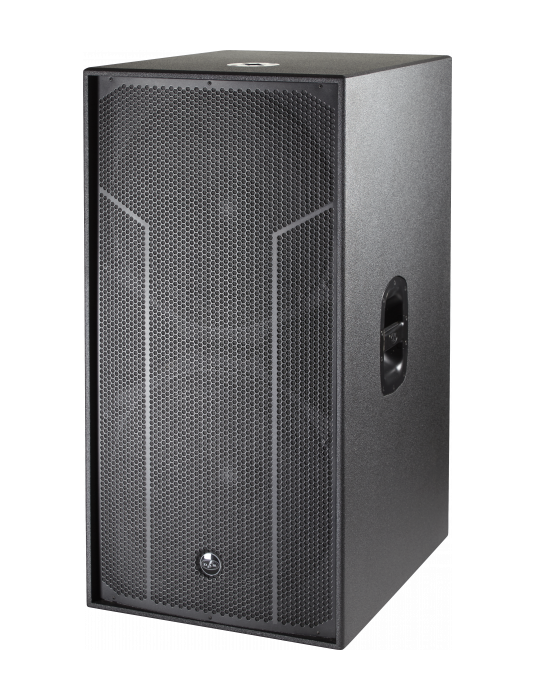

ACTION-S218 is a high-power passive subwoofer system that incorporates two 18FW speakers with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating, improving the system’s overall performance as a result.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
| Performance | |
| Frequency Range (-10 dB) | 29 Hz – 160 Hz |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 1200 W |
| Peak Power Handling | 4800 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 139 dB |
| Recommended Amplifier | PA-2700 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 675 mm (26,6 in) |
| Dimensions ( H x W x D ) | 1.070 x 545 x 675 mm |
| 42,1 x 21,5 x 26,6 in | |
| Net Weight | 61,0 kg ( 134,2 lb ) |
| Components | |
| LF Driver | 18FW |
