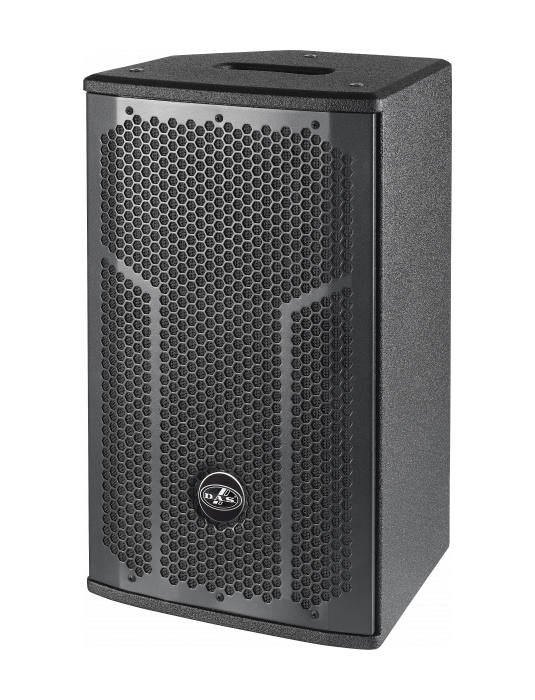

An unparalleled choice when compact size and weight matter, ACTION-508 is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. And its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
The new 8GV speaker has 150W of power and enhanced excursion capacity for much lower distortion coupled with a higher SPL.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 150 W |
| Peak Power Handling | 600 W |
| On-axis Sensitivity 1W/1 m | 94 dB SPL |
| Maximum Peak SPL at 1 m | 124 dB |
| Recommended Amplifier | PA-500 |
| Recommended Processor | DSP-226 |
| Connectors | |

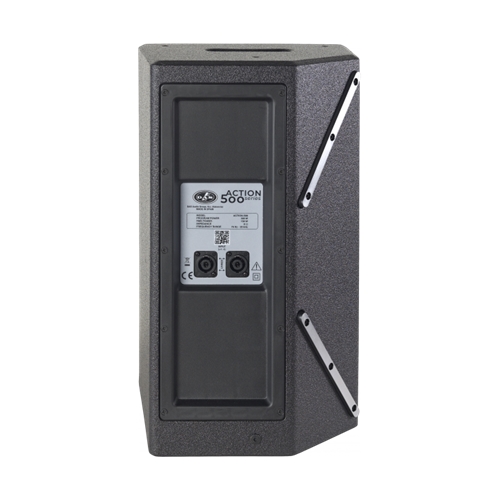

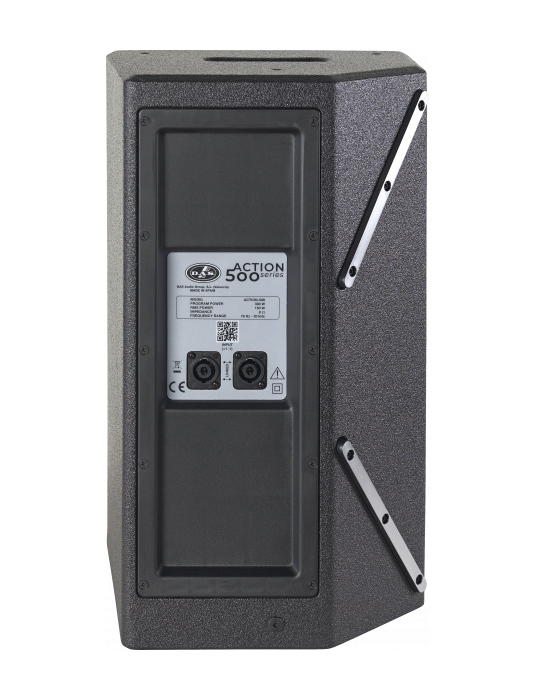

| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 260 mm (10,2 in) |
| Dimensions ( H x W x D ) | 485 x 285 x 260 mm |
| 19,1 x 11,2 x 10,2 in | |
| Net Weight | 10,5 kg ( 23,1 lb ) |
| Components | |
| LF Driver | 8GV |
| HF Driver | M-34 |
| Horn/Waveguide | BCT-96 |
