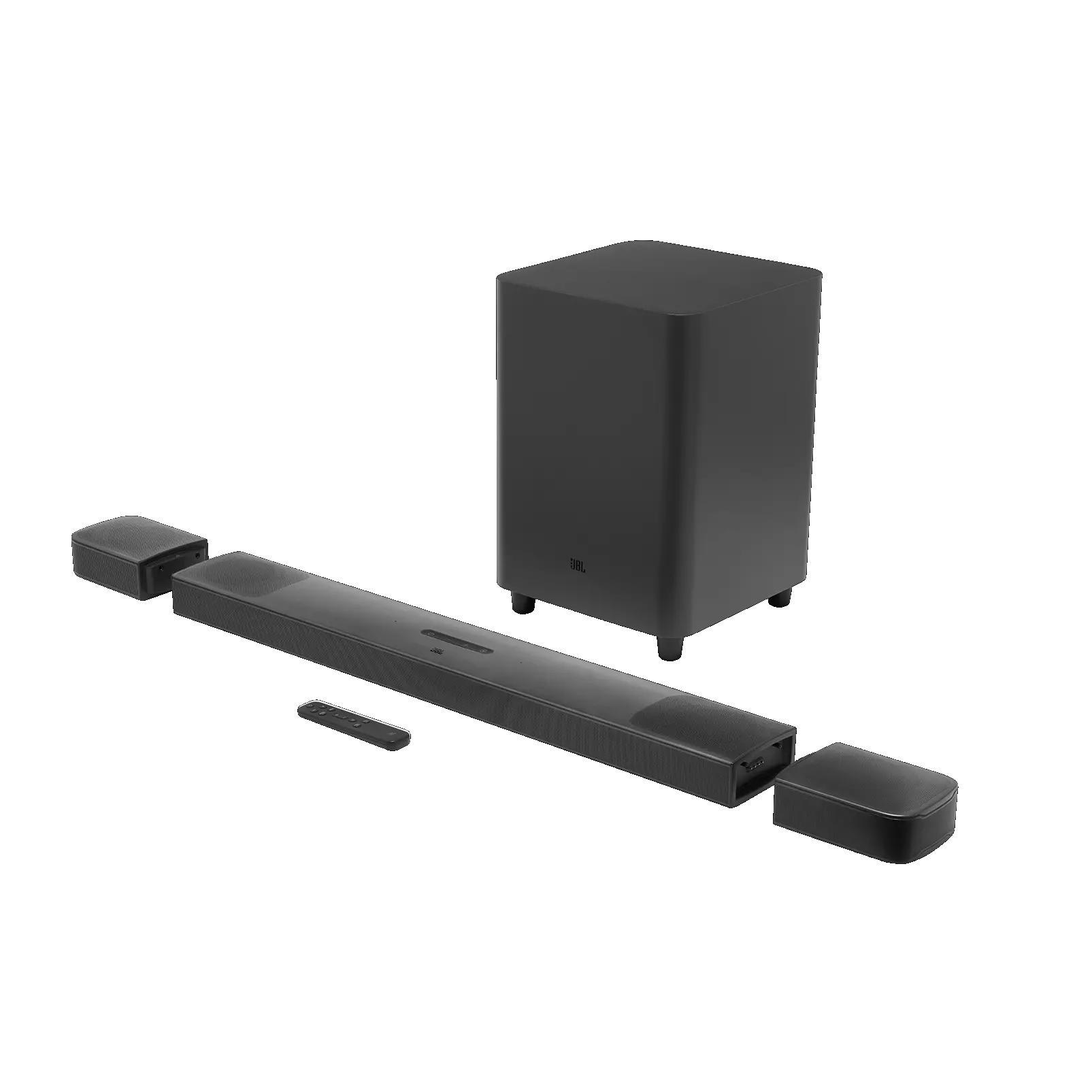

JBL Consumer | BAR913DBLKAS | JBL 9.1 Channel Soundbar System with Surround Speaker & Dolby Atmos®

Feel like you're right in the scene with 3D surround sound

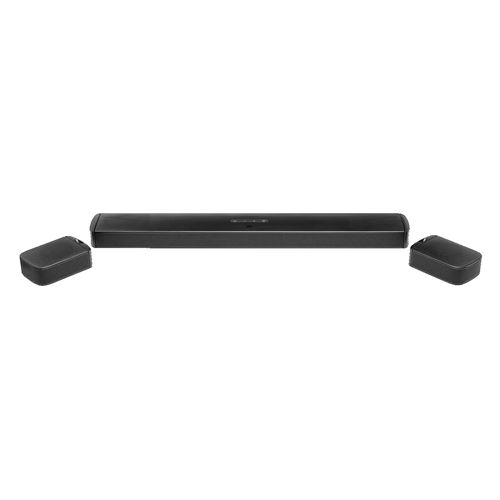

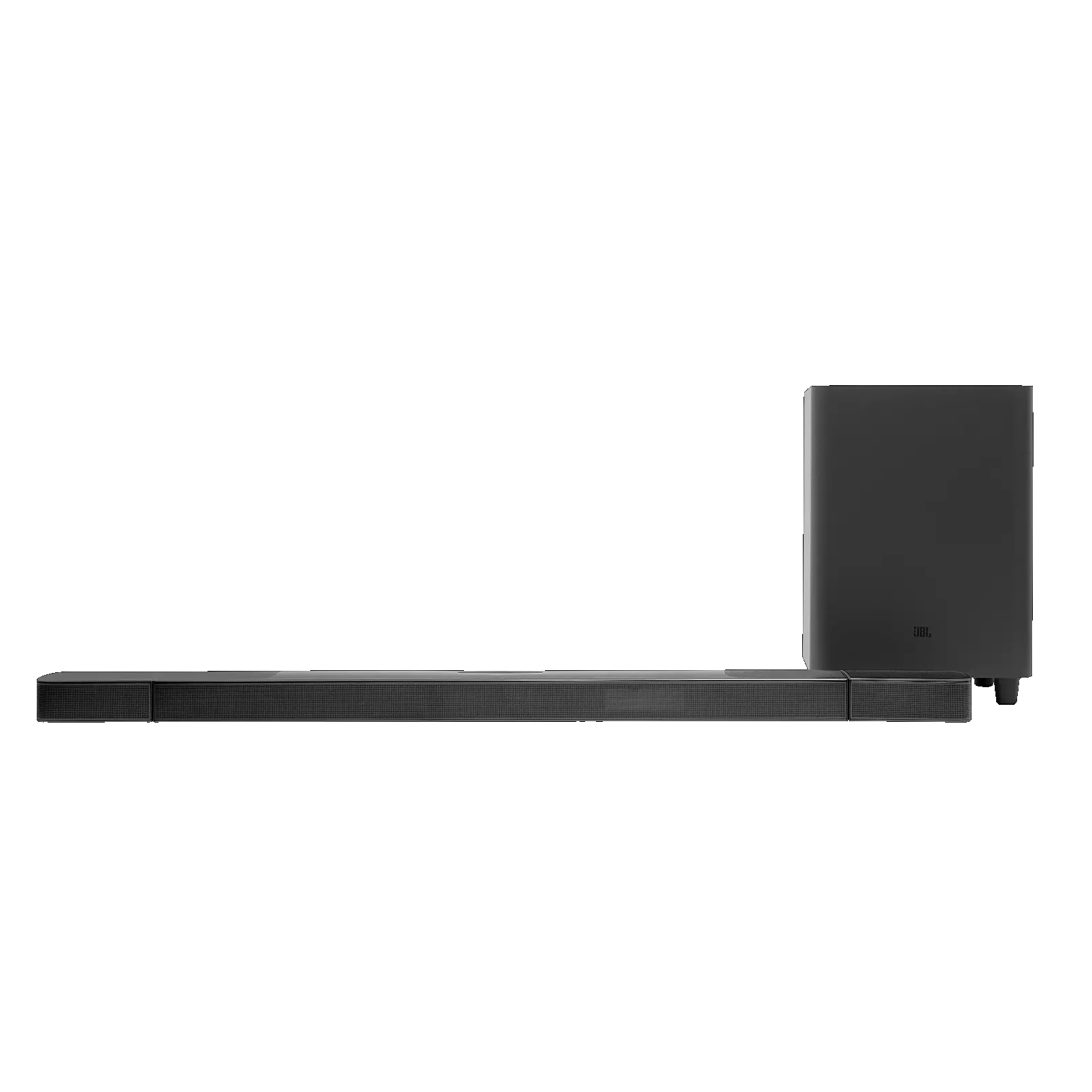

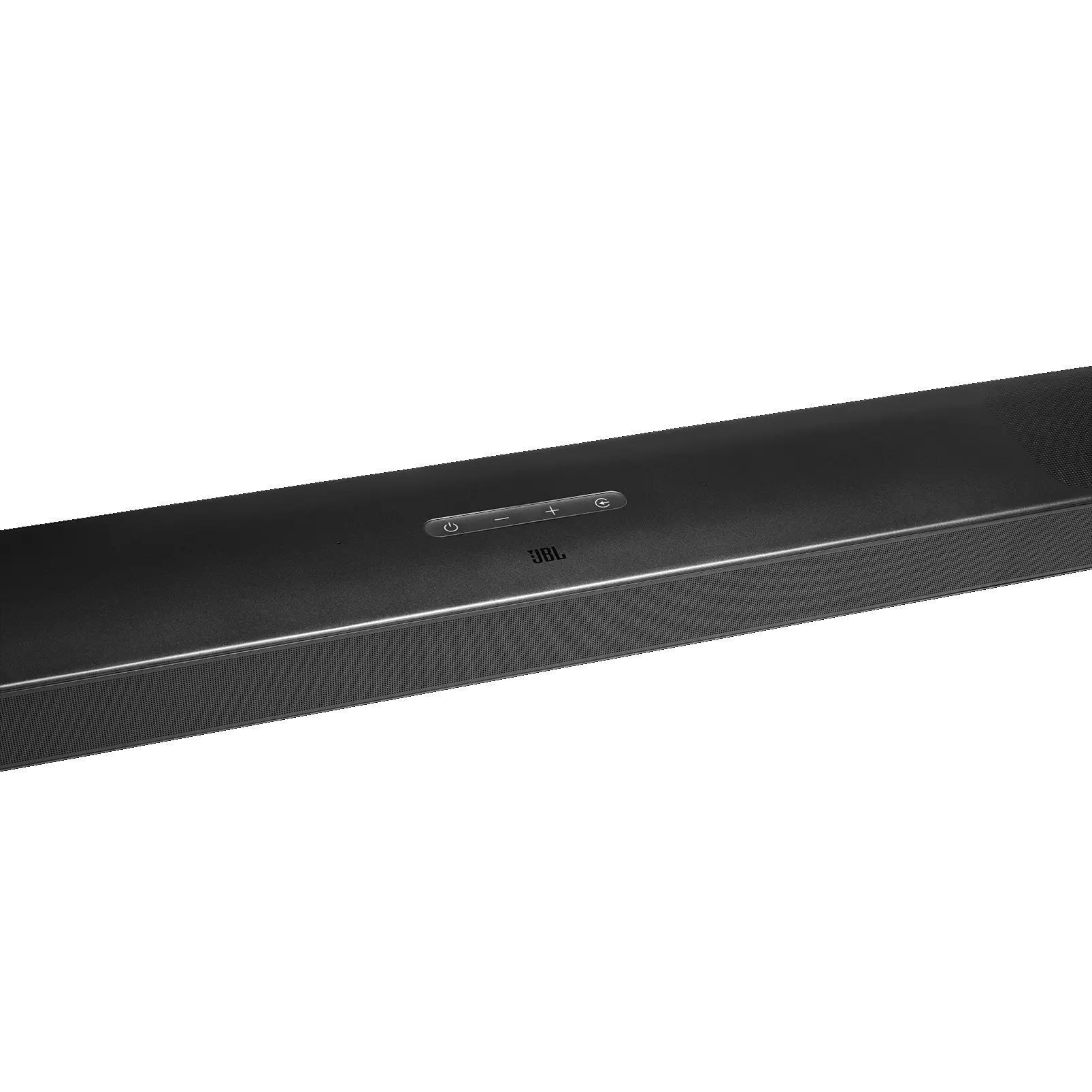

The JBL Bar 9.1 soundbar brings audio experience of a movie theater into your home with two detachable surround speakers and the added punch of Dolby Atmos® and DTS:X™ 3D sound. With 820 watts of total system power, you can enjoy every Oscar-worthy performance through powerful, crystal-clear audio. Turn up the 10’’ subwoofer for pulse-pounding bass or turn it down and relax with Chromecast and AirPlay music streaming. Immerse yourself in the latest blockbuster or re-live your favorite movie or sport scenes. The most incredible home cinema sound experience is here.

The Ultimate 3D sound experience

Upgrade your viewing or gaming experience from ordinary to extraordinary. Built-in Dolby Atmos®, DTS:X™ and four upfiring speakers bounce sound up to the ceiling back down to you for an awesome, true 3D sound experience.

Real surround sound in a second

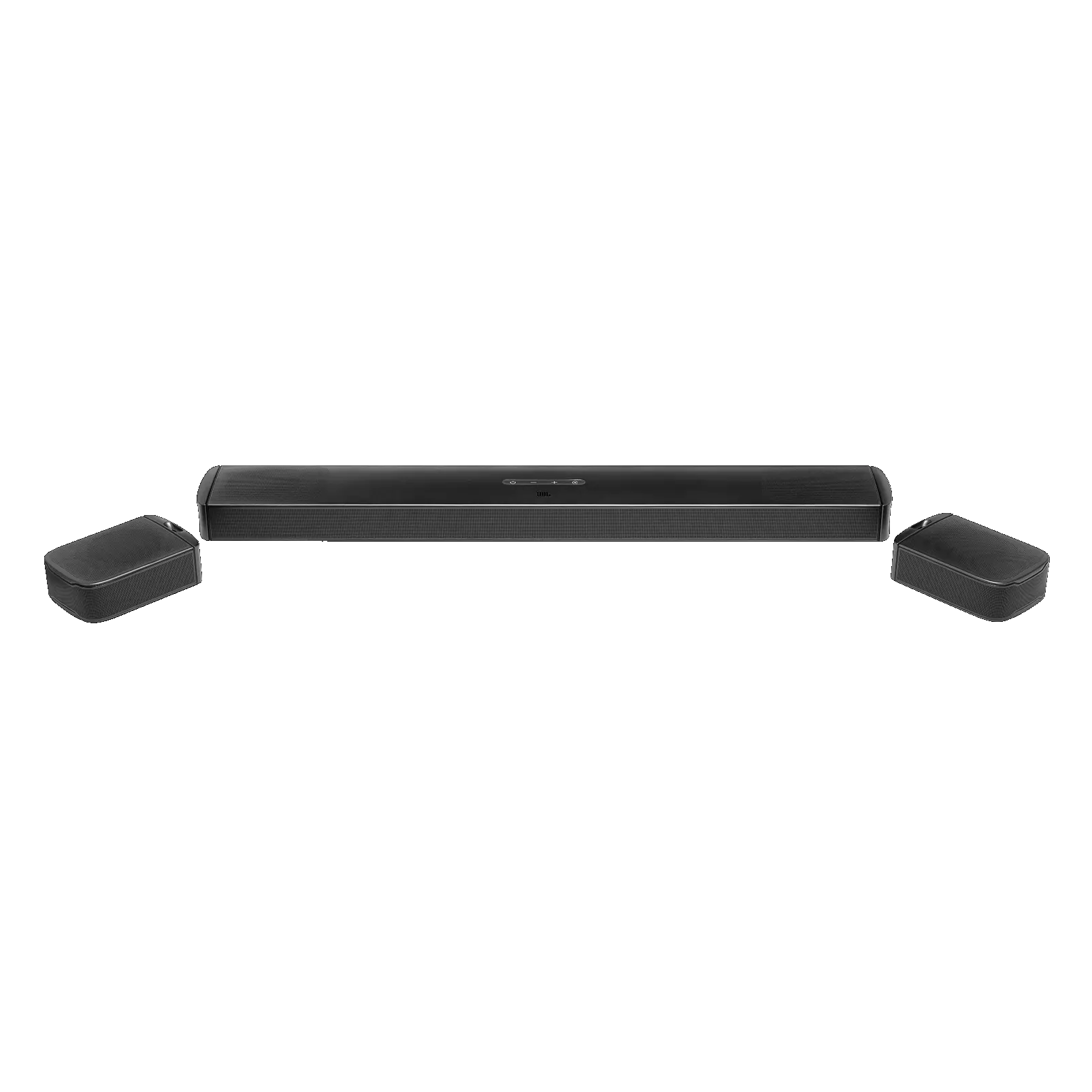

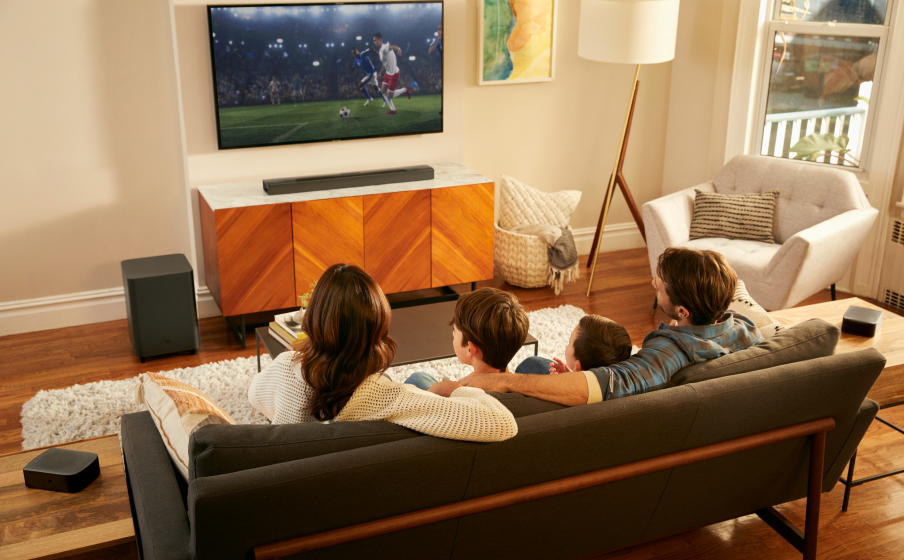

Instantly enjoy a true, cinematic 9.1 surround experience. Simply place the two detachable surround speakers behind you. No extra wires, no extra power connections so no extra hassle.

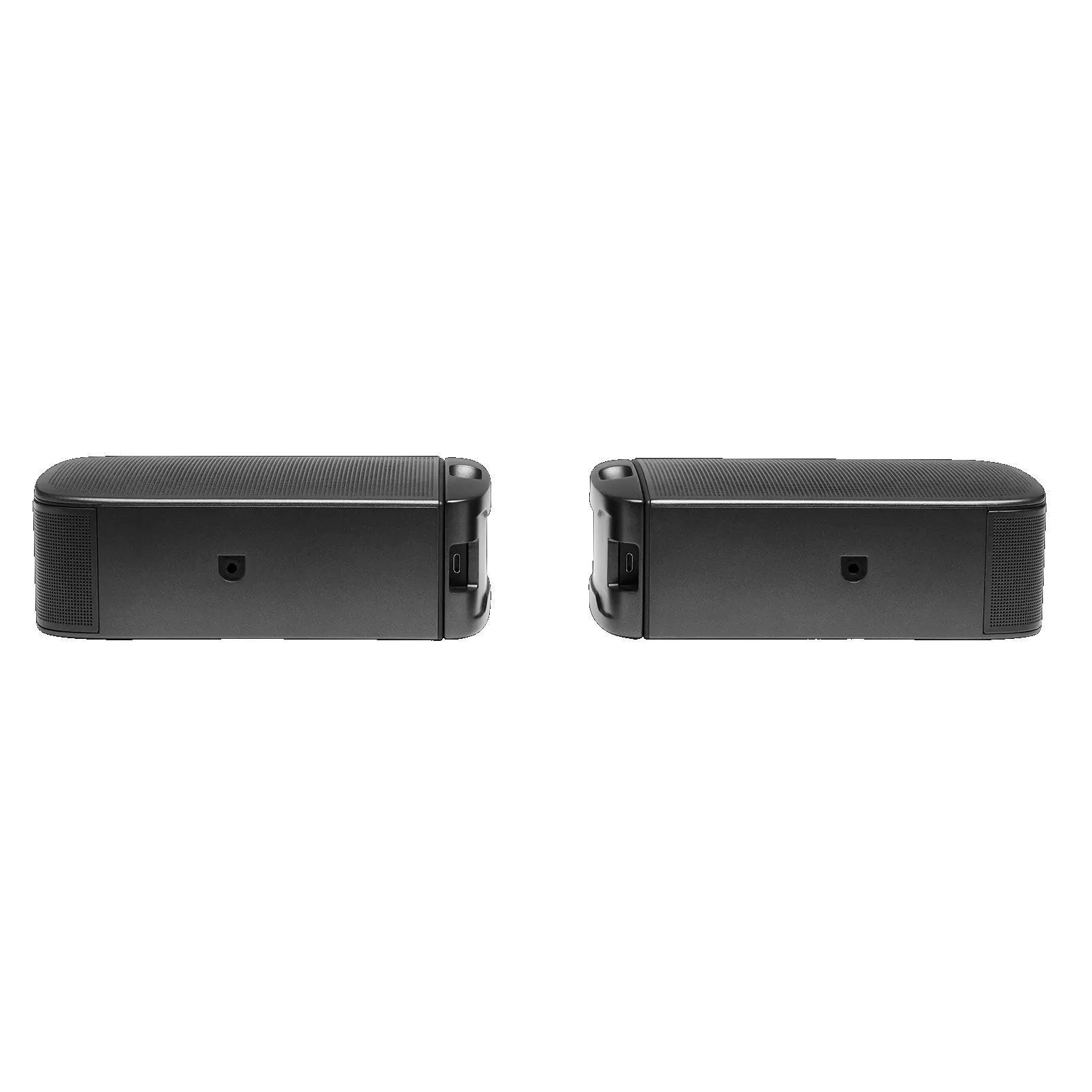

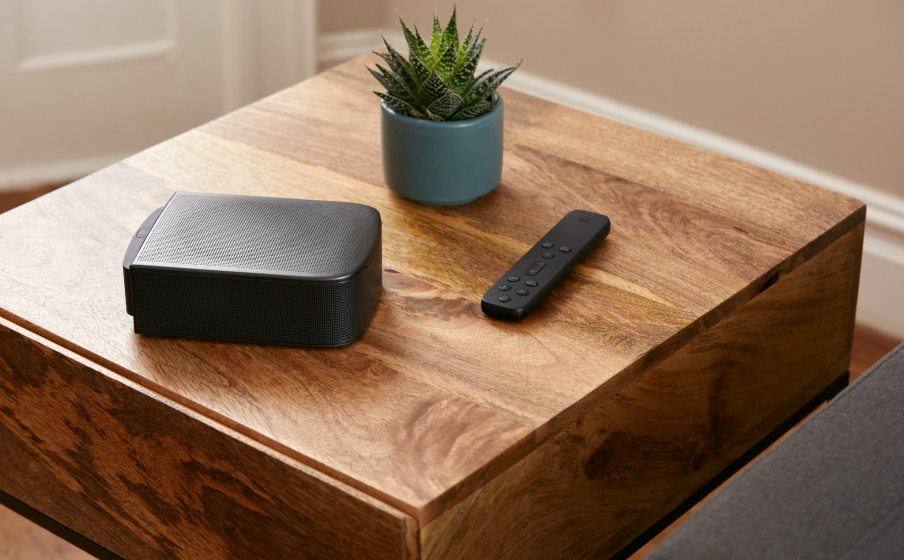

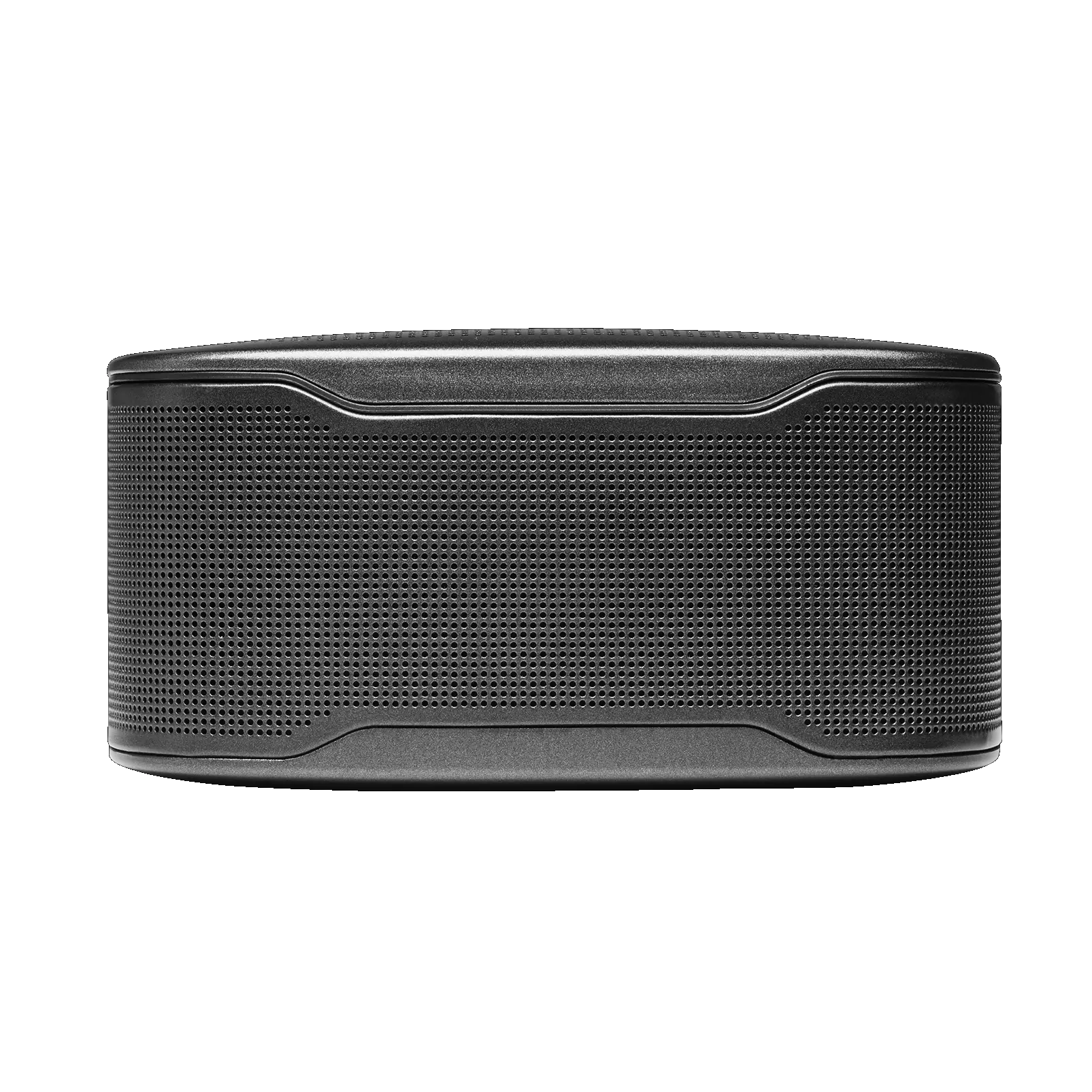

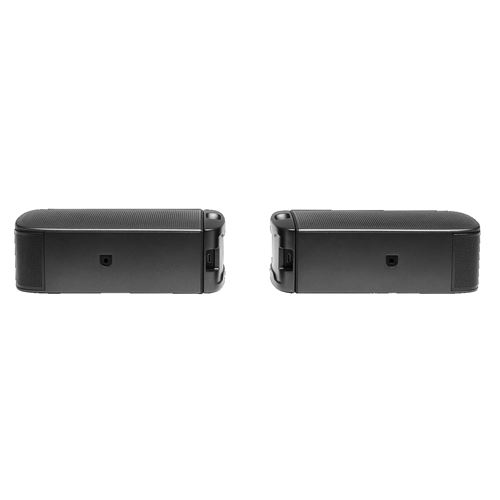

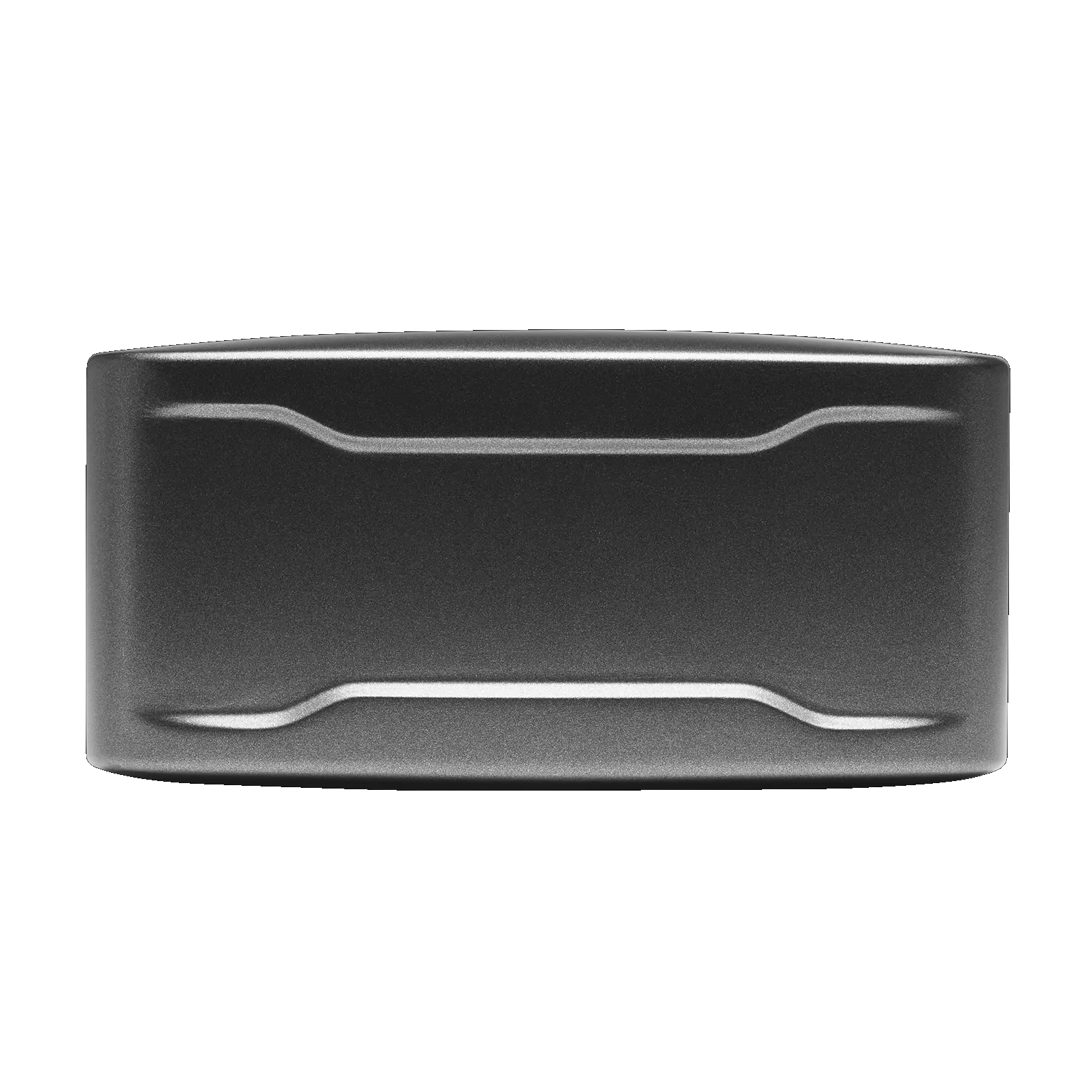

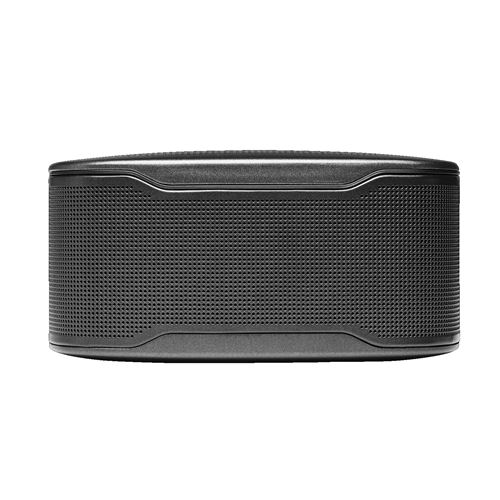

Detachable speakers that go anywhere

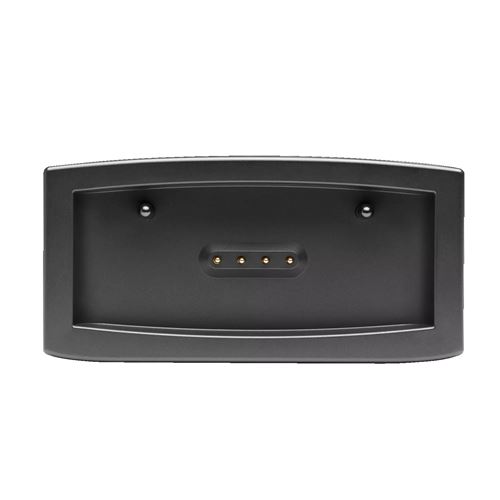

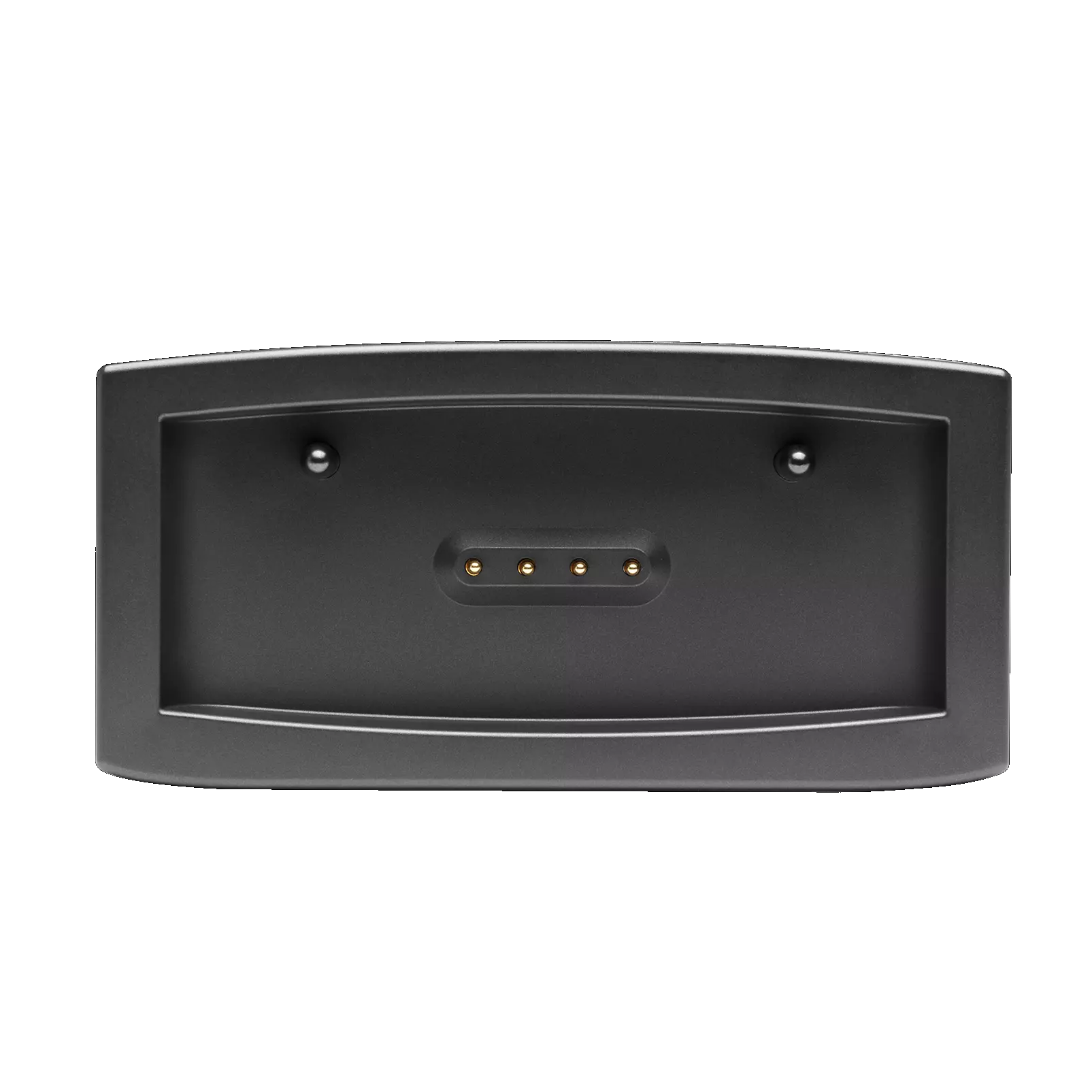

Built-in batteries mean audio freedom. Place the two detachable surround speakers anywhere in your room to enjoy an incredible audio experience. After up to 10 hours of playback, simply dock them to the soundbar to recharge.

What's in the box?

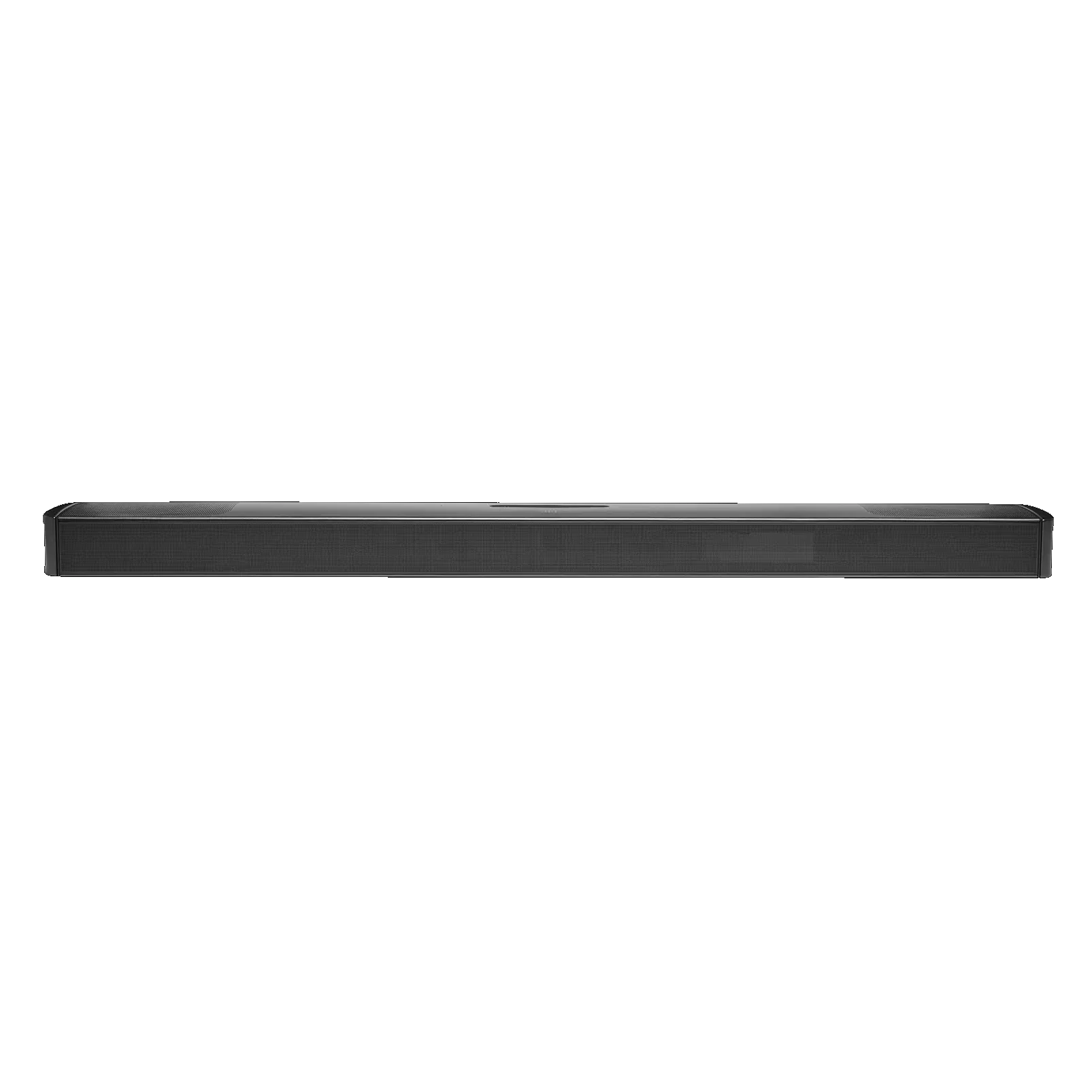

1x Main Soundbar
2x Detachable wireless surround speakers
1x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on region SKUs)
HDMI cable x1
2 x L-shape Wall-mount bracket (Main Bar) + 2 x U-shape Wall-mount bracket (for Surround Speakers) kit with screws
Quick start guide
Warranty card
Safety sheet

General Specifications

5.1.4 channelYes

Power supply100 - 240VAC, ~ 50/60Hz

Battery charge time3 hours

Total speaker power output (Max. @THD 1%)820 W

Main Soundbar output power (Max. @THD 1%)400

Surround speakers output power (Max. @THD 1%); 2 x 60WYes

Subwoofer output power (Max. @THD 1%); 300Yes

Soundbar transducer4×racetrack drivers + 2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter

Surround transducer (per piece)up-firing full-range driver + 0.75” (20mm) tweeter

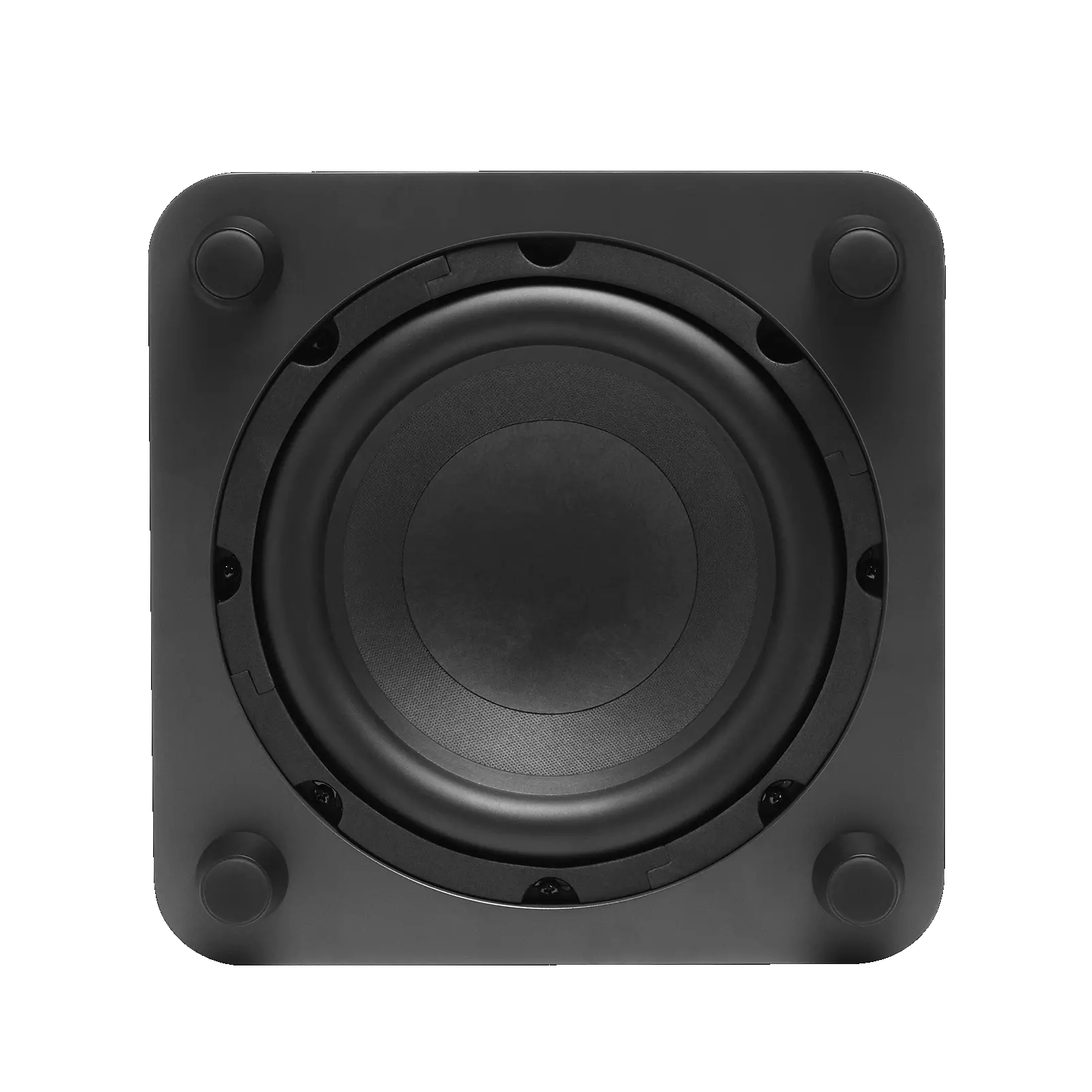

Subwoofer transducer10"

Operating temperature0°C - 45°C

Standby for Soundbar (when all wireless connections are deactivated)< 0.5 W

Networked standby (Soundbar)< 6.0 W

Networked standby (Subwoofer)< 2.0 W

Time to standby<10 minutes

This equipment complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. The Soundbar unit is considered as networked equipment with high network availability (HiNA equipment and equipment with HiNA functionality) as it provides wireless network access point for two wireless Surround speakers and one wireless Subwoofer.Yes

Audio Specifications

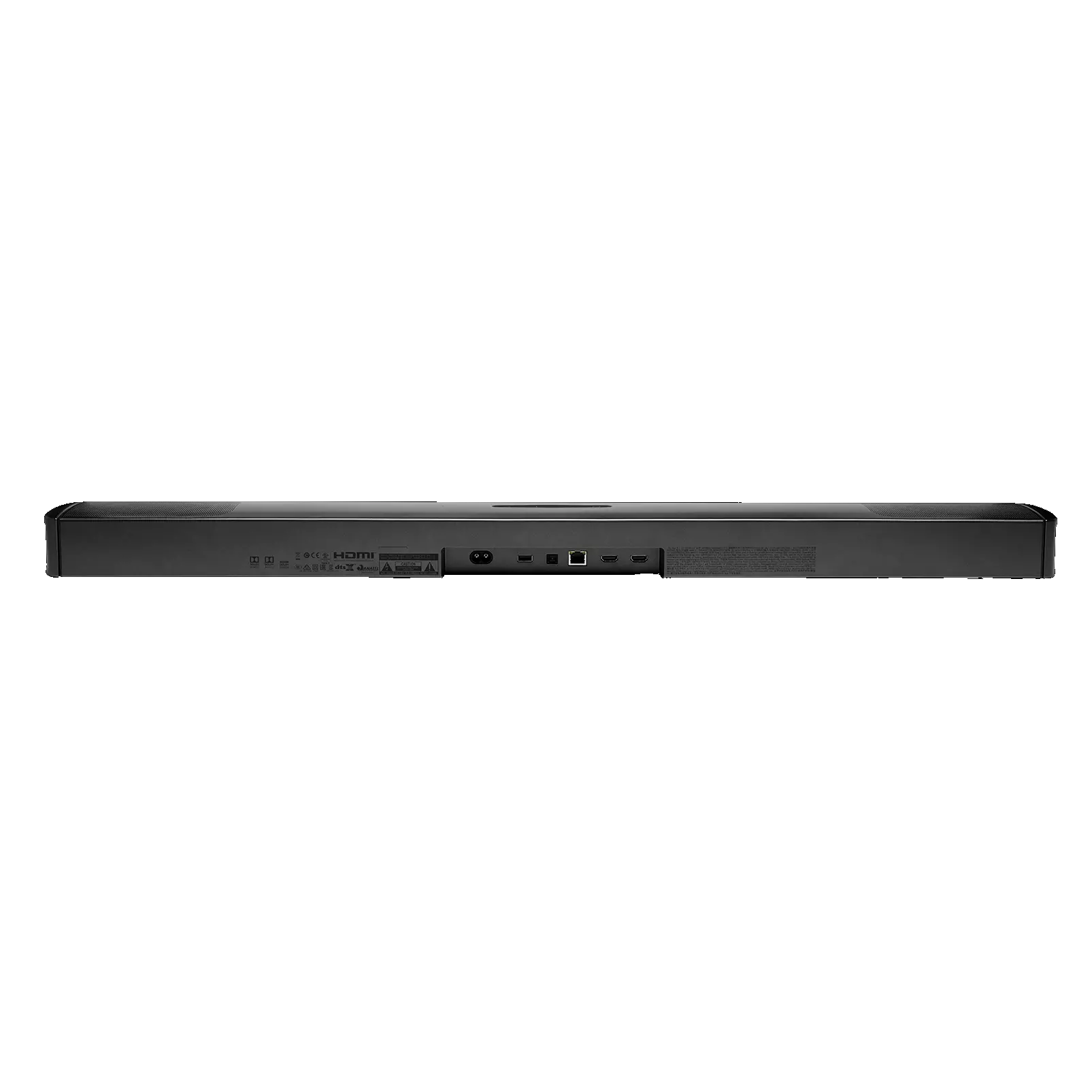

HDMI In1

HDMI eARC1

HDMI HDCP version2.3

103dBYes

34Hz~20KHzYes

1 Optical, Bluetooth, Chromecast, AirPlay2, USBYes

Dimensions

Soundbar dimensions (WxHxD); 884 x 62 x 120 (mm)/ 34.8” x 2.4” x 4.7”Yes

Detachable surround speaker, per piece173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7”

Subwoofer dimensions (WxHxD); 305 x 440 x 305(mm) / 12.0" x 17.3" x 12.0"Yes

Soundbar weight3.64 kg/ 8.0 lb

Detachable surround speaker0.72 kg x 2/ 1.6 lb x2

Subwoofer weight11.10 kg / 24.5 lb
