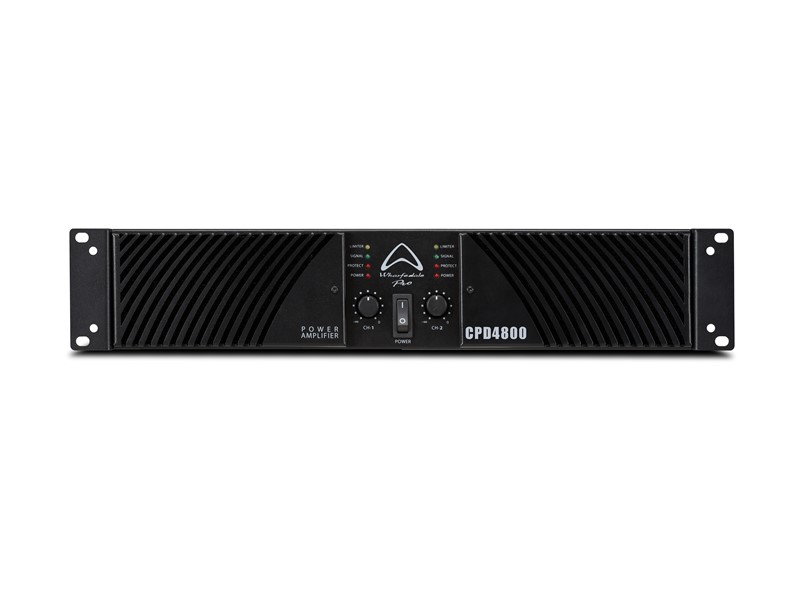

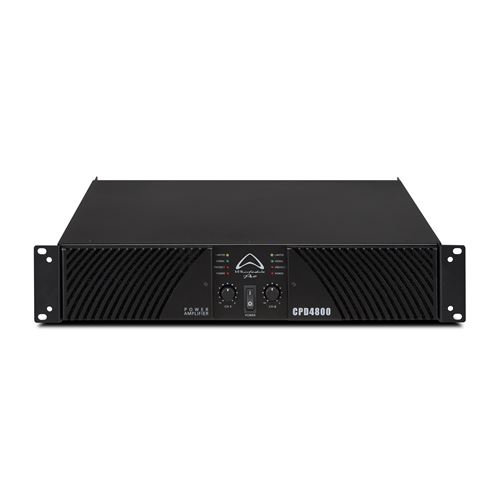

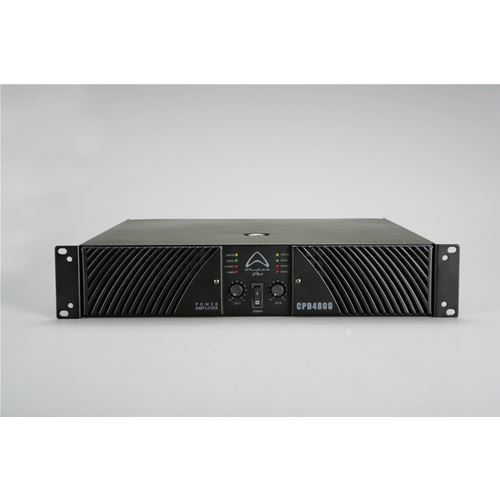

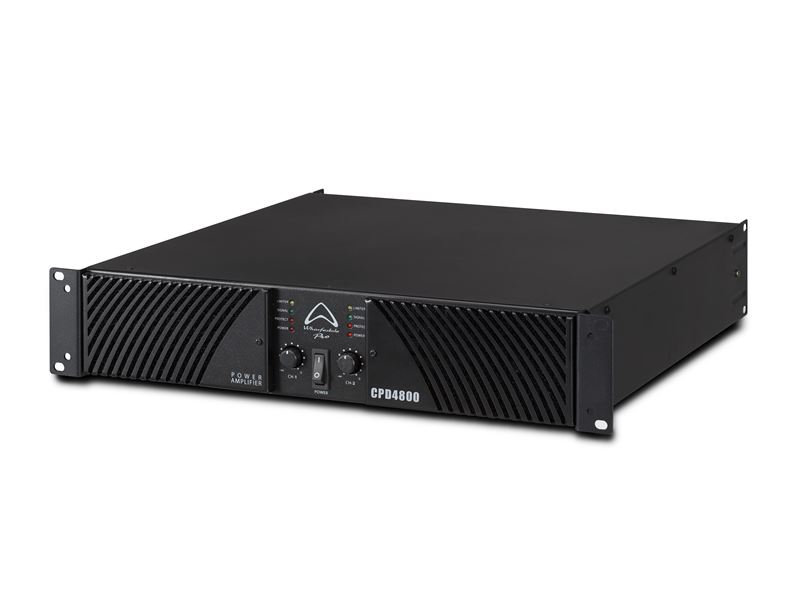

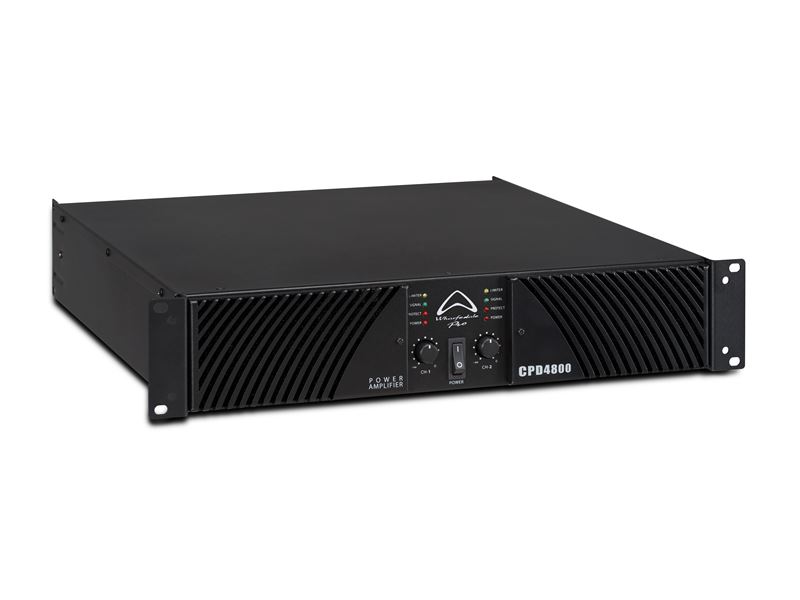

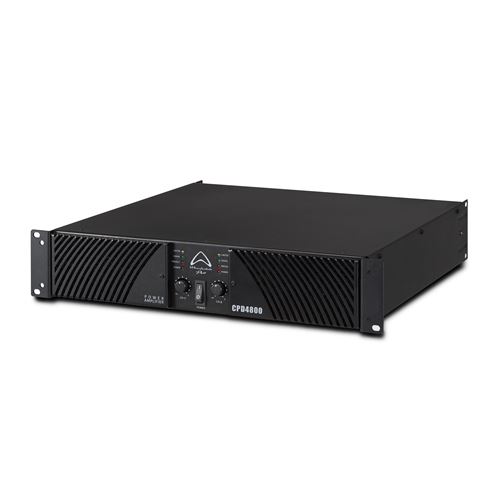

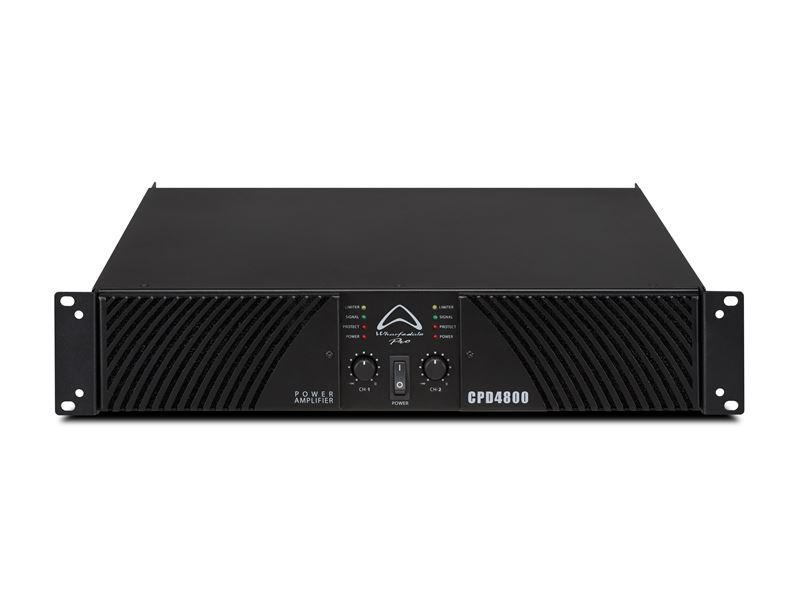

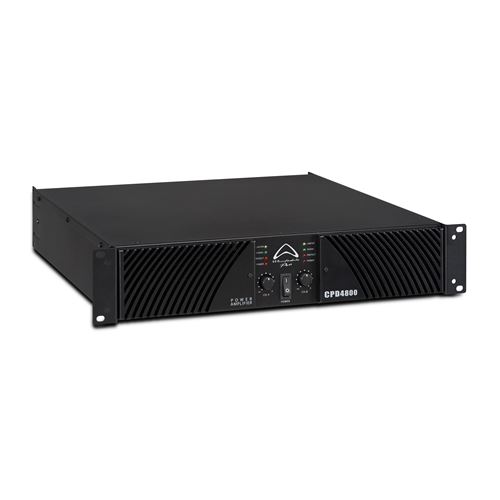

CPD-4800
2 x 1500 watts
- 2 channels
- 8 Ohm 2 x 1000 Watts
- 4 Ohm 2 x 1500 Watts
- 8 Ohm Bridged 1 x 3000 Watts
The CPD series of power amplifiers has become a trusted tool for many gigging musicians, tours and installations since its introduction in 2014.
The top-of-the-range CPD4800 delivers breathtaking power. This 2U Class H amp delivers a competitor busting and earth shattering 4800watts when bridged into 4Ω. Weighing in at only 23.5kg the CPD4800 also has the best weight:power ratio in the CPD series.
MASSIVE TRANSFORMERS
CPD series are built around a massive heavy-duty toroidal transformer.
This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.
EASY CLEANING
Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in. Dirty cooling fans reduce efficiency and can lead to overheating.

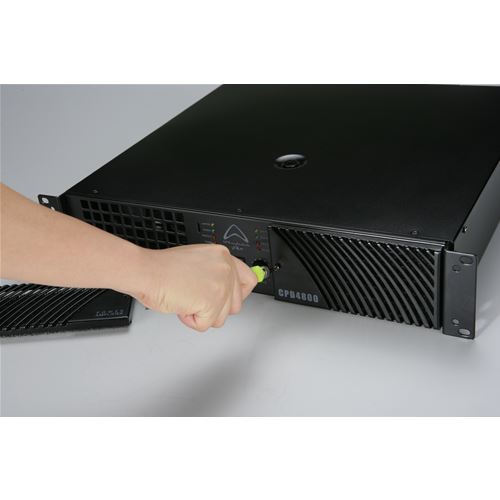

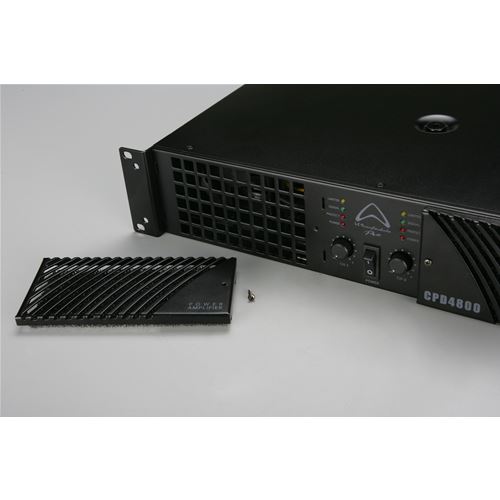

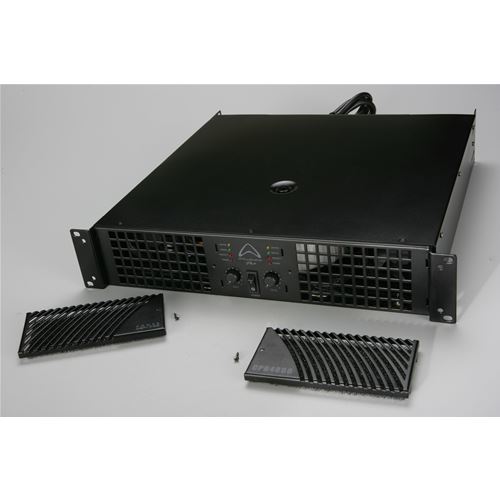

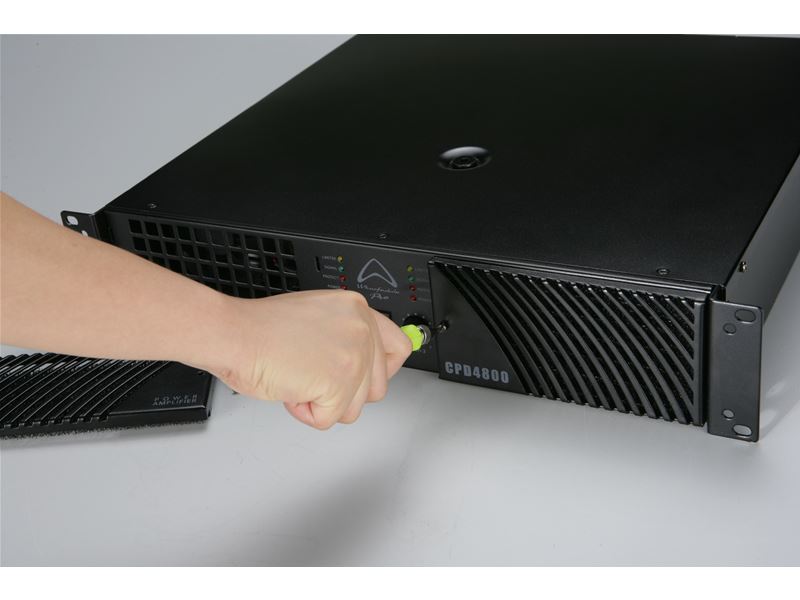

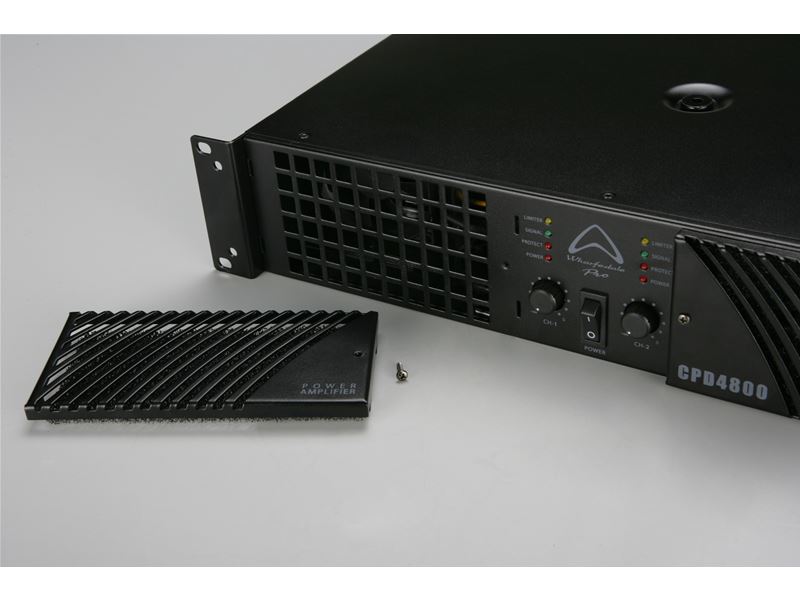

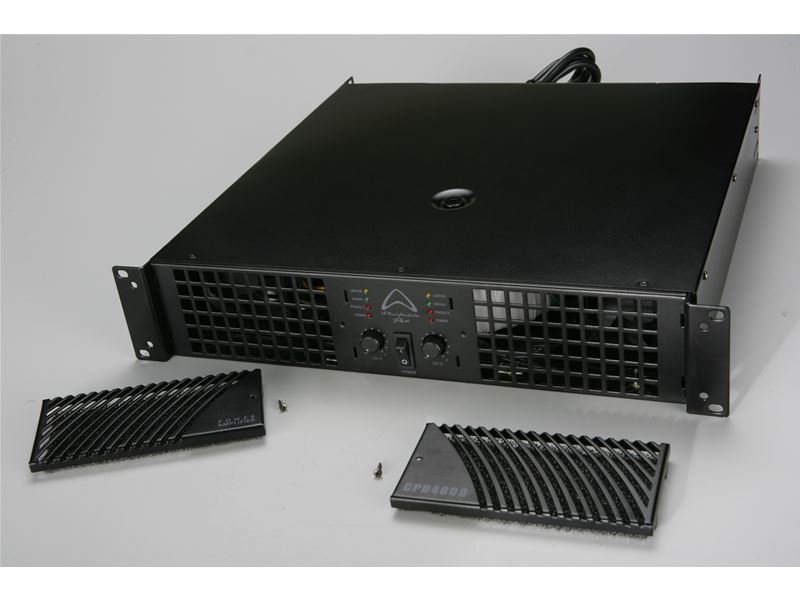

Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.
This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments. That’s cool !
CPD SERIES
EARTH SHAKING AUDIO
- Class H Technology (CPD2600 / CPD3600 / CPD4800)
- Class AB Technology (CPD1000 / CPD1600)
- Suitable for mobile use, touring, rental and installation
- Stereo, Parallel and Bridge modes
- 2 x XLR inputs
- 2 x speakON compatible outputs
- Switchable limiter
- Status and clip LEDs
- Thermal, overcurrent, DC and output short protect circuitry
- Continuously variable speed fan
| Model Name | CPD4800 |
| Stereo Power Output : RMS | |
| 8 Ω x 2 | 1000 w |
| 4 Ω x 2 | 1500 w |
| Bridged Mono Power Output : RMS | |
| 8 Ω | 3000 w |
| Frequency Response | 20 Hz – 30 KHz |
| Topology | Class H |
| Inputs | 2 x XLR |

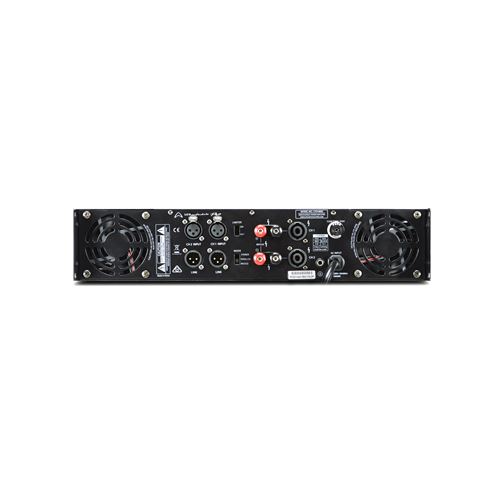

| Outputs | 2 x NL4,2 x binding posts, 2 x XLR |
| Input Sensitivity & impedance | |
| Sensitivity | 0 dBu (0.775 Vrms) |
| Balanced XLR input | 20 KΩ |
| Maximum Input Level | 22 dBu (9.7 Vrms) |
| Voltage Gain | 42 dB |
| Slew Rate | >40 V / us |
| Crosstalk | <-75 dB |
| S/N | >100 dB |
| Distortion (1 W) | <0.02% |
| Damping Factor | >300 |
| Controls | |

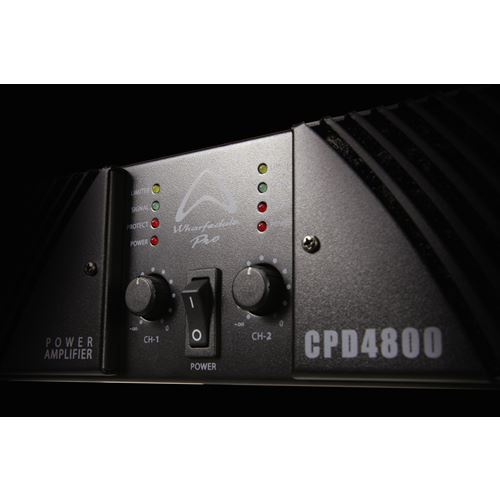

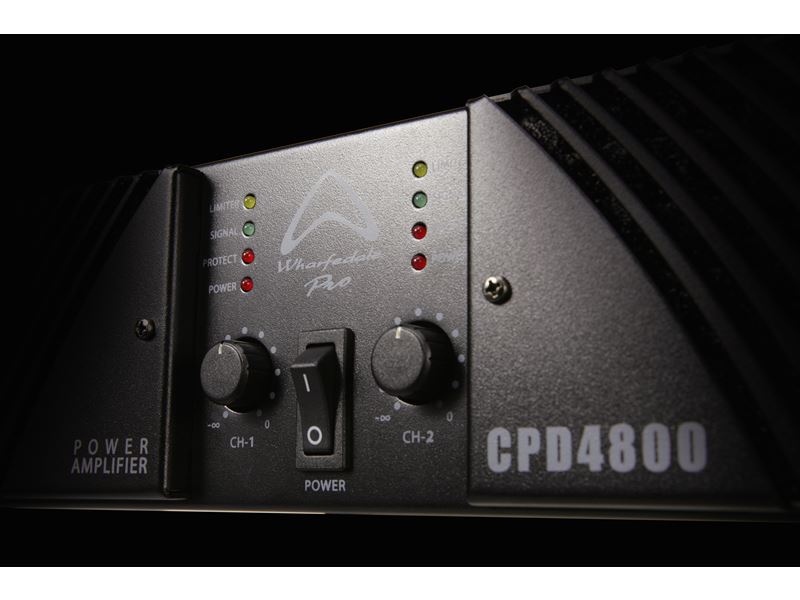

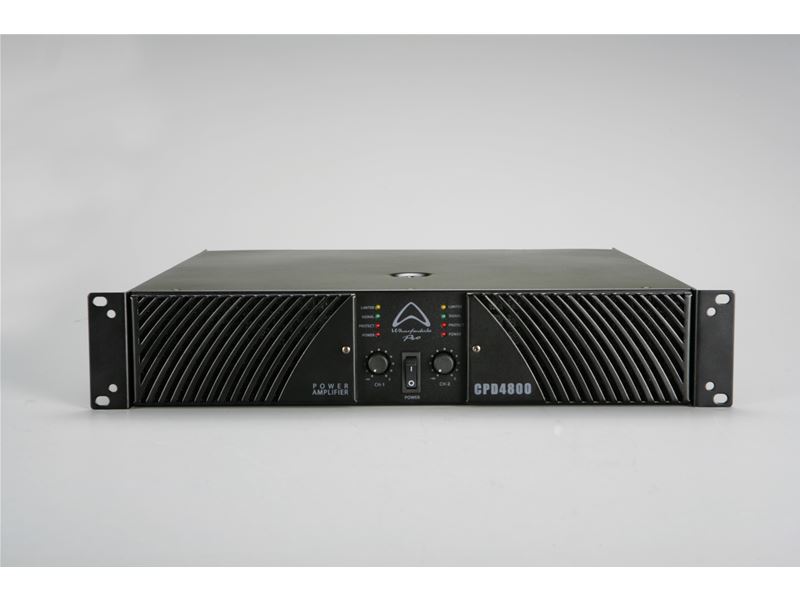

| Front panel | AC Switch, CH 1 and CH 2 Gain Knobs |

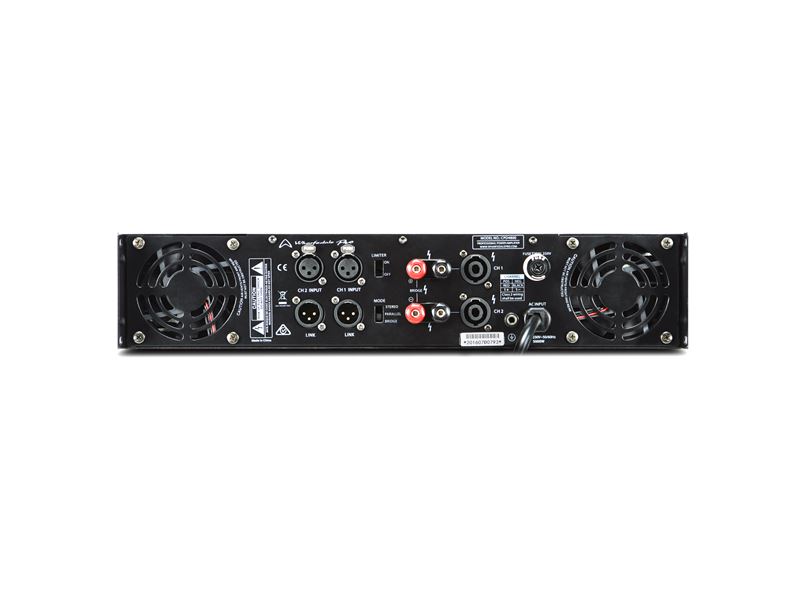

| Rear panel | Parallel, Stereo & Bridge Mode Switch; Limiter Switch |
| Protections | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Indicators | Power, Protect, Signal, Peak |
| Cooling | Variable Speed Fan |
| Dimensions | 88 x 483 x 450 mm |
| Net Weight | 23.5 kg / 51.80 lbs |
| Gross Weight | 27 kg / 59.52 lbs |
