The all-new Isoline Series from Wharfedale Pro is your fastest route to a professional, compact PA system. Compromising of a column formation loudspeaker interconnected with a high powered subwoofer with its own built-in amplifier and DSP, users can expect a full-range sound from a system that is easily packed down into your car boot with ease. For ultimate convenience Isoline comes complete with a built-in mixer and wireless bluetooth input.
Active PA, All-In-On
The Isoline Series is available in two different models, the Isoline 410 and the Isoline 812. The 410 column speaker compromises of 4 high powered 3” wideband drivers, covering the high/mid range with a long throw 10” subwoofer. This is perfect for corporate presentations and smaller singer-songwriter style performances.
Powerful, Yet Discreet

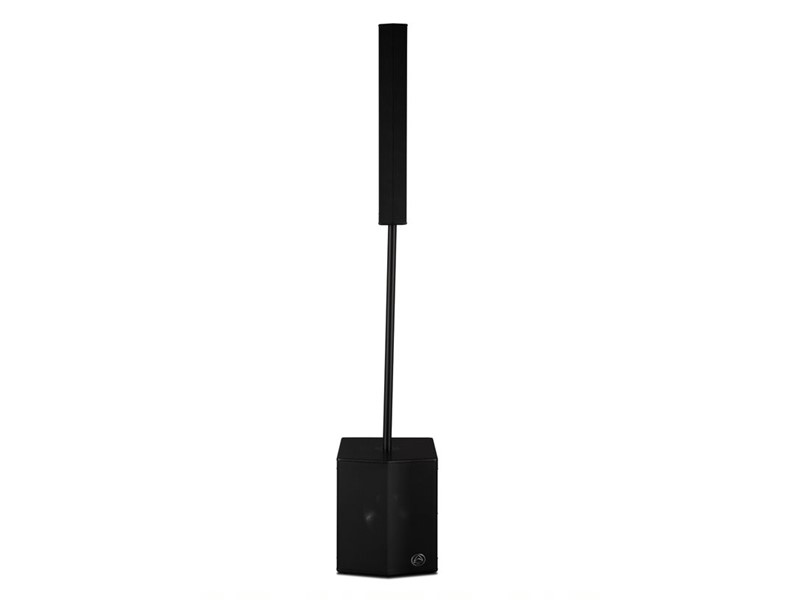

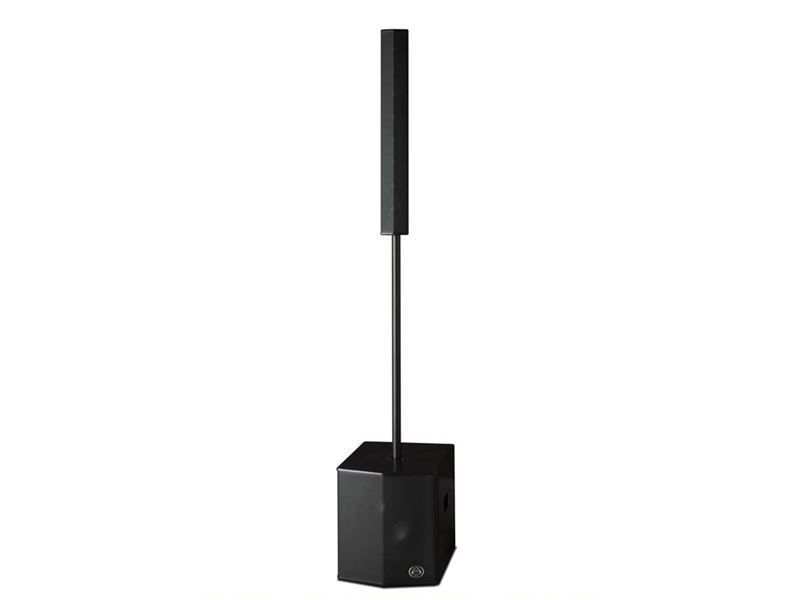

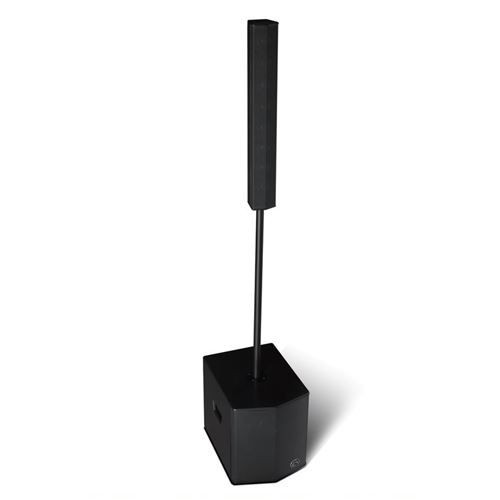

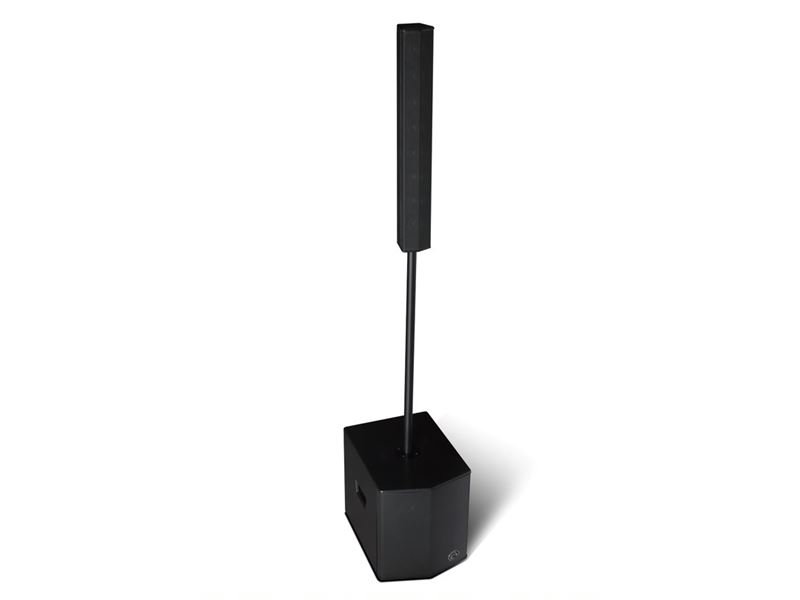

The larger Isoline 812 makes use of 8 x 3” wideband drivers combined with a larger 12” subwoofer. Extending to a lower frequency response and a higher output of 800W peak (500W RMS) the larger system applies itself to applications including for Mobile DJs and events requiring a more demanding system yet is equally portable with a discreet aesthetic. For even more power, two systems can be used in a stereo pair, or linked together via the built-in XLR output.
More Connection, Less Gear
Isolines’ built-in mixer offers complete control over 2 x XLR / Jack combi inputs (with mic and line level) plus a phono input to mix a combination of backing tracks, live vocals and instruments. In keeping with modern tech savvy DJs and engineers with wireless mixers and controllers a bluetooth input is also easily paired with your mobile device in seconds. This also gives less experienced presenters an intuitive interface between a tablet or mobile device and the PA system. Either way - Isoline offers complete convenience.
- Lightweight, portable active column pa systems
- XLR, Jack and RCA Phono inputs
- Bluetooth wireless connectivity
- Each unit includes pole and speaker cable
- Multiple high powered 3″ High / Mid Drivers (4 or 8)
- 10″ / 12″ long throw subwoofer
- Rhino Rock black paint finish
- Link multiple systems via XLR output
- Lightweight and portable
- Slimline formation
- Built-in DSP
- Optional Isoline Tour bags available
| Model Name | Isoline-812 |
| System Type | Active |
| Frequency Response (+/-3 dB) | 40 Hz-20 KHz |
| Frequency Range (-10 dB) | 35 Hz-20 KHz |
| Sensitivity Maximum SPL @1m | 124 dB |
| Transducers | |
| Low Frequency Transducer | |
| Size ( mm / inches) | 305 mm / 12” |
| Coil Size ( mm / inches) | φ51.3 / 2′ |
| Impedance | 4 Ω |
| High Frequency Transducer | |
| Type | 8 x Wideband Drivers |
| Coil Size ( mm / inches) | φ32.5 / 1.3′ |
| Diaphragm Material | paper cone |
| Impedance | 4 Ω |
| Nominal Coverage (H x V) | 80 Horizontal |
| Electronics | |
| Amplifiers [footnote] | |
| Low-Frequency Power Amplifier RMS/Peak Watts | 300/600 W |
| High-Frequency Power Amplifier RMS/Peak Watts | 300/600 W |
| Amplifier class | class D |
| DSP | |
| Controls—D-EQ | |
| Amplifier Protection | Yes |
| Power On Protection | Yes |
| Thermal Protection | Yes |
| Low Line Voltage Shut Down | Yes |
| Driver Protection | Independent LF limiters |
| DC Protection | Yes |
| Short Protection | Yes |
| Clip Limiter | Yes |
| Limiter Indicator | LED |
| Power Indicator | LED |
| Connectors | |
| Inputs | |
| Input Sensitivity | Switchable balanced mic or line level input |
| Input A (Line / Mic balanced) | Mic:Line:10 dBu -60 dBu |
| Input B (Balanced) | -10 dBu |
| input C (RCA / Bluetooth) | 0 dBu |
| Maximum Input Level | 20 dBu |
| Input Connector | 2 x XLR Jack Combi, RCA |
| Input Impedance | Balanced:20 KΩ Unbalanced:10 KΩ |
| Input A (Line / Mic balanced) | 22 KΩ Balanced and 11 KΩ Unbalanced |
| Input B (Balanced) | 22 KΩ Balanced and 11 KΩ Unbalanced |
| input C (RCA / Bluetooth) | 11 KΩ Unbalanced |
| Maximum Input Level | 20 dBu |
| Line Output Connector | Female XLR |
| Impedance Balanced | Balanced: 50 Ω Unbalanced:100 Ω |
| Loop Gain | 0dB |
| AC Power | |
| AC Power details | |
| Power Supply | High Efficiency Switching Mode Power Supply |
| AC Power Options | AC100-120V~/220-240V~,50/60HZ |
| Power On Indicator | Limiter Indicator: Red LED |
| Power Indicator: Green LED | |
| Bluetooth Pairing: Blue LED | |
| Hardware | |
| Rigging / Bracket / Mounting Options | Standard Pole Mount |
| Enclosure | |
| Enclosure Material and finish | MDF cabinet,resistant black paint,metal grille,rubber feet handles |
| Colour Options | Black |
| Grille Material & Finish | Steel |
| Dimensions and Weight | |
| Dimensions – Unpacked ( mm / inches): | |
| Height | 450 mm / 17.72″ |
| Width | 400 mm / 15.75″ |
| Depth | 541.9 mm / 21.33″ |
| Dimensions – Packed ( mm / inches): | |
| Height | 525 mm / 20.67″ |
| Width | 468 mm / 18.43″ |
| Depth | 613 mm / 24.13″ |
| Weight | |
| Net Weight (kg / lbs) | 23.8 kg / 52.5 lbs |
| Gross Weight (kg / lbs) | 28 kg / 61.7 lbs |
