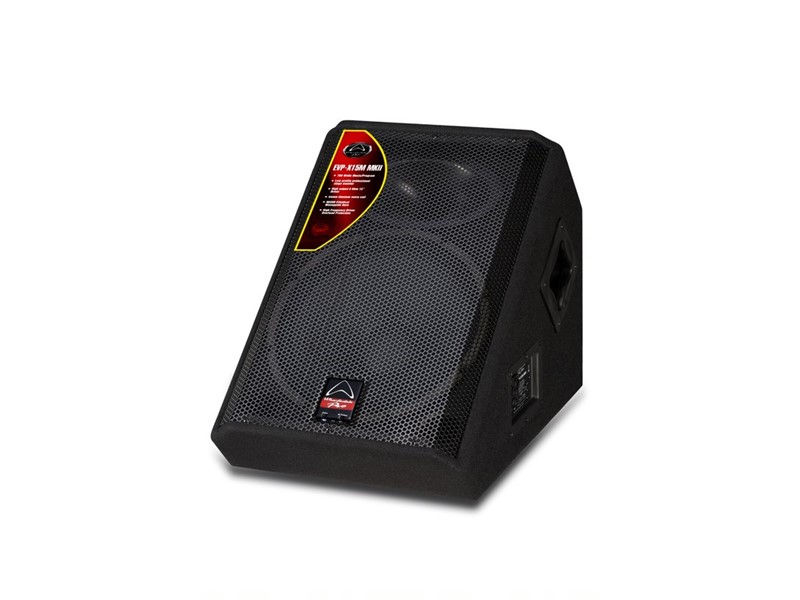

EVP-X15M MKII
350 watts
AES (RMS)
- 15″ floor monitor
- 1.75″ voice coil HF driver
- 15″ LF driver with 2.5″ voice coil
- 600 watts AES (RMS)
- 1200 watts Programme
- 2400 watts Peak
- 130 dB Max SPL @ 1 meter
ELIPTICAL WAVEGUIDES
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the EVP-X MKII series use this same elliptical waveguide design which makes for controllable coverage when using multiple EVO-X series loudspeakers.
TOUGH CARPET
Each EVP-X MKII PA speaker and subwoofer is protected by a durable carpet covering and steel grille.
The MKII version features a 4-way carry handle and a dual angle pole mount making it both portable and versatile for varying installation applications, ensuring the HF sound is directed straight at your audience.
- Carpet covered hard working PA speakers
- 4-way rubberised handles
- Elliptical 90° x 60° dispersion
- Full series lineup consisting of 8 models
- NL4 (speakON compatible) and 1/4” connectors
- +3 dB HF Frequency boost switch
- Subwoofers feature internal crossover
| Model Name | EVP-X15M MKII |
| System Type | Passive |
| Configuration | Two-way Monitor |
| Frequency Response (+/-3 dB) | 50 Hz – 20 KHz |
| Frequency Range (-10 dB) | 45 Hz – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 98 dB |
| Calculated Maximum SPL @1 m | 130 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 381 mm / 15″ |
| Voice Coil Size | 64.26 mm / 2.5″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 350 w |
| High Frequency Transducer | |
| HF Driver Type | Compression driver |
| Voice Coil Size | 44.5 mm / 1.75″ |
| Exit Size | 25 mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 40 w |
| Nominal Coverage (H x V) | 90° x 60° |
| Power | |
| System Continuous Power | 350 w |
| System Programme Power | 700 w |
| System Peak Power | 1400 w |
| Crossover frequency | 2.3 KHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| + 2 x 1/4” Jacks | |
| Hardware | |
| Pole Mount | |
| Handles | 2 on Sides |
| Enclosure | |
| Enclosure Material | Particle Board |
| Finish | Black Carpet |
| Grille Material & Finish | 1.2 mm Steel |
| Dimensions – Unpacked | |
| Height | 645 mm / 25.39″ |
| Width Front | 445 mm / 17.52″ |
| Width Rear | 445 mm / 17.52″ |
| Depth | 473.5 mm / 18.64″ |
| Dimensions – Packed | |
| Height | 501 mm / 19.72″ |
| Width Front | 691 mm / 27.2″ |
| Width Rear | 691 mm / 27.2″ |
| Depth | 532 mm / 20.94″ |
| Weight | |
| Net Weight (kg / lbs) | 20.9 kg / 45.98 lbs |
| Gross Weight (kg / lbs) | 24.4 kg / 53.7 lbs |
