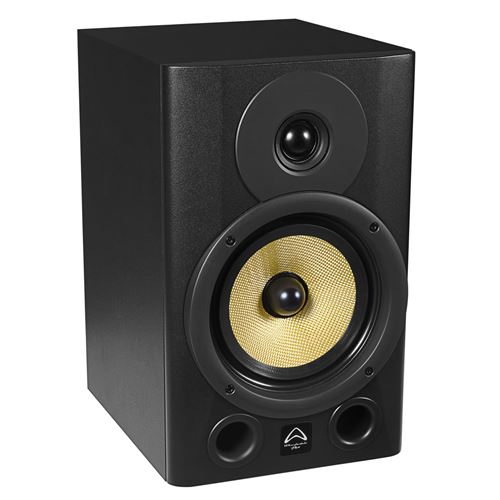

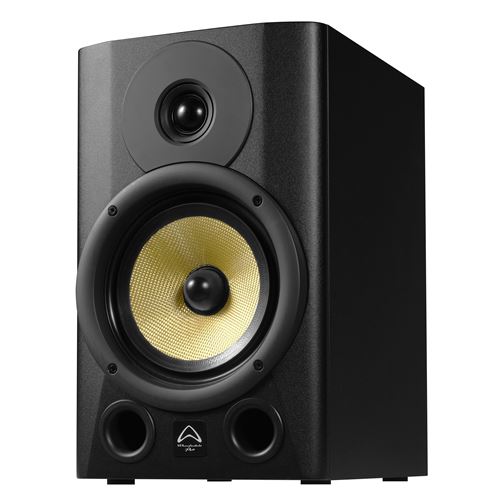

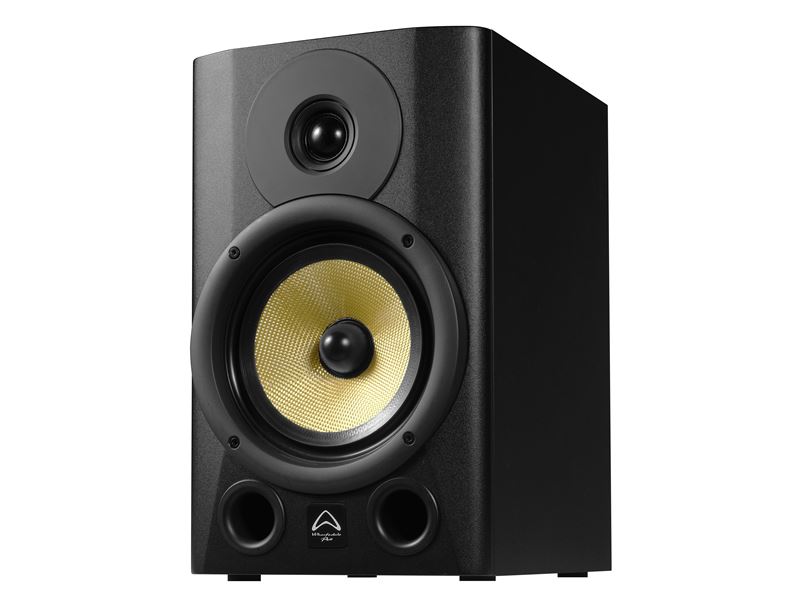

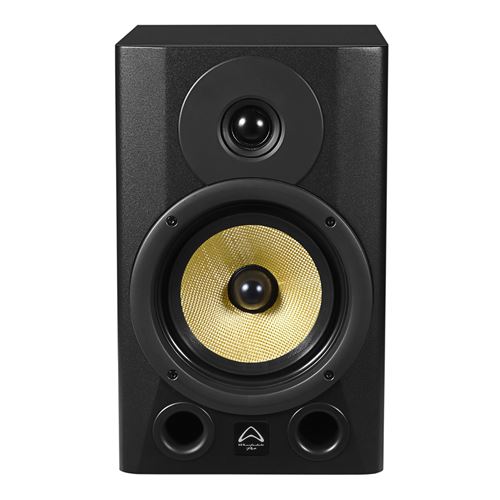

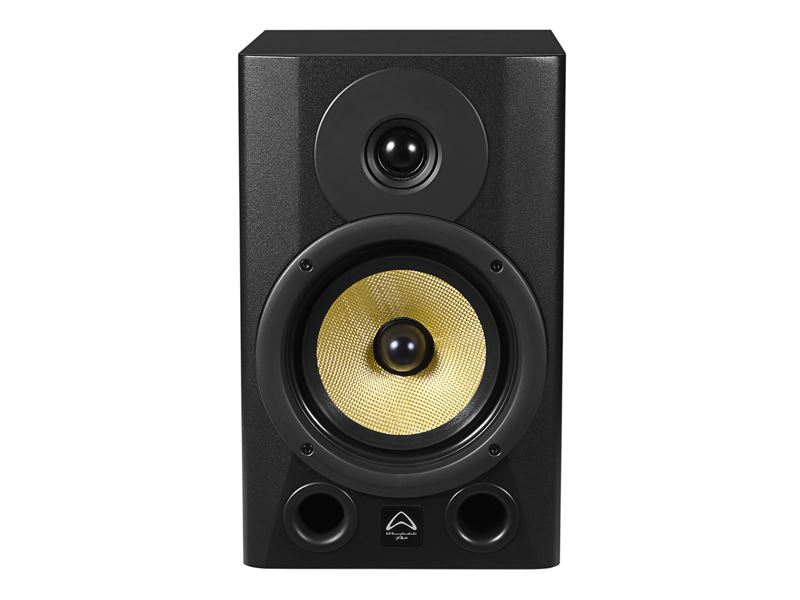

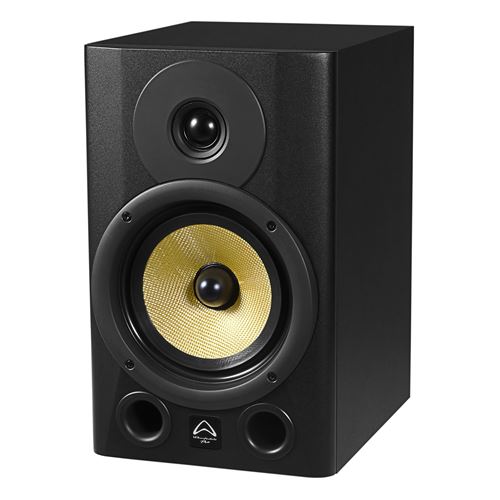

DIAMOND STUDIO -7BT
- 6.5″ Active bi-amplified studio monitor
- 150 watts continuous
- 300 watts peak
- 113 dB Max SPL @ 1 M
Honest… and practical home studio monitors - with Bluetooth
The new Diamond Studio BT monitors are high quality studio monitors, with the sonic detail required for intricate audio work, but they also have a Bluetooth input which allows these professional monitors to also be used in a home entertainment environment.
• Honest, uncoloured sound
• Bluetooth input with TWS stereo linking

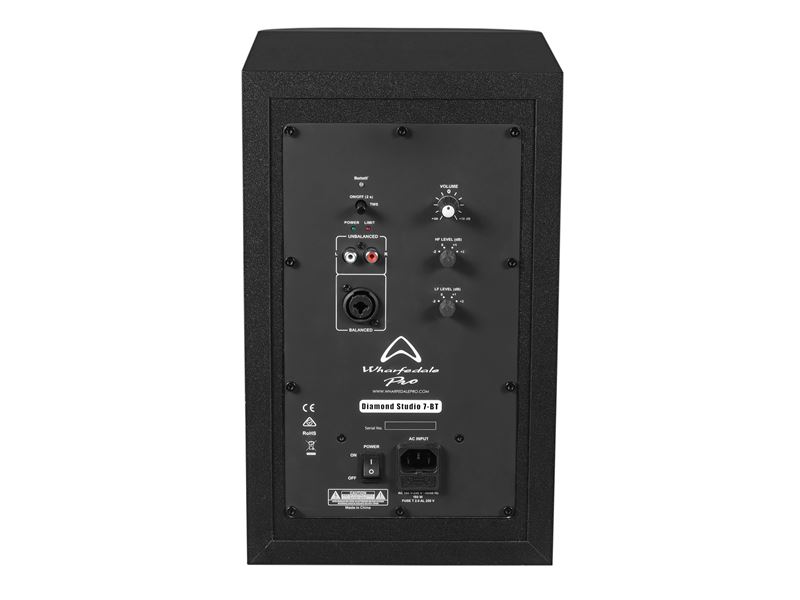

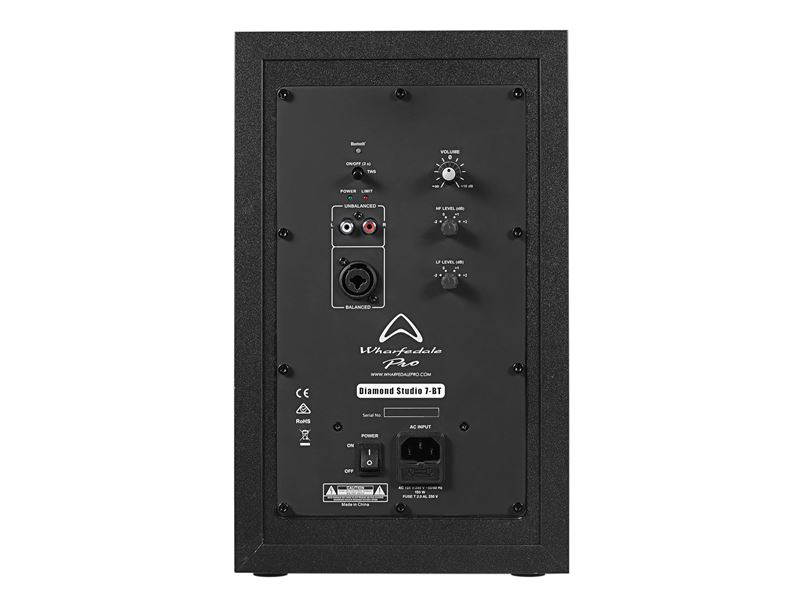

• Balanced inputs - XLR, 6.3 mm combi jack
• RCA stereo inputs
• Bi-amplified.

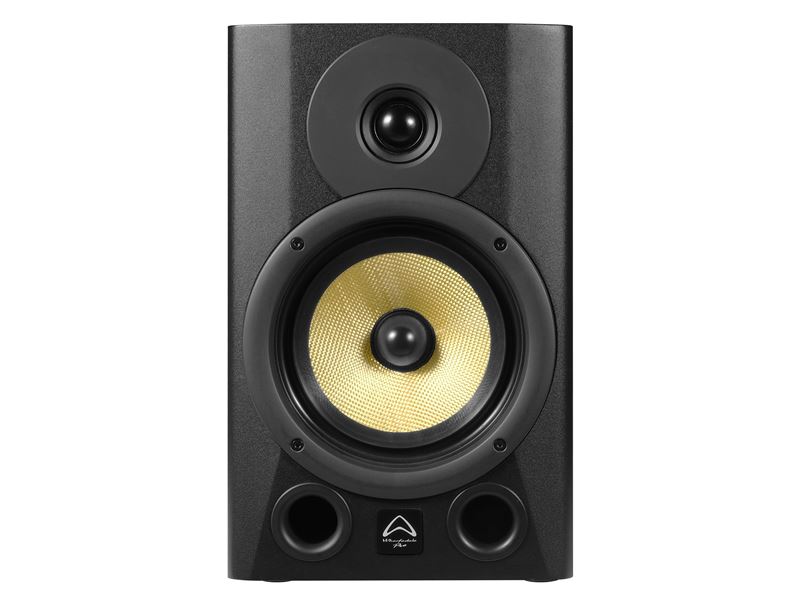

• Woven fibreglass composite LF cones
TWS BLUETOOTH
Using the BT Stereo link mode, 2 units of Diamond Studio BT create their own Stereo linked pair.
Diamond Studio BT use TWS (True Wireless Stereo) technology to create a controllable linked pair of speakers from a single Bluetooth input.
Using the BT Stereo link mode, 2 units of Diamond Studio BT create their own Stereo linked pair.
Diamond Studio BT use TWS (True Wireless Stereo) technology to create a controllable linked pair of speakers from a single Bluetooth input.
SUPER ACCURATE
Diamond Studio -BT monitors are designed to be super accurate.
Experience every nuance… or even every problem with your mix. Diamond Studio BT are honest.
A great mix is still a great mix. A bad mix, is still a bad mix.
Either way, Diamond Studio -BT will let you hear the reality.
- Honest, uncoloured sound
- Bluetooth input with TWS stereo linking
- Balanced inputs – XLR, 6.3 mm combi jack
- RCA stereo inputs
- Class D Bi-amplified.
- Woven fibreglass composite LF cones
- Honest, uncoloured sound
- Bluetooth input with TWS stereo linking
- Balanced inputs – XLR, 6.3 mm combi jack
- RCA stereo inputs
- Class D Bi-amplified.
- Woven fibreglass composite LF cones
| Model Name | Diamond Studio 7-BT |
| System Type | Active 6.5” 2-way Bi-Amplified |
| Freq. Range (-10 dB) Analog Input | 38 Hz-25 KHz |
| Maximum SPL (peak @1 m) | 113 dB |
| LF Transducer | 6.5″ Fiberglass composite woofer |
| HF Transducer | Silk Soft dome tweeter |
| Coil Size (mm / inches) | 25.4 mm / 1” |
| High Frequency Coverage (H x V) | 135° x 110° |
| Total Power Amplifiers | 150 W |
| Low-Frequency Power Amplifier (Class D) | 90 W Continuous / 180 W Peak |
| High- Frequency Power Amplifier (Class D ) | 60 W Continuous / 120 W Peak |
| Electronic Crossover: | |
| Crossover Frequency | 2.2 KHz |
| Controls | |
| Equalization (dB) | HF / LF Level Adjust (-2, 0, +1 ,+2) |
| System Volume | -∞ to +10 dB |
| Amplifier Protection | Yes |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED/white LED (LOGO) |

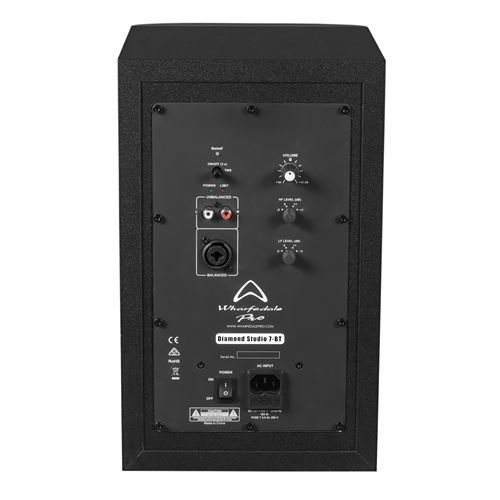

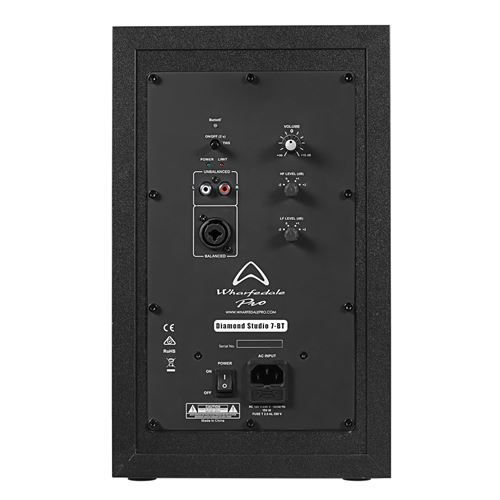

| Input type | Balanced / Unbalanced / Bluetooth |
| Input Connectors | TRS JACK / FEMALE XLR/RCA |
| AC Power Options | 100 V-240 V |
| Power On Indicator | LED |
| Cabinet Material | MDF |
| Cabinet Colour | black |
| Dimensions (Unpacked): | |
| Height | 340 mm /13.39 in |
| Width | 210 mm /8.27″ |
| Depth | 260 mm /10.24″ |
| Dimensions (packed): | |
| Height | 400 mm/15.75 in |
| Width | 272 mm/ 10.71 in |
| Depth | 325 mm / 12.80 in |
| Weight | |
| Net Weight | 6.84 kg / 15.1 lbs |
| Gross Weight | 7.82 kg / 17.20 lbs |
