Following the introduction of the Diamond Studio -BT models of studio monitors with Bluetooth, Wharfedale Pro now release the nonBluetooth versions, Diamond Studio 7 and Diamond Studio 5. The new Diamond Studio 5 and Studio 7 share all the same components, drivers and sonic detail as the Bluetooth models but, the visually defining black woven fibreglass composite LF drivers now bring a slim enhancement to vocal frequency clarity.

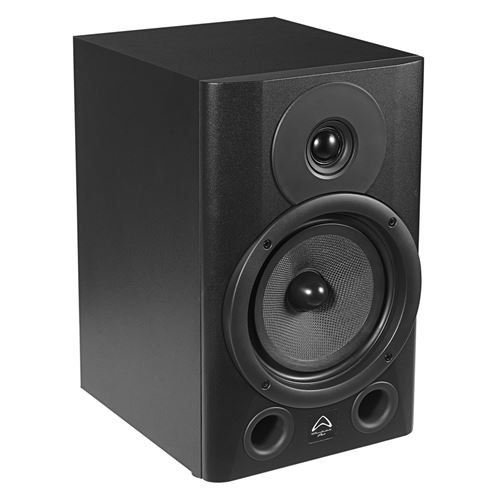

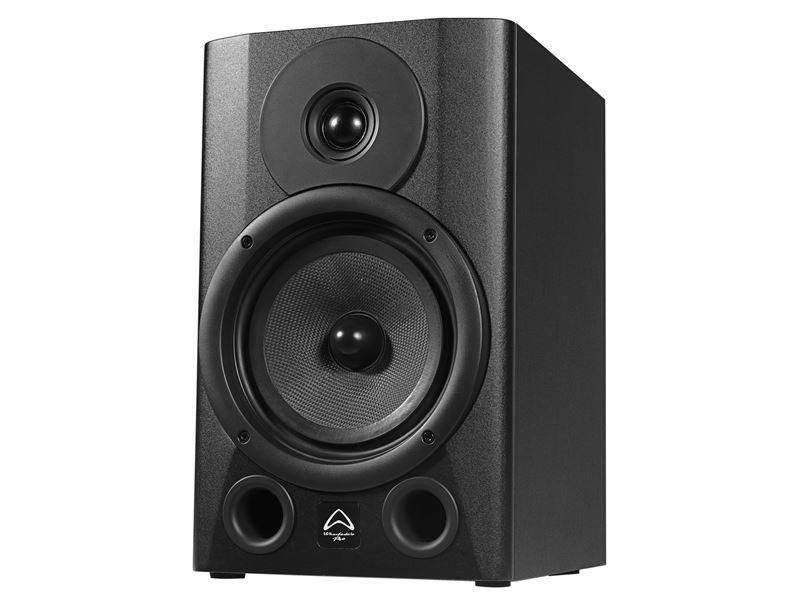

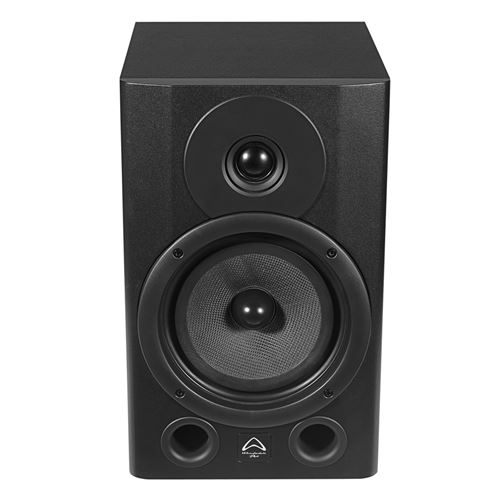

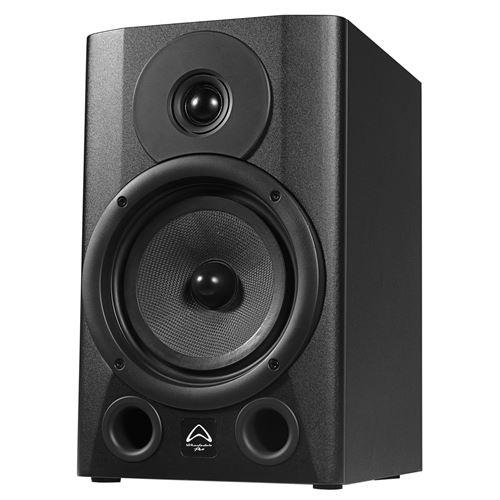

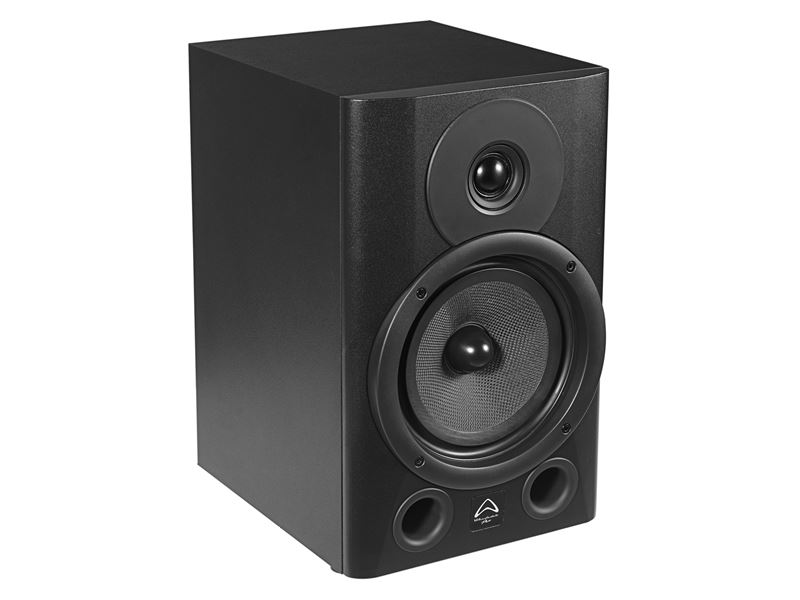

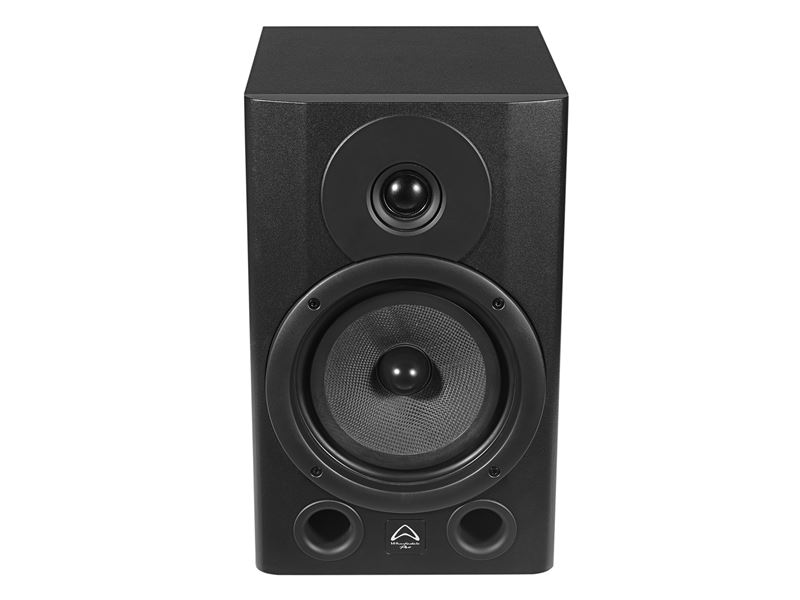

DIAMOND STUDIO -7
Continuous

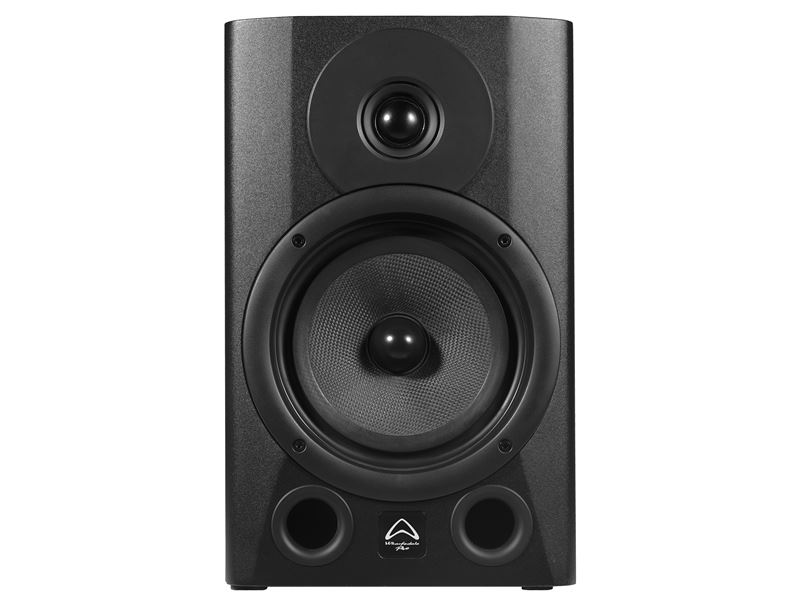

- 6.5″ Active bi-amplified studio monitor
- 150 watts continuous
- 300 watts peak
- 113 dB Max SPL @ 1 M
Diamond Studio monitors are designed to be super accurate.
Experience every nuance… or even every problem with your mix. Diamond Studio are honest.
A great mix is still a great mix. A bad mix, is still a bad mix. Either way, Diamond Studio will let you hear the reality.
• Honest, uncoloured sound

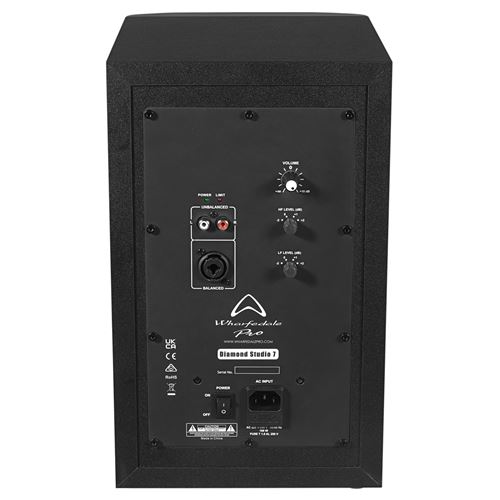

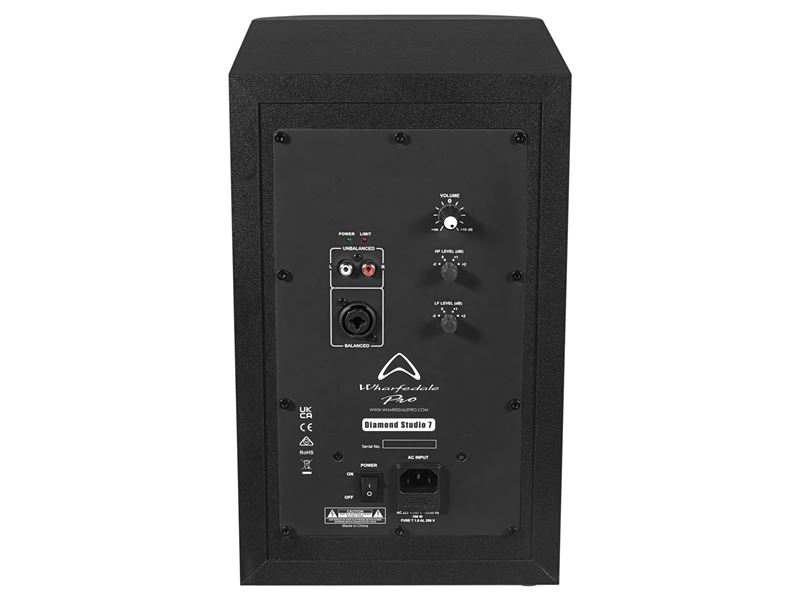

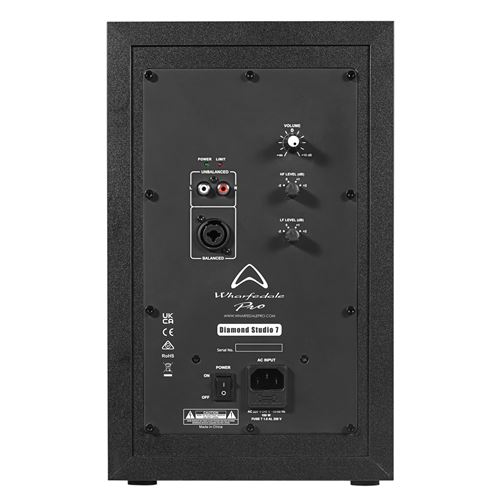

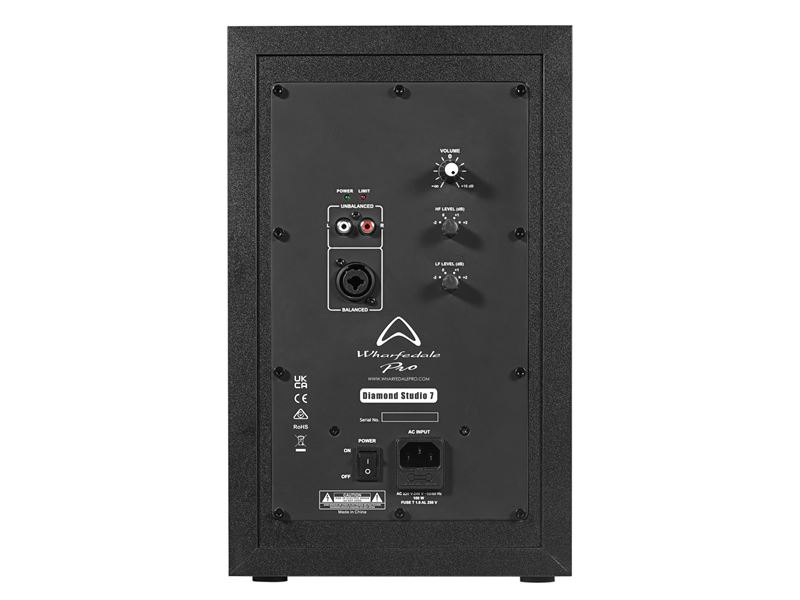

• Balanced inputs - XLR, 6.3 mm combi jack
• RCA stereo inputs
• Bi-amplified.
• Woven fibreglass composite LF cones
• HF and LF level controls
| Model Name | Diamond Studio 7 |
| System Type | Active 6.5” 2-way Bi-Amplified |
| Freq. Range (-10 dB) Analog Input | 38 Hz-25 KHz |
| Maximum SPL (peak @1 m) | 113 dB |
| LF Transducer | 6.5″ Fiberglass composite woofer |
| HF Transducer | Silk Soft dome tweeter |
| Coil Size (mm / inches) | 25.4 mm / 1” |
| High Frequency Coverage (H x V) | 135° x 110° |
| Total Power Amplifiers | 150 W |
| Low-Frequency Power Amplifier (Class D) | 90 W Continuous / 180 W Peak |
| High- Frequency Power Amplifier (Class D ) | 60 W Continuous / 120 W Peak |
| Electronic Crossover: | |
| Crossover Frequency | 2.2 KHz |
| Controls | |
| Equalization (dB) | HF / LF Level Adjust (-2, 0, +1 ,+2) |
| System Volume | -∞ to +10 dB |
| Amplifier Protection | Yes |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED/white LED (LOGO) |
| Input type | Balanced / Unbalanced |
| Input Connectors | TRS JACK / FEMALE XLR/RCA |
| AC Power Options | 100 V-240 V |
| Power On Indicator | LED |
| Cabinet Material | MDF |
| Cabinet Colour | black |
| Dimensions (Unpacked): | |
| Height | 340 mm /13.39 in |
| Width | 210 mm /8.27″ |
| Depth | 260 mm /10.24″ |
| Dimensions (packed): | |
| Height | 400 mm/15.75 in |
| Width | 272 mm/ 10.71 in |
| Depth | 325 mm / 12.80 in |
| Weight | |
| Net Weight | 6.84 kg / 15.1 lbs |
| Gross Weight | 7.82 kg / 17.20 lbs |
