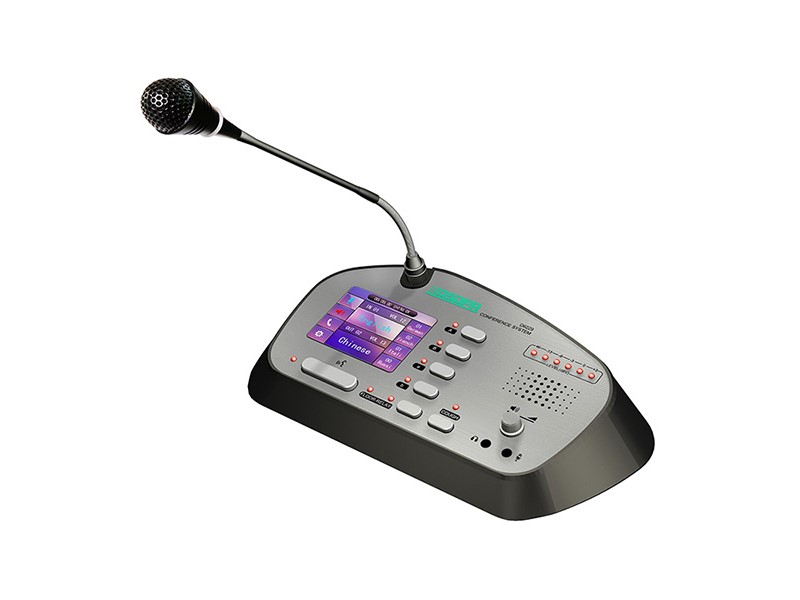

DSPPA 12 Channel Interpretation Unit

D6229

DSPPA

Whatsapp for enquiry Email for enquiry






D6229, a 12 channel interpretation unit applied in the digital conference system, supports touch operation, indirect interpretation and direct interpretation. It can be applied in multi-interpreter system. You can set the interpretation unit to an administrator mode to implement management and supervisory functions.


Features

● 12 channel interpretation unit applied in the digital conference system;
● With internal magnetic speakers, 3.5mm headphone jack, headphone volume adjustable;
● With 3.5mm microphone input interface;
● TFT3.2 inch true color touch screen displays all working status and operation information;
● Touch screen touch mode of operation;
● With indirect interpretation and direct interpretation function;


model

D6229

structure type

Desktop style

display

3.2-inch true color display

Operation method

Touch screen operation

Output frequency response

45Hz-18kHz(-3dB)

Maximum input voltage

2V

Rated output voltage

2.35(±0.1)V

Static power consumption

<1W

Maximum power consumption

3W

Signal to noise ratio

>80dB

Cross talk attenuation

>80dB

Harmonic distortion

<0.5%

Headphone output

9dBu,8-32Ω,3.5mm

Working power supply

interpretation host supply DC24V

Connection method

8-pin DCN interface

Size (length × width × height) microphone rodexcluded

215×118×55

Net weight (with microphone rod)

1.23kg

 microphone

Tube microphone type

Eclectic heart - shaped capacitance

Frequency response

40Hz-20kHz(-3dB)

Sensitivity

-45dBV/pa

Input resistance

2kΩ

Equivalent noise

20dB(SPL)

Maximum sound pressure level

125dB(THD<3%)
