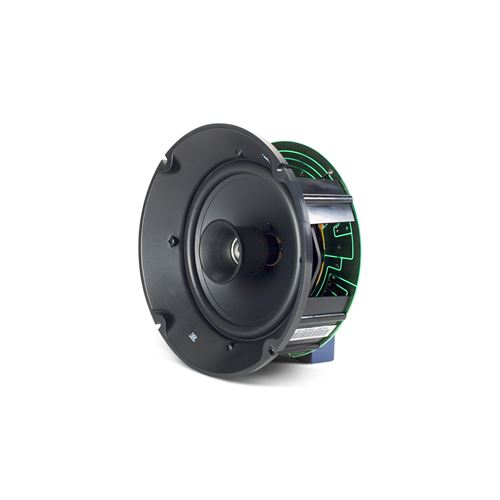

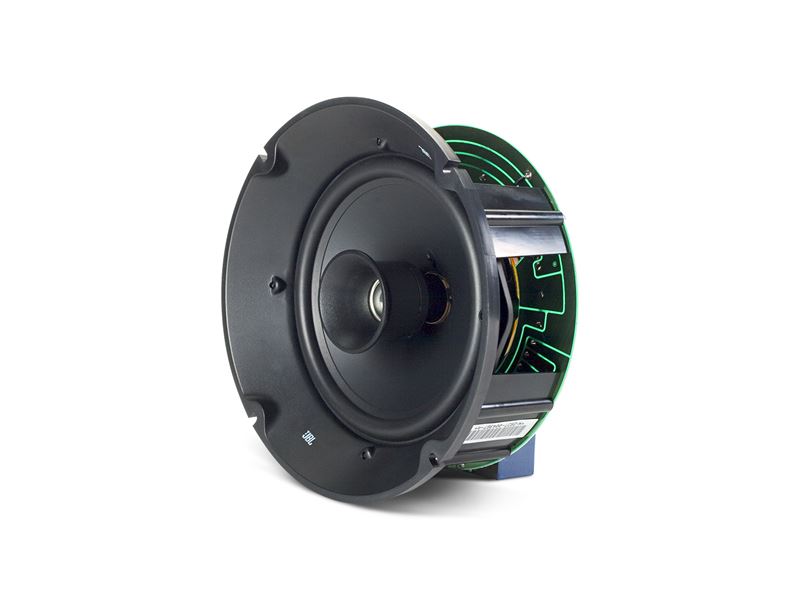

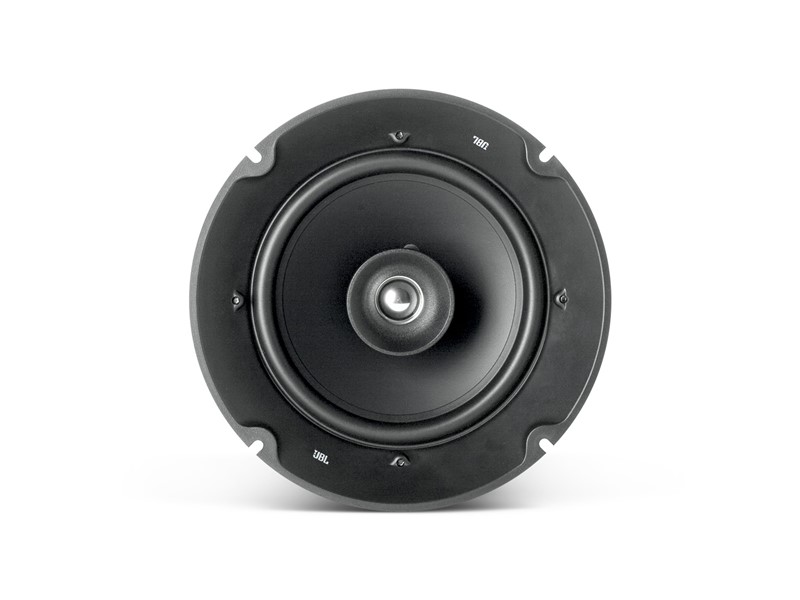

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.
Features
- Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
- Comes complete with transducer, network and transformer.
- Advanced crossover network provides natural sound and even coverage throughout listening area.
- 60 W transformer for 70 V or 100 V distributed speaker lines.
- Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.
| Frequency Range | 80 Hz - 20 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
| Coverage Angle | 90° conical |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 106 dB (top 70V/100V tap) |
| Drivers | LF Driver: 165 mm (6.5 in) |
| HF Driver: 19 mm (¾ in) | |
| Input Connectors | Screw locking barrier strip for bare wire |
| Outside Dimensions (H x Dia) | 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan |
| Net Weight (each) | 4.2 kg (10 lb) |
| Shipping Weight (pair) | 9.7 kg (21 lb) |
| Sensitivity | 89 dB (100 Hz - 10 kHz) |
| Safety Agency | In accordance with IEC60849 / EN60849. |
| Plenum Usage | Requires third-party plenum rated backcan |
