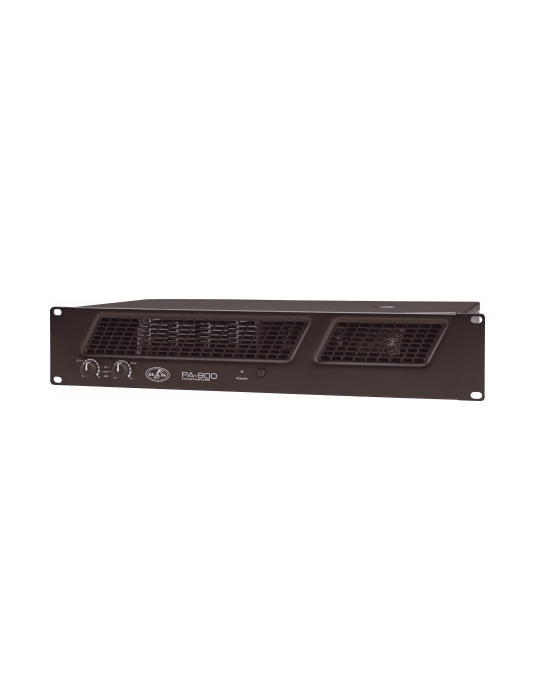

DAS PA Series Dual-Channel 350 Watts @ 8 Ohms 2U Amplifier

PA-900

DAS

Whatsapp for enquiry Email for enquiry






The PA series amplifiers are designed and built to provide an affordable, quality powering solution. The wide range of models makes the series ideal for both installed or mobile sound reinforcement applications.

The amplifiers incorporate a rugged 2 unit all-steel chassis ensuring structural rigidity. The low-noise fans offer both quiet and cool operation. The amplifier incorporates rear located switches which permit, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.


Output Power Ratings
Power 8 Ohms, Both Channels Driven 2 x 350 W
Power 8 Ohms Bridged 900 W
Power 4 Ohms, Both Channels Driven 2 x 450 W
Electronics and Connectors
Amplifier Channels 2
Frequency Response 20 Hz – 20 kHz, +0 – 1 dB
Total Harmonic Distortion <0.5% , 20 Hz - 20 kHz
Signal to Noise Ratio > 100 dB @ 20 Hz – 20 kZ
Voltage gain 31 dB
Damping Factor > 200 @ 10 Hz – 400 Hz
Controls Power On/Off, Gain Pots
Cooling Internal heat sinks with forced air: Fan cooled
Amplifier Protections Protection against short circuits, no-load, on/off muting, RF interference.
LED Indicators Power, Protection, Signal, Clip
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 2 x Male XLR
Speaker Output Connector 2 x speakON
Current Draw 230 V / 115 V 4.5 A / –
Dimensions-Weight
Dimensions ( H x W x D ) 88 x 482 x 227 mm
3,5 x 19,0 x 8,9 in
Net Weight 12,7 kg ( 28,0 lb )
