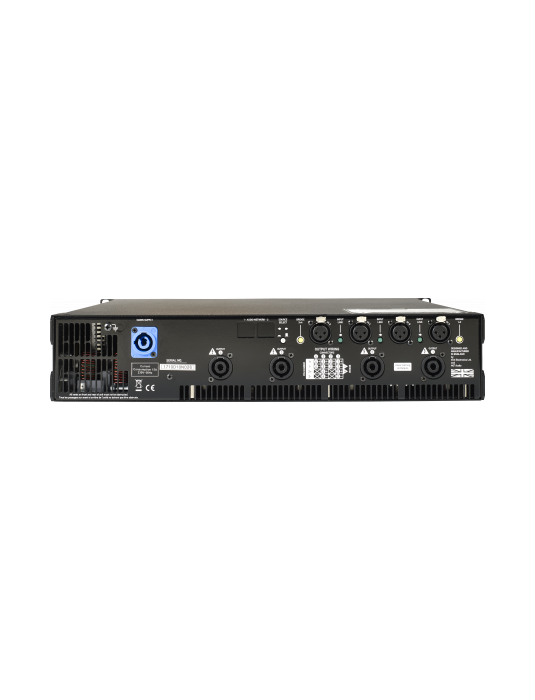

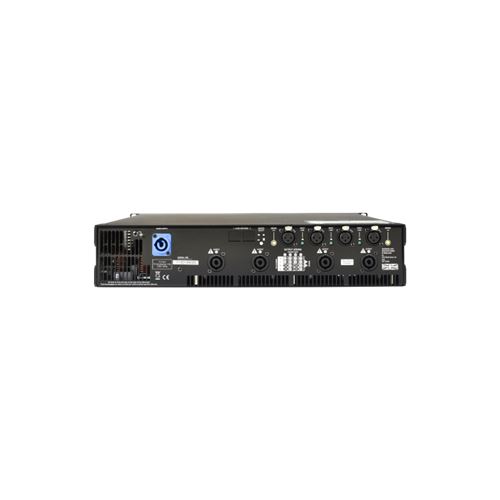

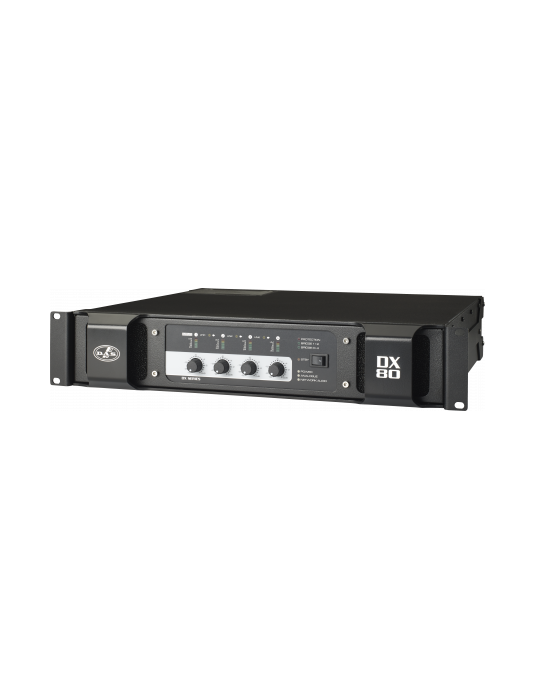

DAS DX Series Quad-Channel 1000 Watts @ 8 Ohms Amplifier (230V)

DX-80-230

DAS

Whatsapp for enquiry Email for enquiry






The DX-80 is a four channel amplifier offering 2000 W per channel at 4 ohms. It combines the impressive audio power and performance with ultra-flexible connectivity for both remote control and audio.

Accepting analogue, or optional Dante networked audio, this extra connectivity means that the DX Series non-DSP models can also be used in installation systems which already have a centralized DSP core but require the flexibility of being able to pick up multiple channels of audio from a network.


Output Power Ratings
Power 8 Ohms, Both Channels Driven 4 x 1000 W
Power 8 Ohms Bridged 4000 W
Power 4 Ohms, Both Channels Driven 4 x 2000 W
Power 4 Ohms, Bridged 4000 W
Electronics and Connectors
Amplifier Channels 4
Output Circuitry Class D
Frequency Response 0.5 dB (20 Hz – 20 kHz)
Total Harmonic Distortion < 0,2 %
Input Impeadance 20 kohms
Voltage gain 32 dB
Damping Factor > 400
Controls Power On/Off, Gain Pots
Cooling Front-to-Back
Amplifier Protections Protection Present , Short Circuit, DC Output, Temperature
LED Indicators Power On, Channel Output Level, Channel Linked, Protection, Bridged Pairs, Standby, Analogue Audio, Network Audio
Audio Signal Input Connector 4 x Female XLR
Speaker Output Connector 4 x speakON
Current Draw 230 V / 115 V 4.1 A / 8.2 A
Certification Number NRTL: NA201810857, CNEMKO: NA201810857
Dimensions-Weight
Dimensions ( H x W x D ) 88 x 485 x 425 mm
3,5 x 19,0 x 16,7 in
Net Weight 10,1 kg ( 22,2 lb )
