DAS DECO Series 30 Watts RMS 8" 2-Way Wide-Range Ceiling Speaker with Built-In Transformer

DECO-8-T

DAS

Whatsapp for enquiry Email for enquiry

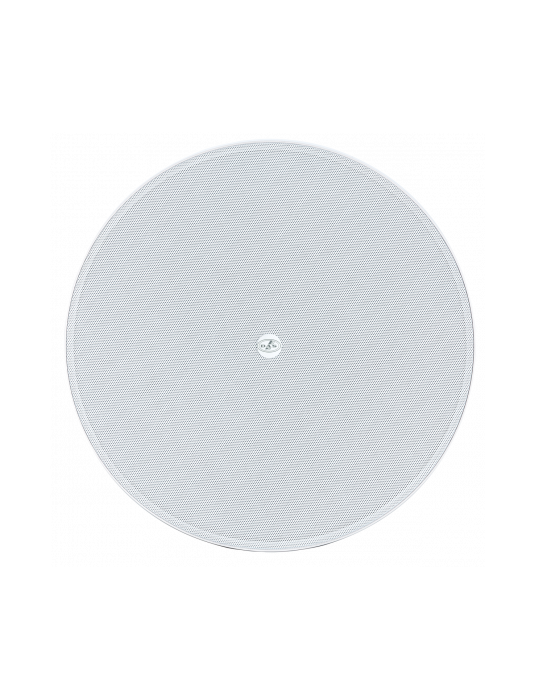

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

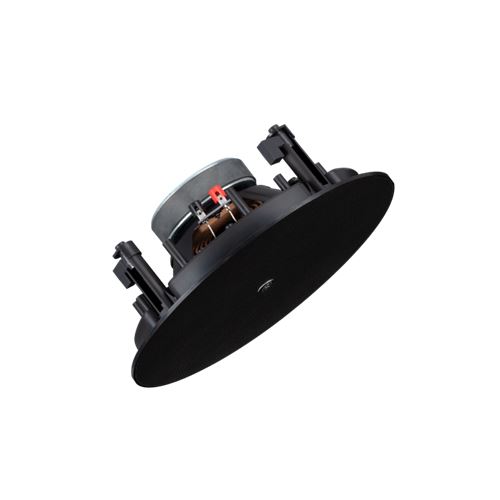

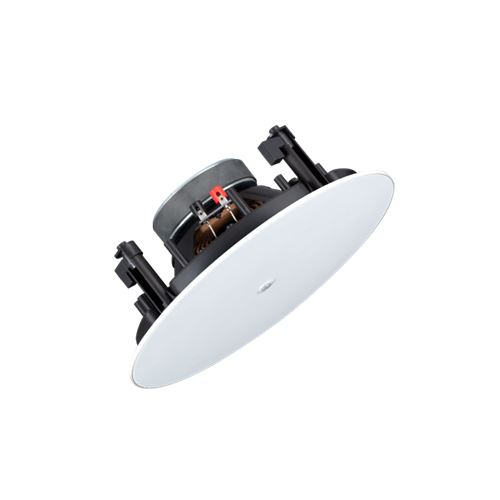

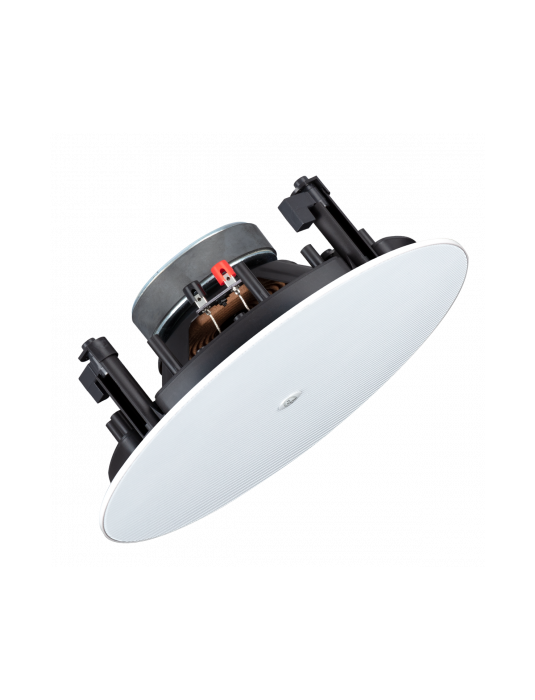

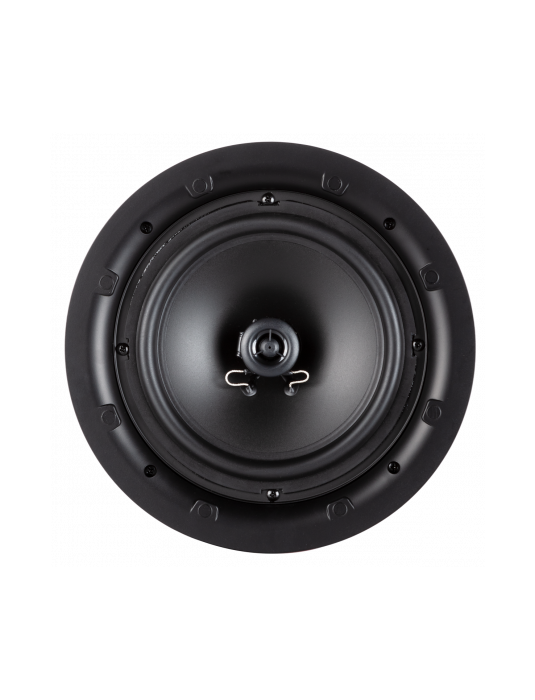

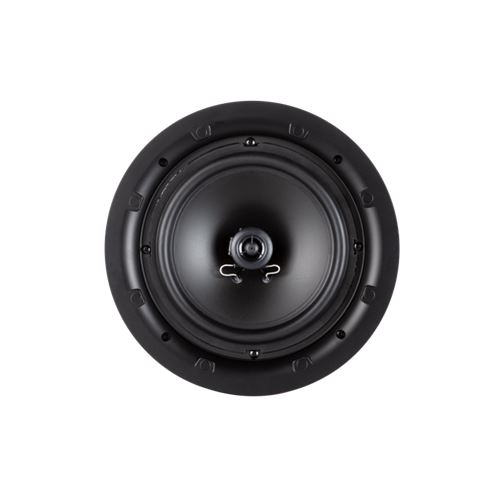

The DECO-8T is a wide-range passive two-way ceiling-mounted acoustic system featuring an 8” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 30W 100V specifically designed line transformer for high impedance.


Performance
Frequency Range (-10 dB) 50 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Nominal Impedance 8 ohms
Transformer Taps 70 V Tap1, 5 W. Tap2, 7.5 W. Tap3 10 W.
Transformer Taps 100 V Tap1, 10 W. Tap2, 20 W. Tap3 30 W.
On-axis Sensitivity 1W/1 m 90 dB SPL
Recommended Amplifier INTEGRAL-A402
INTEGRAL-A404
Connectors
Audio Input Connector Spring Terminals
Audio Output Connector Spring Terminals
Enclosure
Enclosure Geometry Round
Color White
Cut Out Diameter 250 mm (9,9 in)
Depth 115 mm (4,6 in)
Dimensions ( H x W x D ) 285 x 285 x 115 mm
11,3 x 11,3 x 4,6 in
Net Weight 1,8 kg ( 4,0 lb )
