WHARFEDALE PRO XR Series Dual Channel 200 Watts @ 8 Ohms Amplifier

XR-800

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






XR-800

2 x 300 watts
4 Ohms

  • 2 channels
  • 8 Ohm 2 x 200 Watts
  • 4 Ohm 2 x 300 Watts
  • 8 Ohm Bridged 1 x 600 Watts
  • Class AB

XR Amplifiers

Power, performance and….. price points!

The new XR series of power amps consists of 5 models. The XR3500, XR3000, XR2500, XR1500 and XR800 which deliver 1,000, 700, 500, 330 and 200 watts per channel into 8Ω respectively.

XR Series is positioned as an affordable amplification line up below the acclaimed CPD series - however practical features have not been overlooked.

All models feature XLR thru connectors, making cable management and daisy-chaining easy for installers or when used in flight cases. All models feature full circuitry protection for thermal, over current, DC, output short circuit along with power on/off muting. All models also feature ultra quiet variable speed fans.

Rear panel mode switches allow for selection between Parallel, Stereo and Bridge modes along with input sensitivity switching.

Large front air vents and steel construction aid heat dissipation to ensure the long life and reliable performance that comes with any Wharfedale Pro amplifier. Meanwhile, a huge toroidal transformer takes care of any AC power fluctuations.

XR amplifiers bring power and performance into a new price category.

MASSIVE TRANSFORMERS

XR series are built around a massive heavy-duty toroidal transformer.

This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.

PROTECTION

An XR series amplifier features comprehensive protection circuitry. This ensures that no matter what problems might exist with external cabling, AC power or loudspeakers, the amplifier will protect itself, and its surroundings.

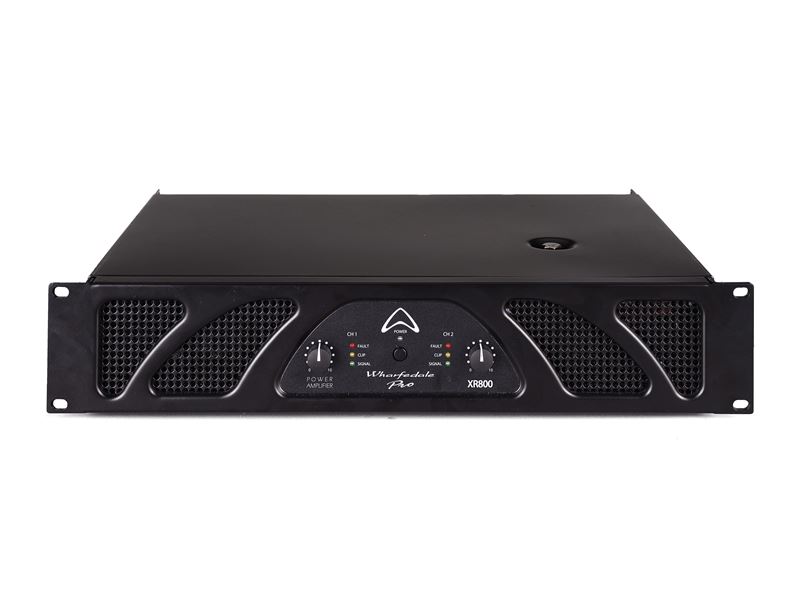

Front panel LED’s give immediate and clear feedback to the situation. Should an external fault occur, the red LED ‘Fault’ light will illuminate and the amp will go into Protection mode. A rear panel ‘Reset’ button is then available to reset the amplifier once the external fault has been diagnosed and removed.

Handy ‘Clip’ LED’s are also visible from the front panel. Even from a distance, its simple and clear to see and understand the status of the amp.

A LOOK BEHIND THE SCENES

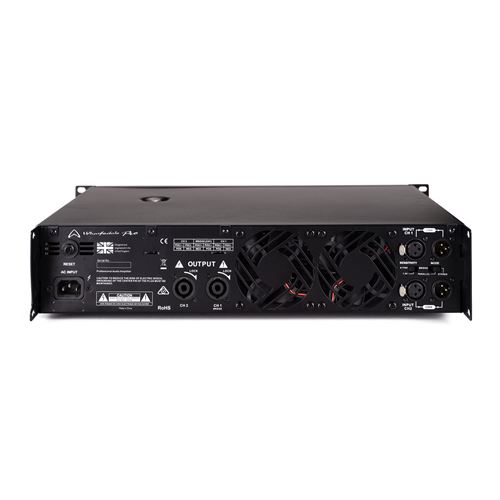

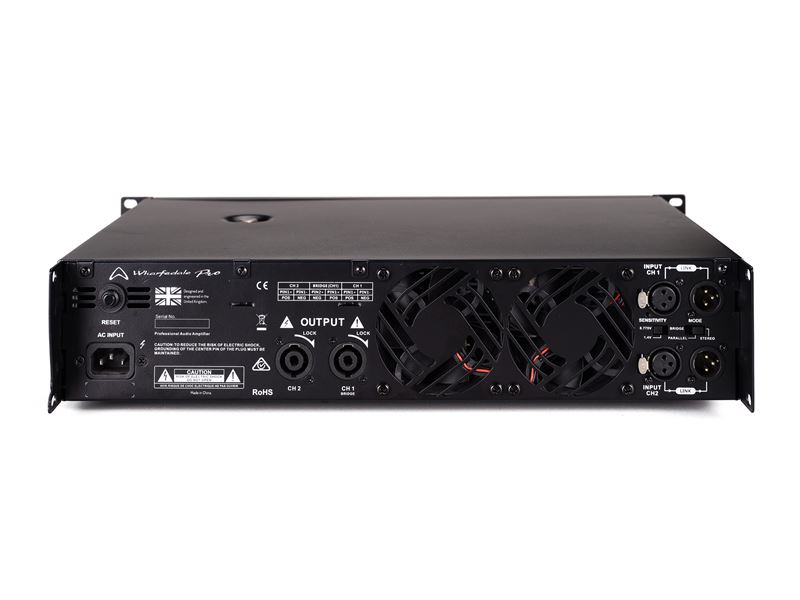

Around the back of the XR are the balanced inputs and outputs along with configuration switches.

A handy feature are the 2 x XLR link outputs which allow for easy ‘daisy chaining’ of multiple amps – removing the need for external patching or excessive cabling.

Around the back is also the input sensitivity switch selectable between 0.775v or 1.4v.

The main ‘Bridge / Stereo / Parallel’ mode switch is also on the rear. STEREO mode makes the two channels work independently. CH1 input signal goes to CH1 output and CH2 signal goes to CH2 output. BRIDGE mode makes CH1 input signal go to the BRIDGE output socket. This is controlled by using the CH1 volume control. PARALLEL mode makes CH1 input signal go to both CH1 and CH2 output sockets. The input socket of CH2 has no effect. The channel volumes can be adjusted independently.

XR SERIES

Power, performance and price points

  • 5 models of affordable pro amplification
  • Parallel | Stereo | Bridge modes
  • Switchable input sensitivity 0.775V or 1.4V
  • Huge toroidal transformers
  • Comprehensive protection circuitry
  • All steel construction
  • XLR Link outputs
  • Power choices from 200 w to 1000 w per channel into 8 Ω


Model Name XR800
Stereo Power Output : RMS
8 Ω x 2 200 w
4 Ω x 2 300 w
Bridged Mono Power Output : RMS
8 Ω 600 w
Frequency Response(+/-10 dB) 20 Hz – 20 KHz
Topology Class AB
Inputs 2 x XLR
Outputs 2 x NL4 (speakON compatible)
  2 x XLR link
Input Sensitivity & impedance
Sensitivity 0.775 V or 1.4 V
Balanced XLR input Impedance 20 KΩ
Maximum Input Level 22 dBu (9.7 Vrms)
Voltage Gain 29 dB
Slew Rate >10 V/us
Crosstalk <-75 dB
S/N >100 dB
Distortion (1 W) <0.05%
Damping Factor (8 Ω), 10 Hz – 400 Hz >200
Dimensions 482 mm x 88 mm x 325 mm
Net Weight 12.0 kg
Gross Weight 15.20 kg
