WHARFEDALE PRO MP Series Dual Channel 640 Watts @ 8 Ohms Amplifier

MP-2800

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






MP-2800

2 x 1300 watts
2 Ohm
  • 8 Ohm 2 x 640 Watts
  • 4 Ohm 2 x 950 Watts
  • 2 Ohm 2 x 1300 Watts
  • 8 Ohm Bridged 1 x 1900 Watts
  • 4 Ohm Bridged 1 x 2800 Watts

For over 13 years the Wharfedale Pro MP2800 has been used by customers around the world who stretch it to its limits.

Pushed to the limits of extreme heat, poor ventilation, shocking vibration and surviving in incredible levels of dust, and irregular AC conditions, MP2800 has proved itself as truly reliable.

Its massive toroidal transformer fills over a third of the internal casing and ensures smooth power stability in almost any AC situation.
It may not be the prettiest, it may not be the lightest, it may not be the most technologically advanced but, like a favourite hammer, its a tool to rely on.

BUILT TO LAST

The steel casing and sturdy construction are only the beginning.

Internally MP amps uses extremely reliable components and comparatively simple amplification circuitry.

This means that should something happen, MP amp is simple to repair.

STABLE DOWN TO 2 OHM

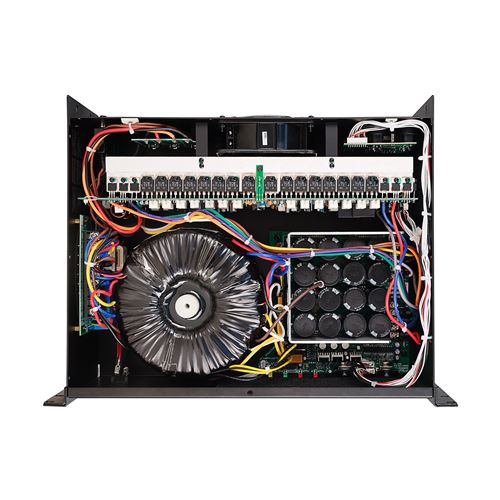

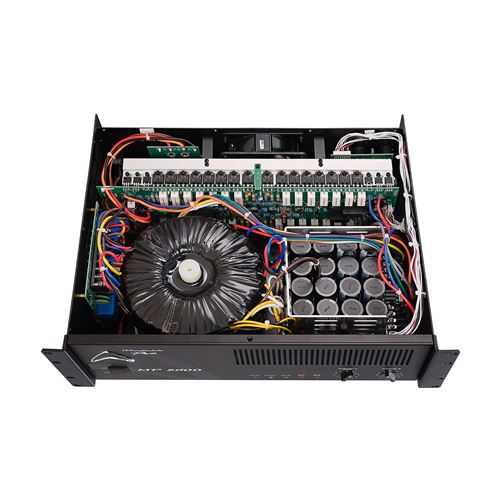

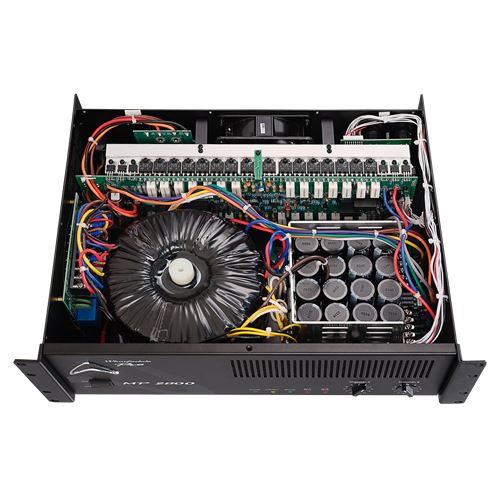

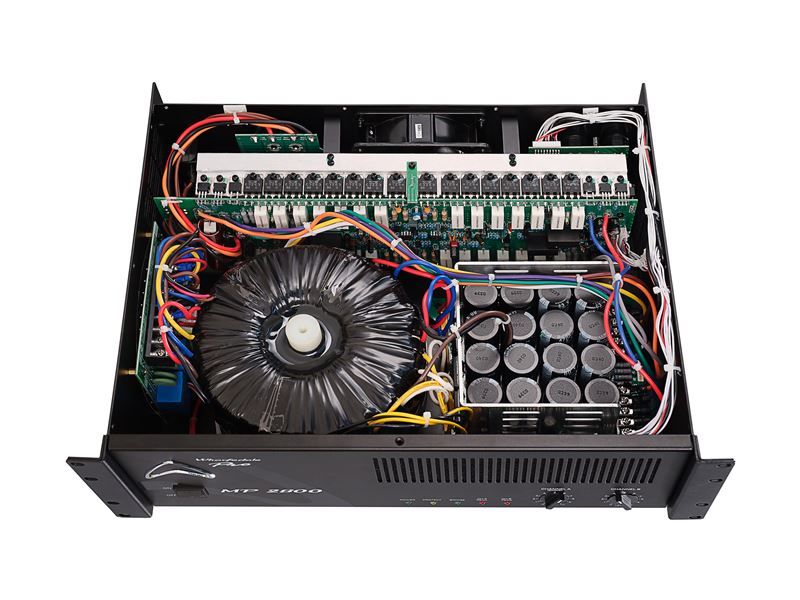

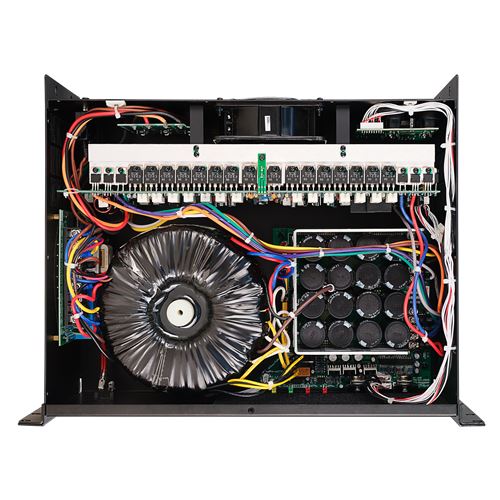

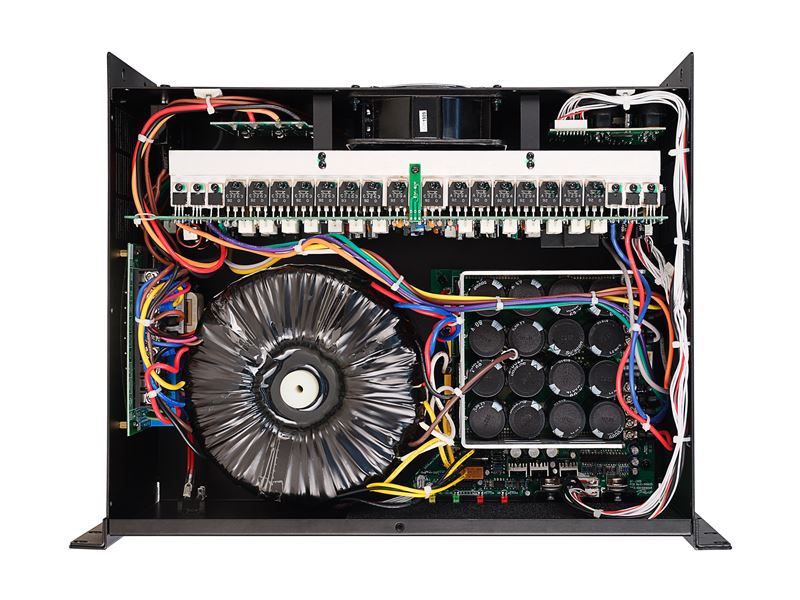

Over 1/3rd of the internal chassis is taken up with a massive toroidal transformer.

This gives an MP amp the power supply stability to function in the most extreme AC conditions.

MP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme and constant power.






  • Go down…to 2Ω
  • Drive multiple loudspeakers
  • Class AB topology  – MP1800
  • Class H topology  – MP2800
  • Suitable for touring, rental and installation

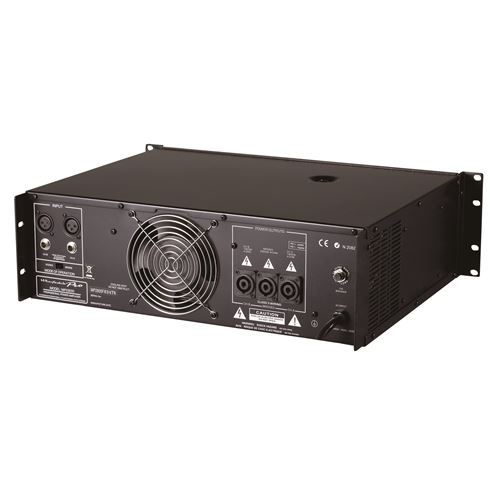

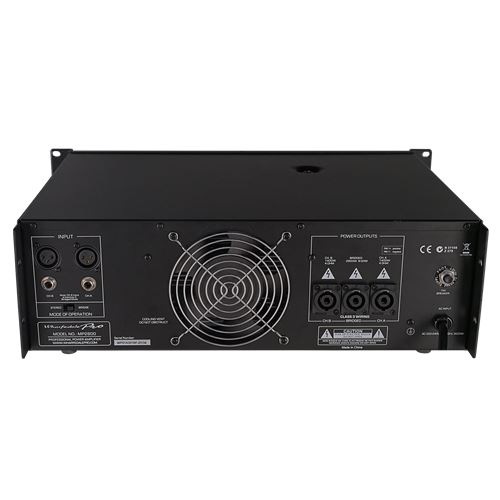

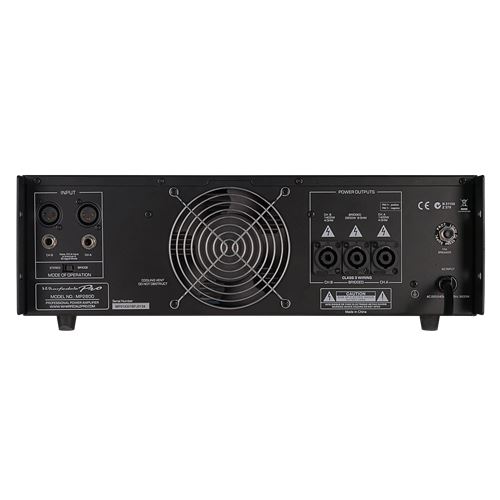

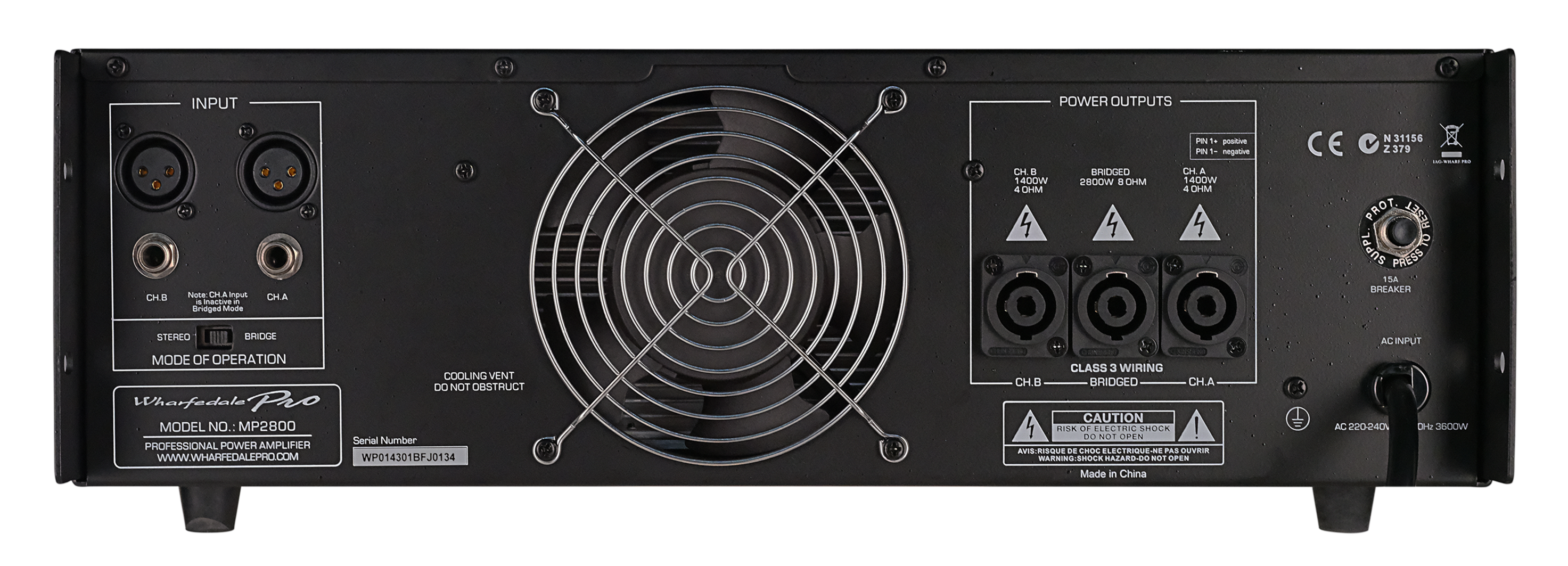

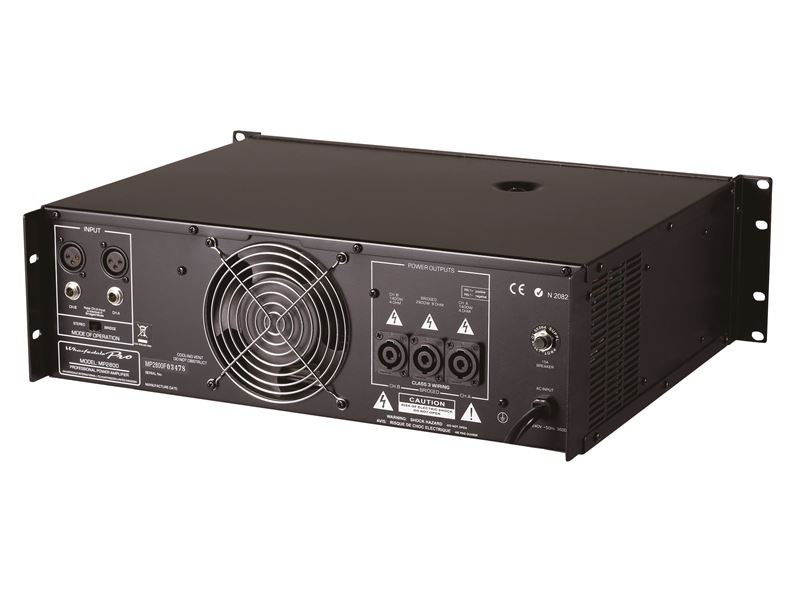

  • 2 x XLR, 2 x 6.3mm jack inputs
  • 3 x speakON compatible outputs
  • Peak and protect LEDs
  • Rear panel ground lift switch
  • All steel construction
  • Continuously variable speed fan
  • Stereo and Bridge modes


Model Name MP2800
Stereo Power Output
8 Ω x 2 640 W
4 Ω x 2 950 W
2 Ω x 2 1300 W
Bridged Mono Power Output
8 Ω 1900 W
4 Ω 2800 W
Frequency Response 5 Hz – 30 KHz
Topology Class H
Inputs 2 x XLR, 2 x 6.3 mm Jack
Outputs 3 x NL4 (speakON compatible)
Input Sensitivity & impedance
Sensitivity +0 dBu (0.775 Vrms)
Balanced XLR input 20 KΩ
Maximum Input Level 22 dBu (9.7 Vrms)
Slew Rate >40 V / us
Crosstalk <-70 dB
S/N >100 dB
Distortion (1 W) <0.015%
Damping Factor >300
Controls

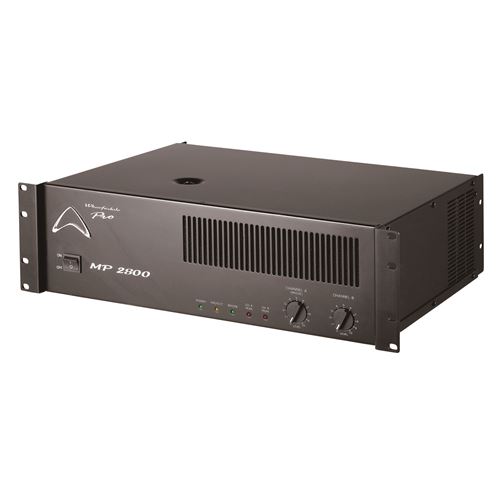

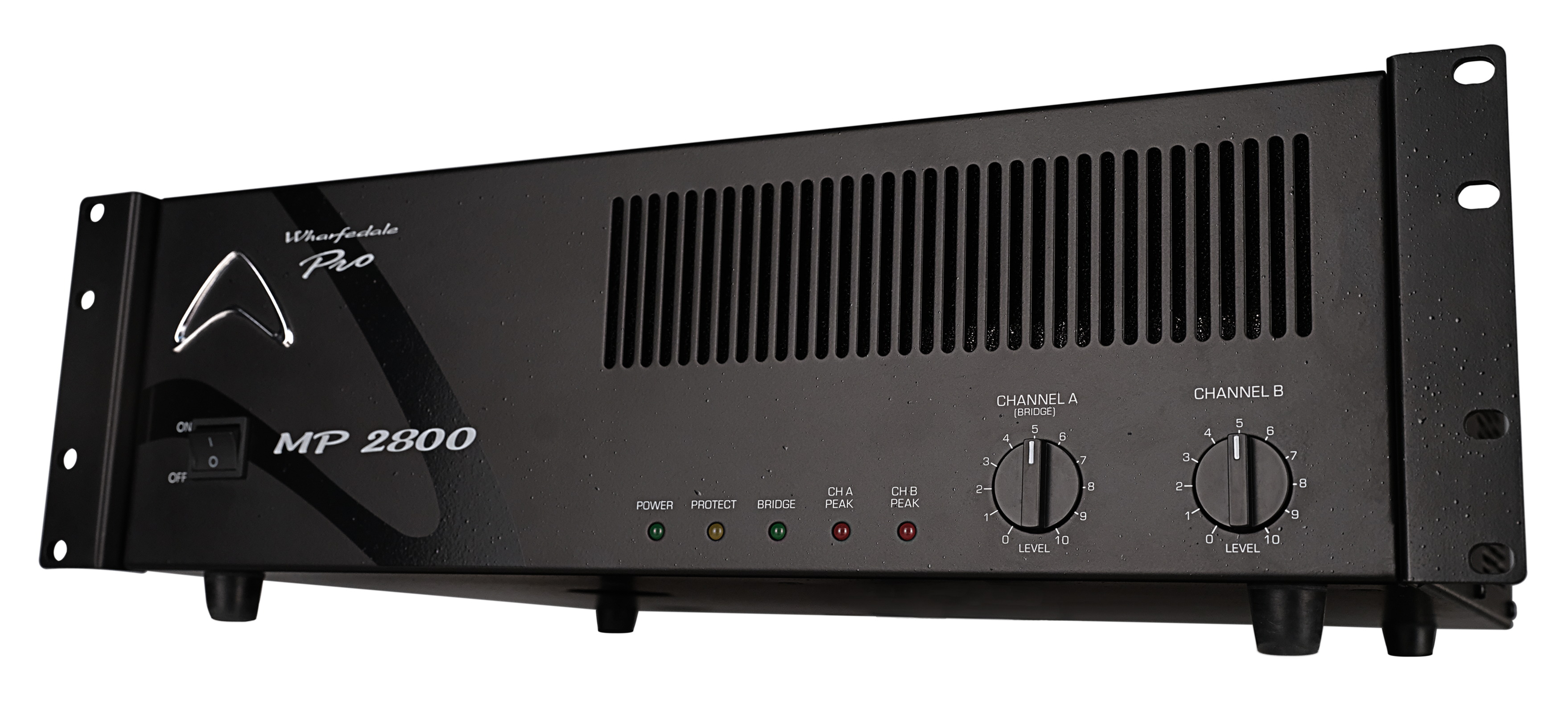

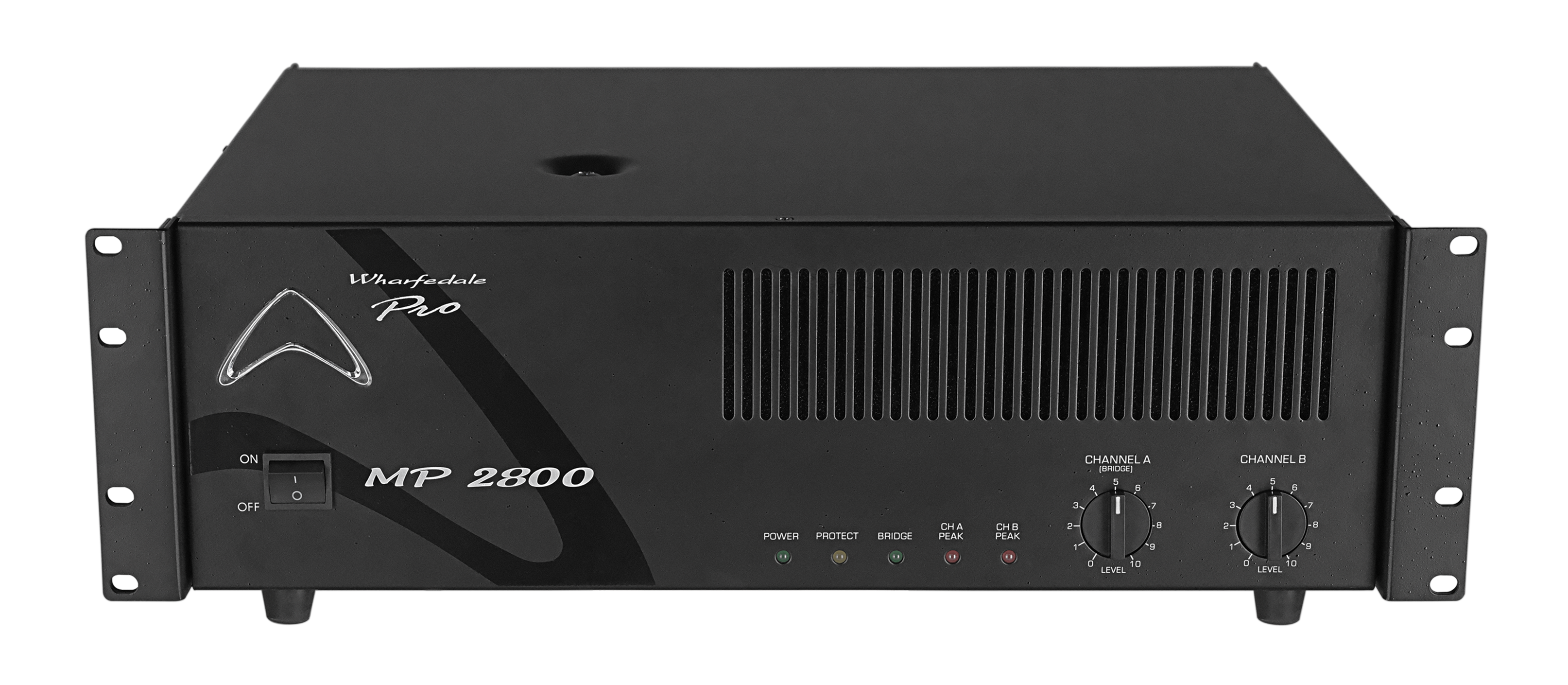

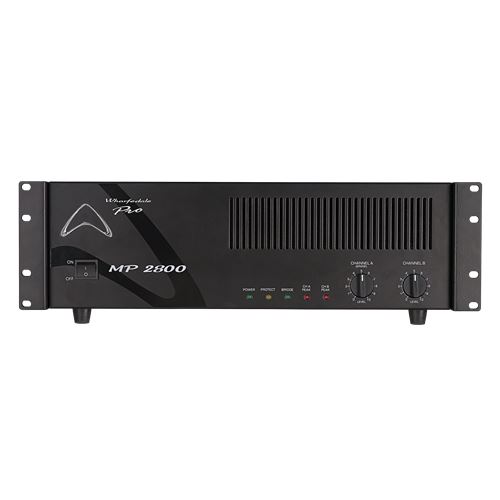

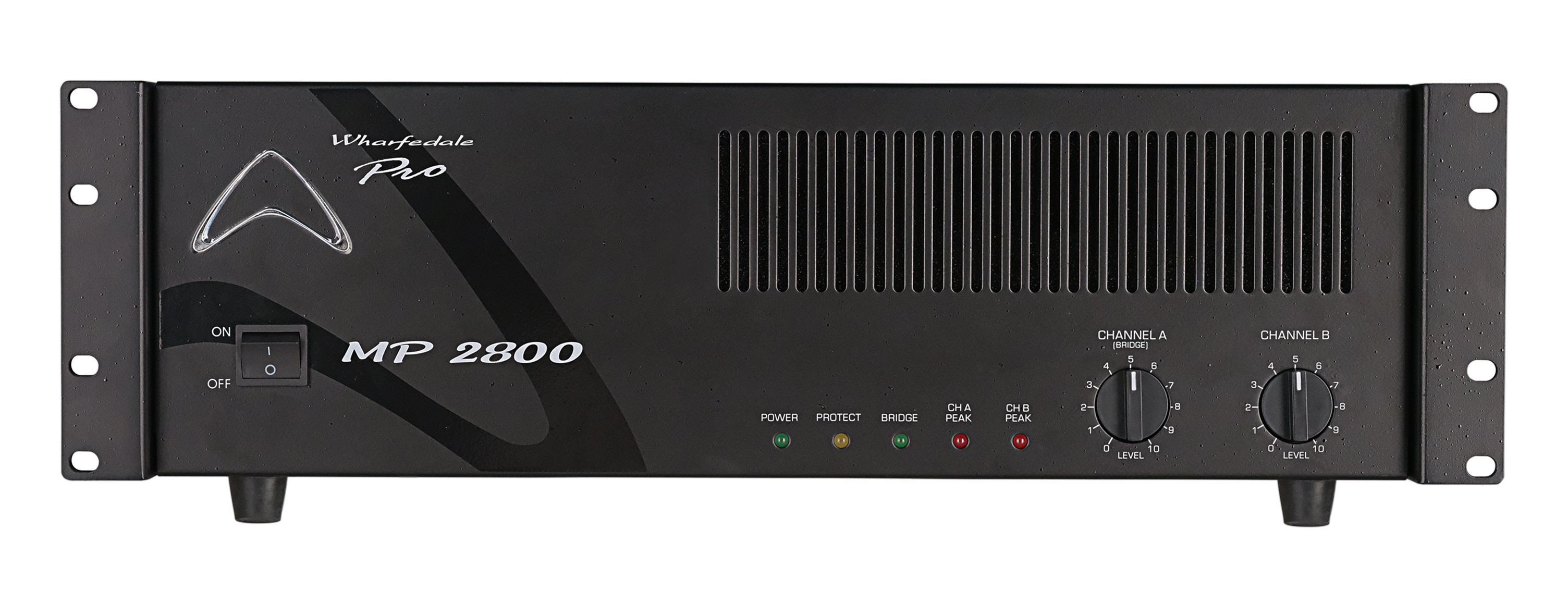

Front panel AC Switch, CH A and CH B Gain Knobs

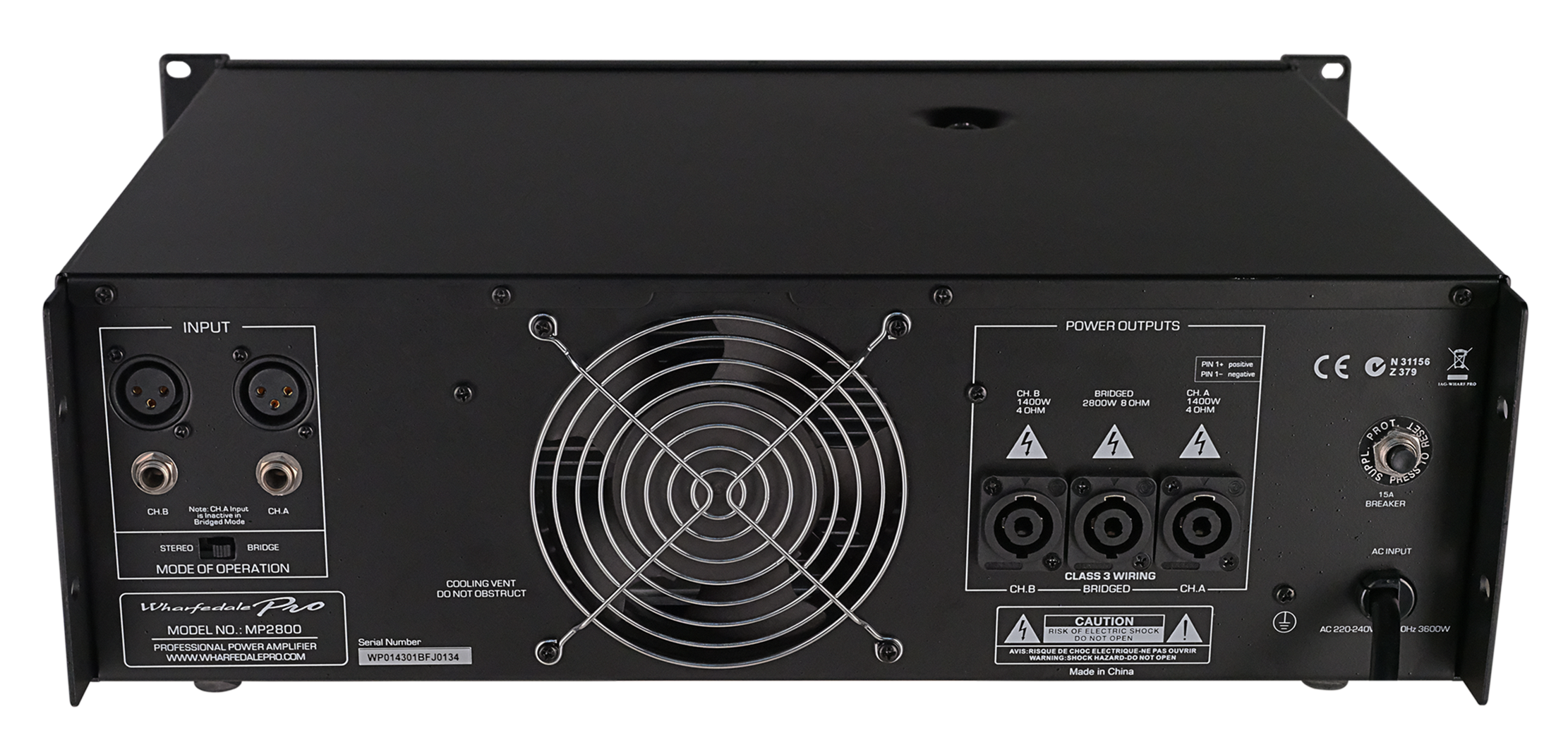

Rear panel Stereo & Bridge Mode Switch
Protections Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Indicators Power, Protect, Bridge, Peak
Cooling Variable Speed Fan
Dimensions 132 x 494 x 464 mm
Net Weight 25 kg / 55 lbs
Gross Weight 27.5 kg / 61 lbs
