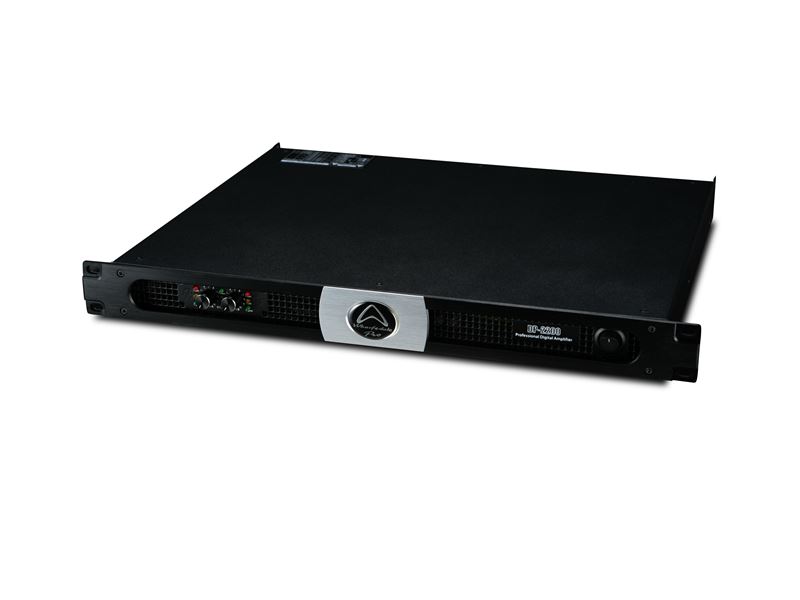

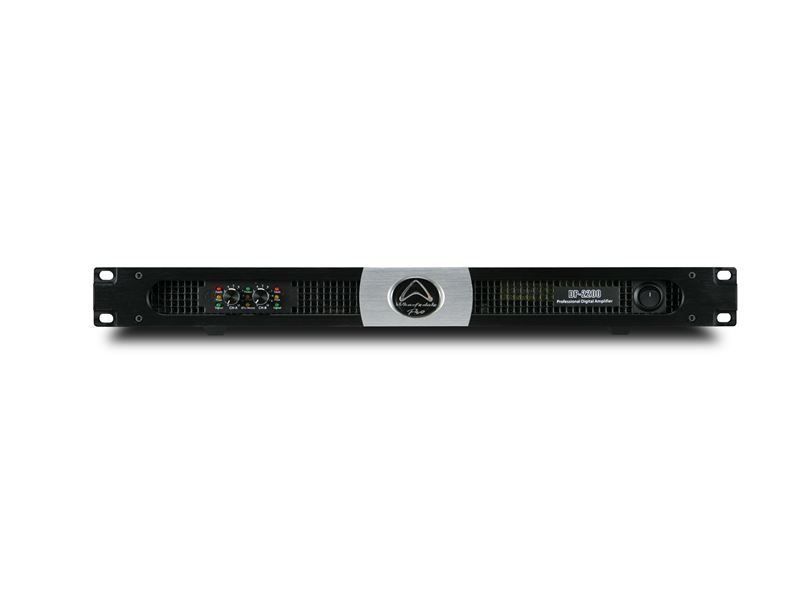

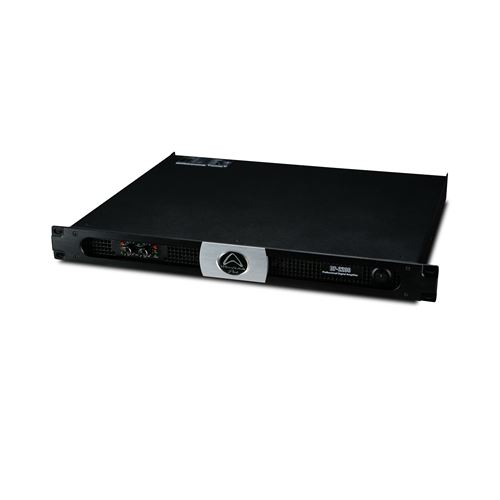

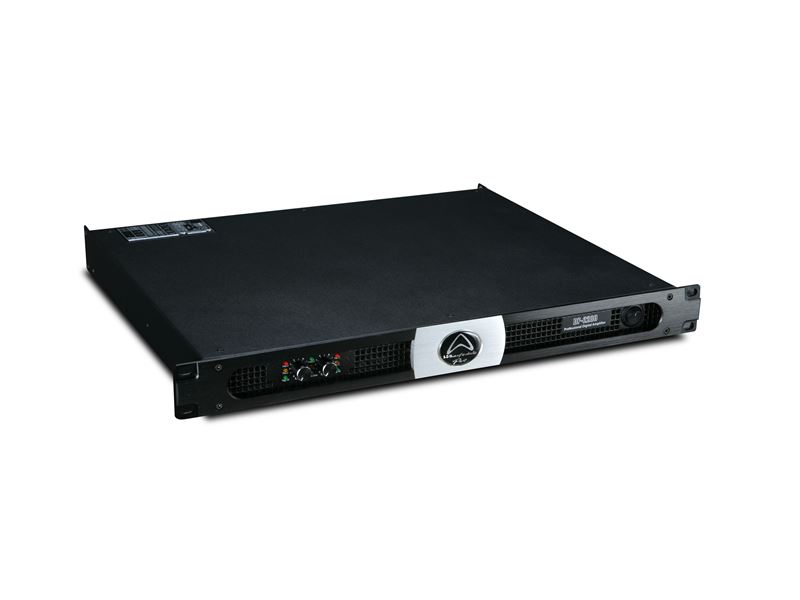

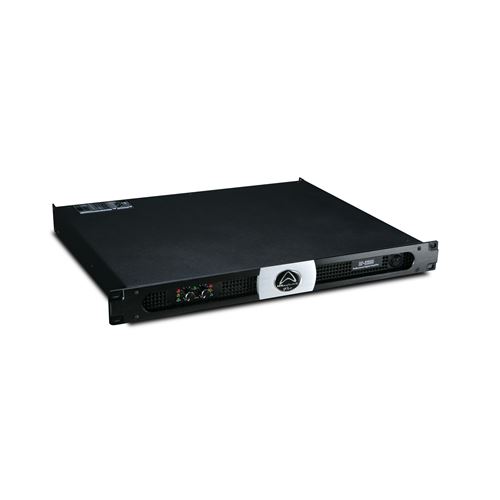

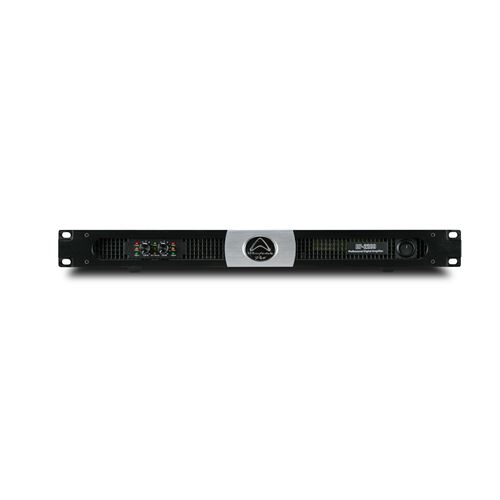

Suitable for professional live sound reinforcement or fixed installations, the stereo DP-2200 delivers extreme power from a light weight box.

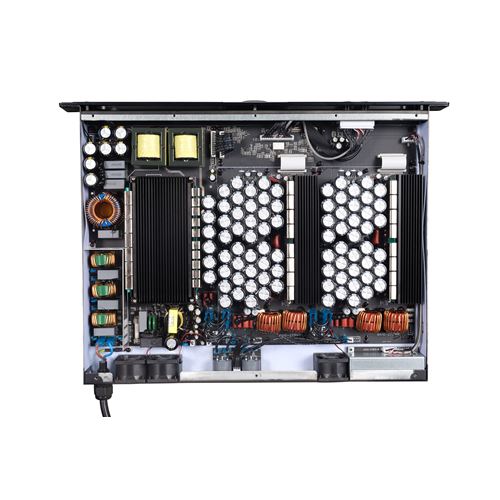

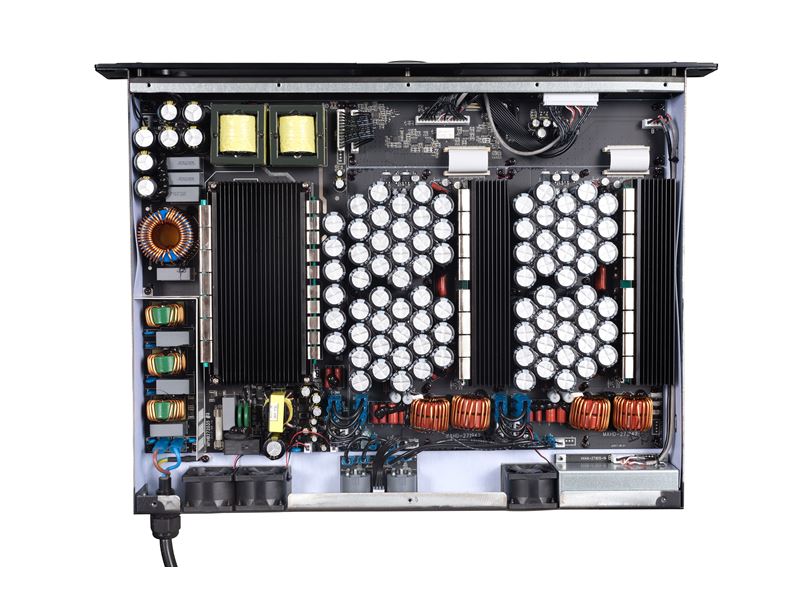

Its advanced switch mode power supply and super-efficient Class D topology delivers high power with low distortion.
Model | DP-2200 | |
Rated Power | 8 Ω / Stereo | 2 x 2000 W |
(THD=1%, | 4 Ω / Stereo | 2 x 3400 W |
Each chan works | 2 Ω / Stereo | 2 x 4760 W |
simultaneously with | ||
continuous sinusoidal | ||
1 KHz) | ||
16 Ω / Bridge | 1 x 4000 W | |
8 Ω / Bridge | 1 x 6800 W | |
4 Ω / Bridge | 1 x 9520 W | |
100 V Hi-Z | 2 x 3400 W | |
70 V Hi-Z | 2 x 2400 W | |
Output RMS voltage | 126.5 V | |
Max Input Level | 8.7 Vrms (+21 dBu)(Default Gain) | |
Default Gain | 24 dB | |
(Rated Power,1 KHz) | ||
Gain | 24 dB~42 dB | |
(Rated Power,1 KHz) | ||
THD+N | Typical value:0.05% (10% Rated Power,8 Ω) | |
Cross-Talk | ≥90 dB (20 Hz-1 KHz, below Rated Power,8 Ω) | |
Frequency Response | Typical value:+0,-0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω) | |
Input Impedance | 20 kΩ (Balanced), 10 kΩ (Unbalanced) | |
Damping Factor | ≥1000 (20 Hz-200 Hz,8 Ω) | |
SNR | ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω) | |
Main Power | 90~260 VAC,50/60 Hz | |
Protection | Power under-voltage, Amplifier output DC, Thermal, Temp Power Control, Overload Power Control | |
Size(W×H×D) mm | 483 x 45 x 376 | |
Net Weight | 9.3 kg |
