TOA 5 Channel Mic Pre-Amplifier Mixer

MX-113

TOA

Whatsapp for enquiry Email for enquiry

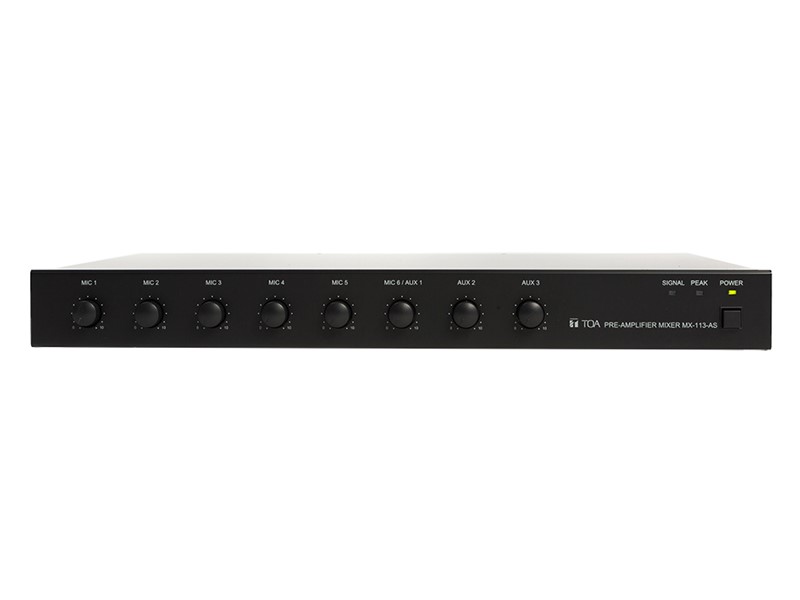

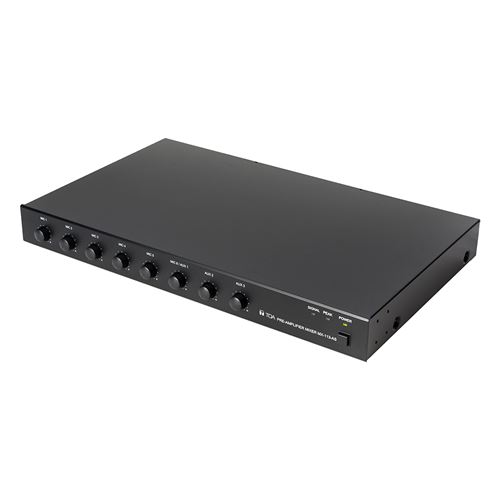

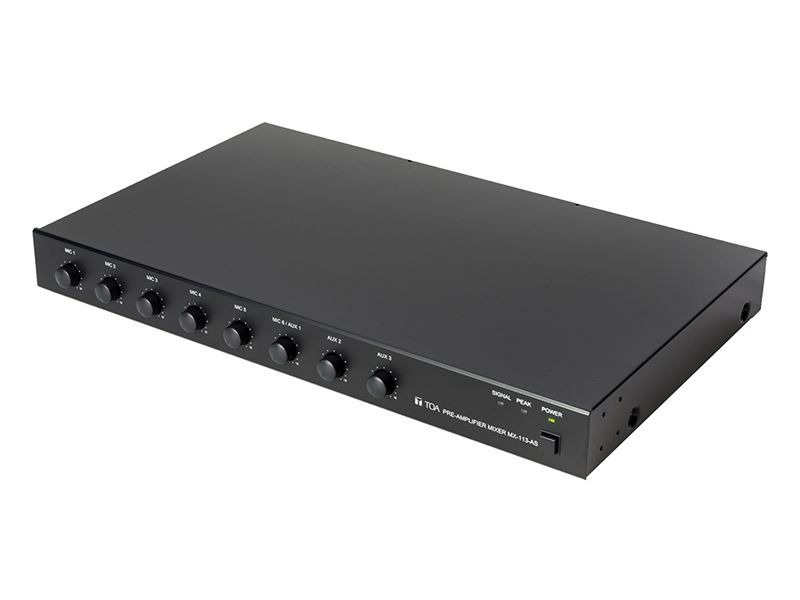

The TOA MX-113 is the sound engineer to quality output. This desk mount pre-amplifier mixer is 1U size and comes with 6 microphones inputs, 4 AUX inputs and 2 monaural output to meet to all your audio needs.


Power Source 220 - 240 V AC, 50/60 Hz
Power Consumption 4W

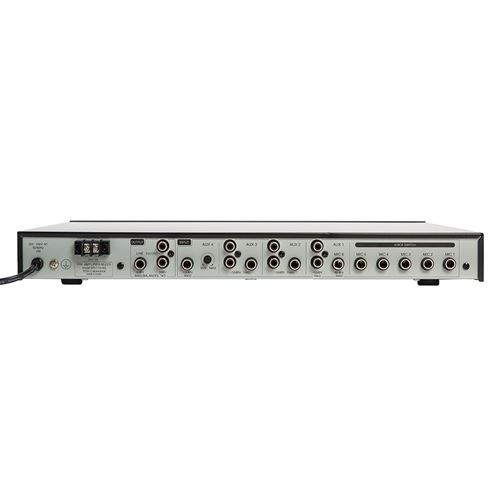

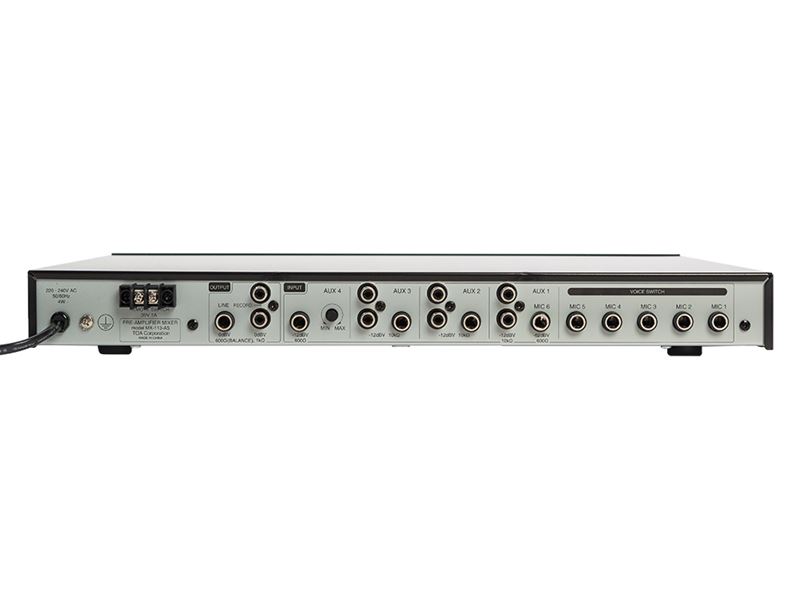

Input MIC 1-5: 600 Ω, -62 dB*, unbalanced, phone jack (voice switch OFF)
              600 Ω, -54 dB*, unbalanced, phone jack (voice switch ON)
             (option IT-450 balance transformer)
MIC 6: 600 Ω, -62 dB*, unbalanced, phone jack
AUX 1: 10 kΩ, -12 dB*, unbalanced, phone jack/RCA jack
           (Microphone 6 and AUX 1 are switch type)
AUX 2, 3: 10 kΩ, -12 dB*, unbalanced, phone jack/RCA jack
AUX 4: 600 Ω, -12 dB*, unbalanced, phone jack
           (option IT-450 balance transformer)
Output Line output 1: 600 Ω, 0 dB*, balanced, phone jack
Record out : 1 kΩ, 0 dB*, unbalanced, RCA jack
Remote Terminal Withstand voltage: DC 30V, Current: 1A, M3 Screw terminal, 6.4mm
T.H.D 1 % or less (1 kHz, rated output)
Frequency Response 30 Hz - 20 kHz
Noise Level 60 dB
Finish Front Panel: Aluminium, Black, Paint
Dimensions 420 (W) × 50 (H) × 271 (D) mm
Weight 3.2 kg
Accessory Power Cable (2 pin)
Option Rack Mount Bracket: MB-15B, Balance Transformer: IT-450
