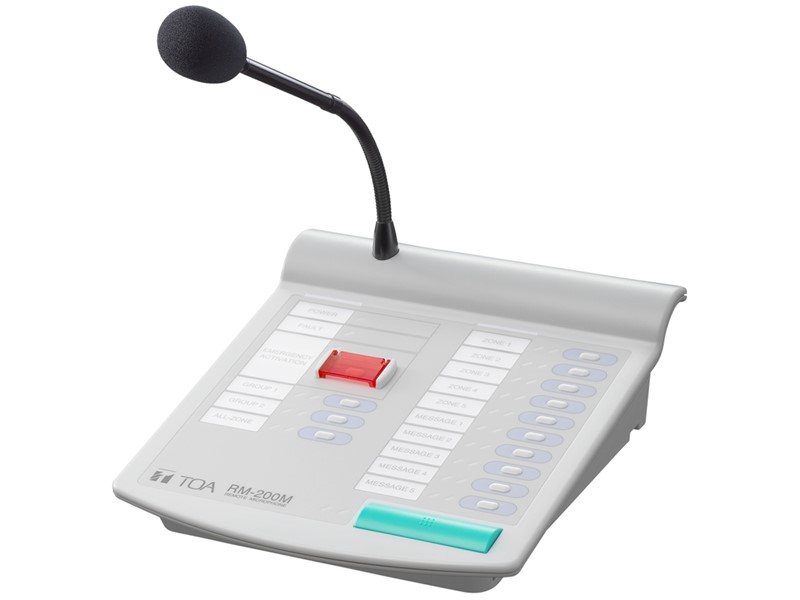

TOA Remote Microphone Controller

RM-200M

TOA

Whatsapp for enquiry Email for enquiry






The RM-200M Remote Microphone connects to the VM-3240VA, VM-3360VA, VM-2120 and VM-2240 for the purpose of making emergency(*3)/general broadcast announcements.


Power Source 24 V DC (Operating range: 14 - 28 V DC)
Power input jack: Non-polarity type
Usable power input plug(*2): Outer diameter ø5.5 mm, inner diameter ø2.1 mm, length 9.5mm
Current Consumption 100 mA or less
Audio Output 0 dB(*1), 600 Ω, balanced
Distortion 1% or less
Frequency Response 100 - 20 kHz
S/N Ratio 60 dB or more
Microphone Unidirectional electret condenser microphone
No. of Function Keys 13, Emegency key (covered), Talk key
Emergency Broadcast(*3) Activation of Emergency Broadcast (pre-recorded announcement or live
microphone announcement) by Emergency Broadcast Switch
Volume Control Microphone volume control
Connection Cable and Connector Category 5 STP cable, RJ45 connector
Finish ABS resin, blueish gray (Pantone 538 or its equivalent)
Dimensions 190 (W) × 76.5 (H) × 215 (D) mm (Gooseneck microphone excluded)
Weight 750 g
Accessory Link cable (3 m) ……1
Option Wall mounting bracket: WB-RM200
