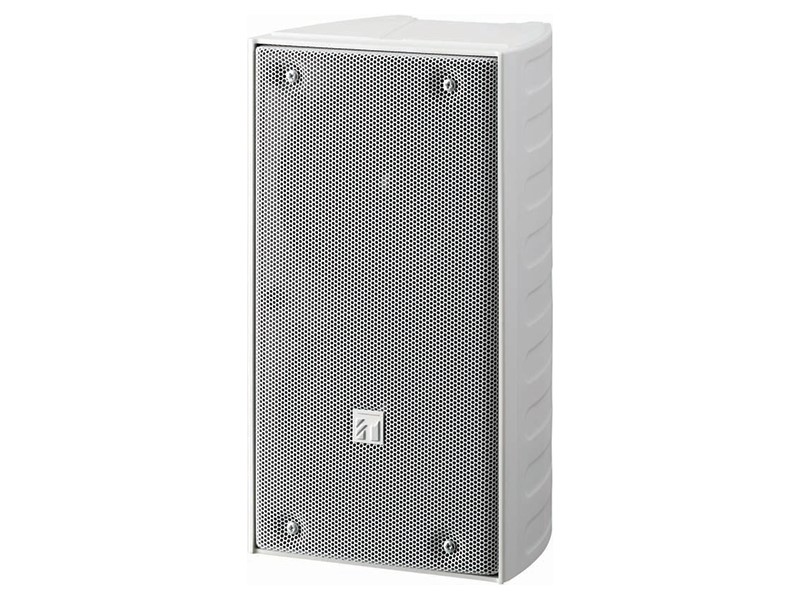

TOA TZ Series 20 Watts Column Speaker (White)

TZ-206W

TOA

Whatsapp for enquiry Email for enquiry






The TZ Series Column Speakers are highly efficient compact speakers that deliver excellent sound  performance in medium sized venues such as houses of worship, gymnasiums, auditoriums and more.


Enclosure Sealed Type
Rated Input 20 W
Rated Impedance 100 V line: 500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W), 4 kΩ (2.5 W)
70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 4 kΩ (1.3 W)
Sensitivity 90 dB (1 W, 1 m)
Frequency Response 150 Hz - 16,000 Hz
Speaker Component 10 cm cone-type × 2
Input Terminal Push-In terminal
Finish Enclosure: HIPS, white
Punched Net: Surface-tread steel plate, white, paint
Speaker Bracket: Aluminum die-cast, white, paint
Joint Bracket, Wall Bracket: Steel plate, t1.6, white, paint
Dimensions 135 (W) × 250 (H) × 128 (D) mm
Weight 1.9 kg (unit only)
Accessory Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 20) (with plain washer and spring washer) x 2, Hexagon Bolt (M8x 15) x 1
Option Speaker Stand: ST-16A
