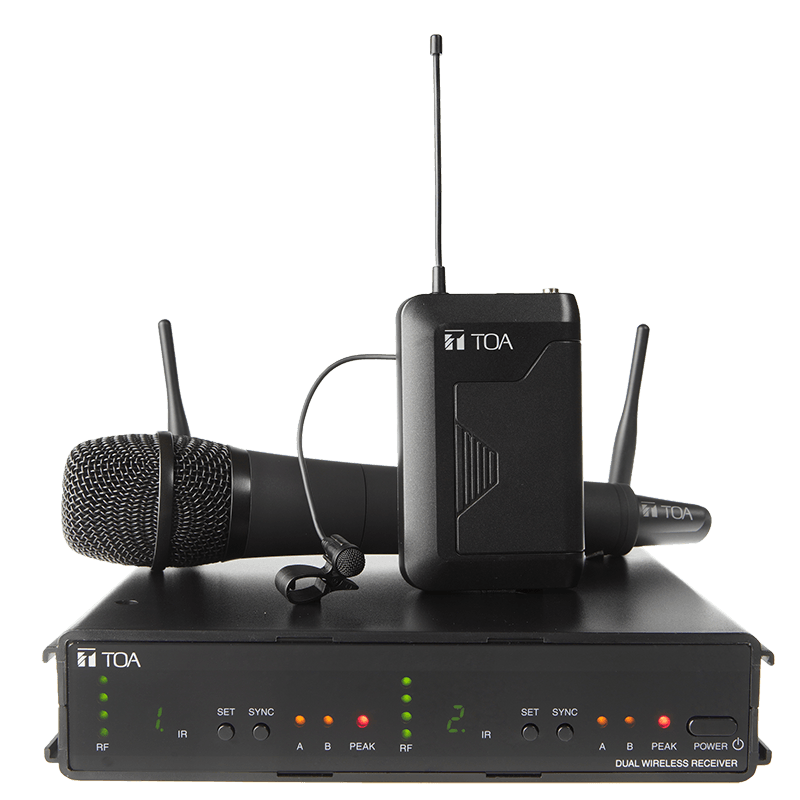

TOA Dual Channel UHF Wireless Set c/w 1 Hand Mic, 1 Bodypack & 1 Tie Clip Mic

WS-402

TOA

Whatsapp for enquiry Email for enquiry






The powerful WS-402 is a dual channel wireless microphone system set that combines exceptional performance with cost efficiency. This simple plug and play system is designed to launch you into the world of wireless. The rugged and compact frame contains a reliable multifunctioning system that is optimised for use with a range of microphones from handheld to lapels, headsets, and even musical instruments.


Product Composition Handheld wireless microphone x 1
Wireless transmitter x 1
Receiver x 1
Lavalier Microphone x 1
Frequency Range 694 - 806 MHz (*1), UHF
Channel Selectable Up to 16 channels (depending on region)
Tunable Frequencies 25 kHz Steps
Pilot Tone 32.768 kHz
Total Harmonic Distortion <1% @ 1kHz
Function IR sync, Channel scan, Battery indicator
Accessory AC adapter x 1
Microphone holder x 1
Screw driver x 1
Lavalier microphone x 1

Wireless Microphone
Microphone Element Dynamic with cardioid pattern
RF Carrier Power 10 mW
Audio Frequency Response 80 - 15,000 Hz
Audio Input Level 140 dB SPL (Maximum)
Modulation System PLL synthesizer
Battery 1 AA size alkaline battery, 1.5V
Battery Life Approx. 10 hours
Indicator Battery Status LED, 7 Segments LED
Finish Resin, coating
Dimensions Approx. 250 x 50 mm
Weight Approx. 245 g (with battery)

Wireless Transmitter
Microphone Element Back electret condenser; Omni-directional
RF Carrier Power 10 mW
Audio Frequency Response 50 - 15,000 Hz
Audio Input Level -6dBV (Maximum), mic gain 0dB
Modulation System PLL synthesizer
Battery 1 AA size alkaline battery, 1.5V
Battery Life Approx. 10 hours
Indicator Battery Status LED, 7 Segments LED
Finish Resin, coating
Dimensions 62 (W) x 100 (H) x 25 (D) mm (with clip)
Weight Approx. 85 g (with battery)

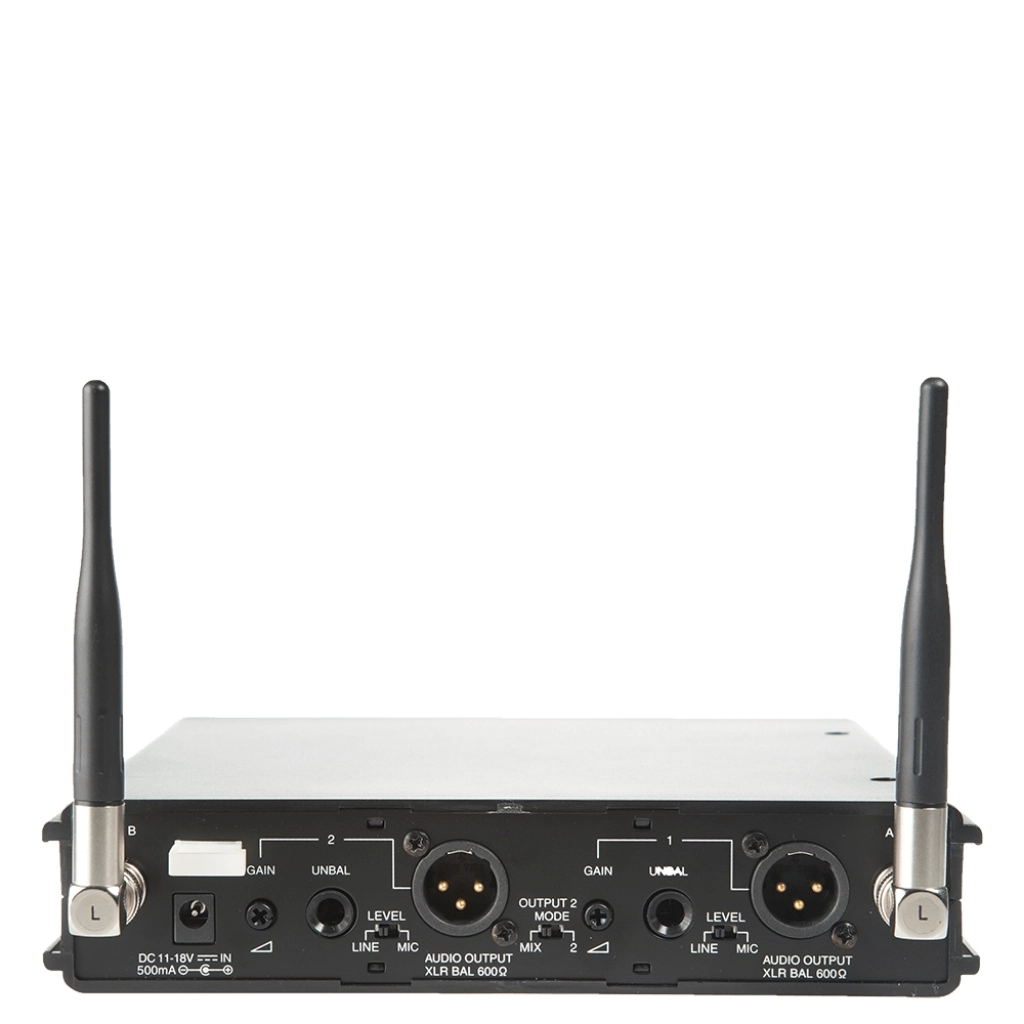

Dual Wireless Receiver
Diversity Reception AC mains (supplied AC-DC adapter must be used)
Sensitivity 10uV at 45dBA S/N
Squelch (SQ) Tone SQ, Carrier SQ and Noise SQ
Audio Frequency Response 50 - 15,000Hz
Audio Output Level (Maximum) Balanced (XLR socket): 16dBu
Unbalanced (1/4" jack socket): 10dBu
Power Supply 11-18 VDC 300mA
Dimensions 210 (W) × 44 (H) × 202 (D) mm (excluding antenna)
Weight 720 g
Option Mounting bracket kit: MB-WT3 (for rack mounting one Dual Wireless Receiver)
                                MB-WT4 (for rach mounting two Dual Wireless Receiver)

(*1)
Band Frequency
A 694 - 703 MHz, UHF
B 748 - 758 MHz, UHF
C 803 - 806 MHz, UHF
