TOA Wireless Meeting Amplifier

WA-1830M

TOA

Whatsapp for enquiry Email for enquiry

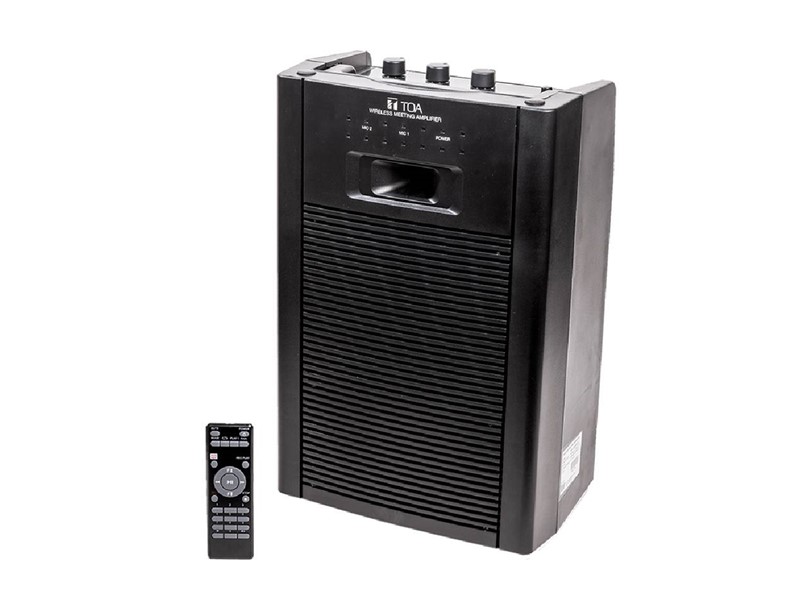

Searching around for a wireless, easy-to-setup yet compact and mobile meeting amplifier? The WA-1830 has exactly the what you are looking for.


The WA-1830 is a 30W rated output portable wireless meeting amplifier that can operate with up to 2 optional wireless tuner modules (WTU-4800) of UHF ultra band and any TOA 5000 Series microphones. The remote controller gives you the convenience to control the MP3 player and FM radio from where you are standing.


Power Source 230 V AC, 50/60 Hz; DC: 12V/2.3 Ah
Power Consumption AC: 55 W (rated output)
Rated Output AC: 30 W (40W max. including external speaker output); DC: 10 W
Applicable Tuner Unit WTU-4800 (Optional)
Battery Life Approx. 5 hours continuous music
Battery Charging Time 12 hours, 12V/2.3 Ah x 1 pcs Lead Acid Battery (Battery not included)
Frequency Response 50 Hz - 15 kHz, ±3 dB
Distortion Under 5 % (rated output)
Input Wired mic: -45 dB*, 600Ω, Unbalanced, 6.3 mm phone jack External Input: -15 dB*, 10kΩ, Unbalanced, RCA jack
Output External speaker: 8 - 16Ω / over 20 W of rated input
External Output: 0 dB*, 1 kΩ, Unbalanced, 6.3 mm phone jack
Other Features Internal speaker ON/OFF switch: Enables or Disables the internal speaker
S/N Ratio Over 60 dB (Rated output)
Antenna Internal antenna (PCB Antenna)
Internal Speaker 2-way speaker system: 20cm full-range speaker and tweeter
MP3 Player - Extension Type file is: MP3, WMA, WAV, AAC, FLAC
- Max. supported storage size of the medium (stick): 32 GB (FAT16/FAT32)
- Source: USB, SD/MMC, BLUETOOTH, FM, AUX REC
- Signal from input can be recorded to SD/USB in MP3 file format
- We do not guarantee that it supports all kinds of USB/SD
Operating Temperature -10 oC to +50 oC
Finish ABS Resin, Black
Dimensions 298 (W) x 460 (H) x 200 (D) mm
Weight 5.3 kg
Accessory Power Cord (YA-301) x 1, Dust Cover x 1, Remote x 1, Screw Driver x 1, Remote Controller x 1
