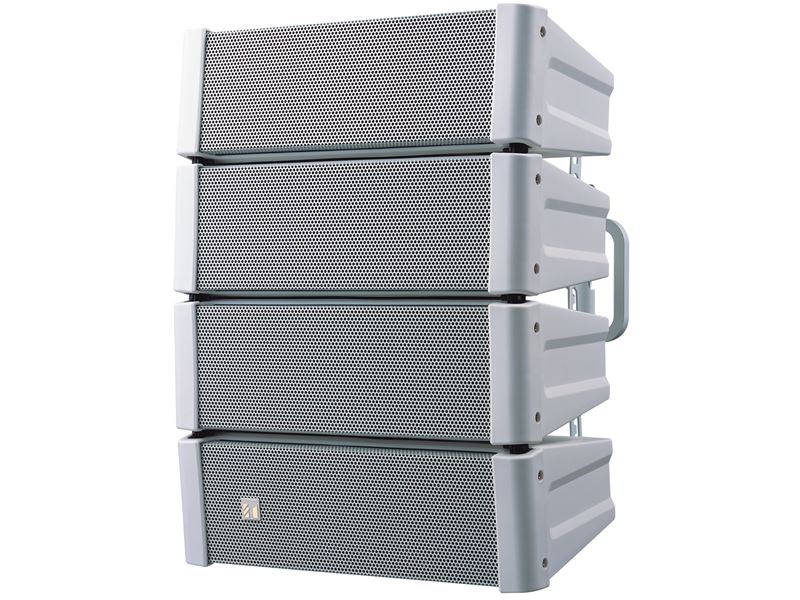

TOA HX Series 600Watts RMS Compact Line Array Speaker (White)

HX-5W

TOA

Whatsapp for enquiry Email for enquiry






The HX-5W is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5W is designed for indoor use.



Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 200 W, Continuous program: 600 W
Rated Impedance 8 Ω
Sensitivity (1 W, 1 m) 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode)
Frequency Response 70 Hz - 20 kHz (-10 dB) (60%%d mode), 75 Hz - 20 kHz (-10 dB) (45%%d mod]e),
80 Hz - 20 kHz (-10 dB) (30%%d mode), 85 Hz - 20 kHz (-10 dB) (15%%d mode)
Crossover Frequency 4 kHz
Directivity Angle Horizontal: 100゜ (2 kHz or more)
Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more),
15゜ (3.2 kHz or more) variable

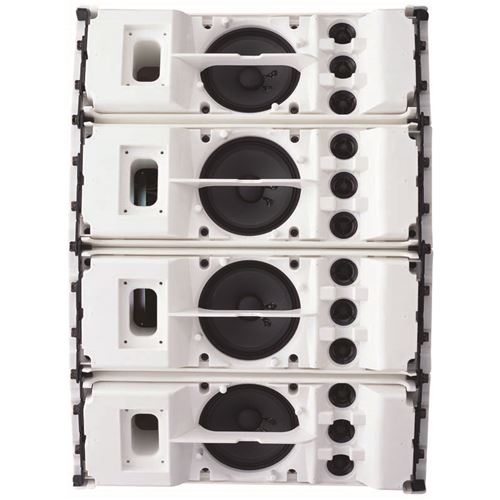

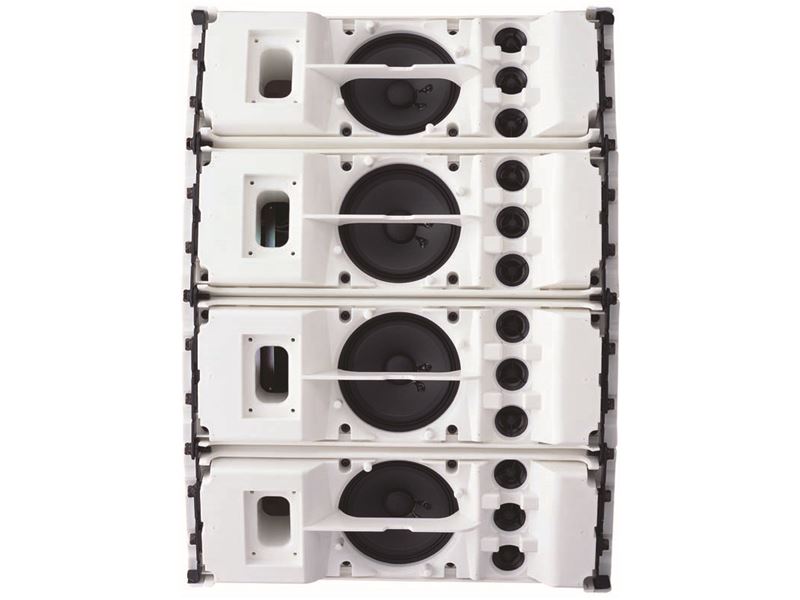

Speaker Component Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12
Input Terminal Speakon NL4MP × 2 and M4 screw terminal
Finish Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white
Dimensions 408 (W) × 546 (H) × 342 (D) mm
Weight 16 kg
Accessory Hanging bracket …2, Hex. wrench …1
Option Matching transformer: MT-200
Speaker mounting bracket: HY-PF1W, HY-CW1W, HY-WM1W, HY-WM2W, HY-CN1W
Speaker stand adapter: HY-ST1
