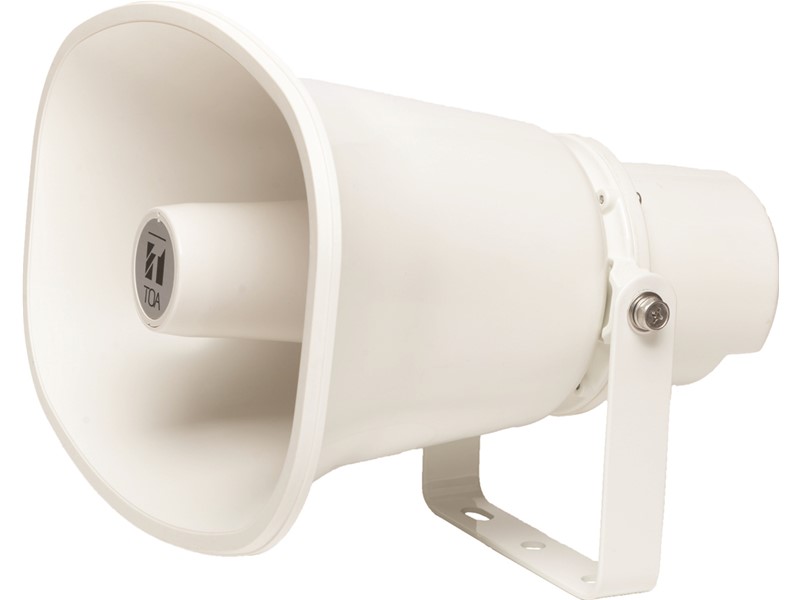

20Watts Powered Horn Speaker

SC-P620

TOA

Whatsapp for enquiry Email for enquiry






The SC-P620 is a highly intelligible and compact horn speaker with a built-in 20W digital power amplifier, that provides public address announcement and remote paging via network video surveillance applications. This powered horn speaker can operate at extreme temperature. It comes with powder-coated finish and stainless steel screws to ensure its weatherproof capability. Ideal choice for both indoor and outdoor application at restricted facilities, train stations, airports and many more.


Power Source 12V DC, 2A (DC Socket “+” Type A: 5.5 x 2.1mm)
Power Consumption 15W (1.25A) at Rated output
25W (2.10A) at Maximum output
Input 0 dB*, 10kΩ, Unbalanced (RCA plug)
Signal Gain 8, 16, 24, 32dB (Factory pre-set to 16dB)
Volume Adjustment Internal volume control (Factory pre-set to max. position)
Sound Pressure Level 113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) Max. SPL (above 120dB)
Frequency Response 250 Hz - 10,000 Hz
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Dust/Water Protection IP65
Finish Horn Flare: HIPS resin, White (RAL 9010 equivalent)
Reflector Horn and Case: ABS resin, White (RAL 9010 equivalent)
Bracket, screws and bolts: Stainless steel
Cable Cord Length: 2m Flying Lead (RCA plug) & DC socket ("+")
Dimensions 292 (W) × 230 (H) × 280 (D) mm
Weight Approx. 1.8 kg
Option AD-5000-2 (LTE24E-S2-1) AC Adapter
